Automatic Four Side Sealing Packing Machine With Double Channel

Application:

High-speed packaging machine with four sides and double channel specially designed for different industries that require four-side sealed bags. Ideal for everyday items and medical equipment that offer an exact seal and a steady performance of between 80 to 100 bags per minute.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

Our Dual-Channel 4 Side Seal Packing Machine is an automated packaging solution tailored to modern high-speed production lines. With its revolutionary dual-channel system enabling it to process two product lines simultaneously and significantly increasing efficiency and output - making this machine the ideal choice for businesses seeking unsurpassed productivity without compromising quality.

* Food: Perfect for sealing gummy candy bars, beef jerky, seaweed, pet treats, etc.

* Daily Product: Ideal for packaging warm packs, facial masks, sanitary napkins, aromatherapy cards, etc.

* Medical Supplies: Suitable for packing masks, fever patches, silicone dressings, medical tapes, and gauze, etc.

Machine Details:

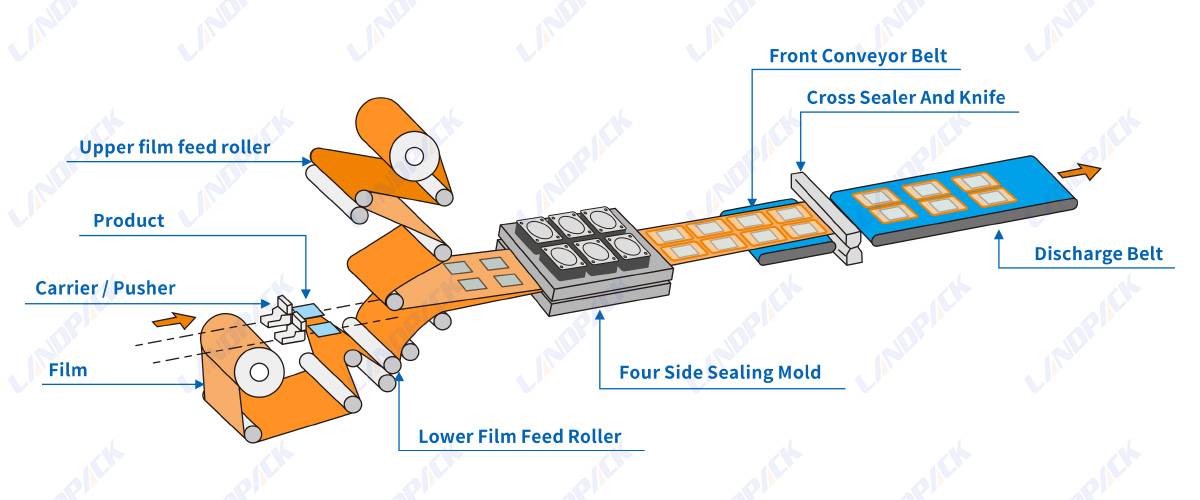

Working Process

1. Film Feeding

2. Product Loading

3. Four-Side Sealing

4. Cross Sealing & Cutting

5. Product Discharge

Specification

Model	LPF-400
Film width	Max.380mm
Bag length	Max.360mm
Bag width	Max.190mm
Product packaging thickness	1-10mm
Machine noise	Under 80db(A)
Packing material	ET+OPP, BOPP, CPP, PET+AL, and other one-layer or double-layer heated complex films.
Packing speed	80-100 bags/min
Machine size	L5000W1200H1520mm
Machine Gross Weight	About 1600kg
Power voltage	AC220V, 50HZ
Transmission Power	4.2kw
Heating Power	3.2kw
Air Pressure	0.5-0.7Mpa

Features:

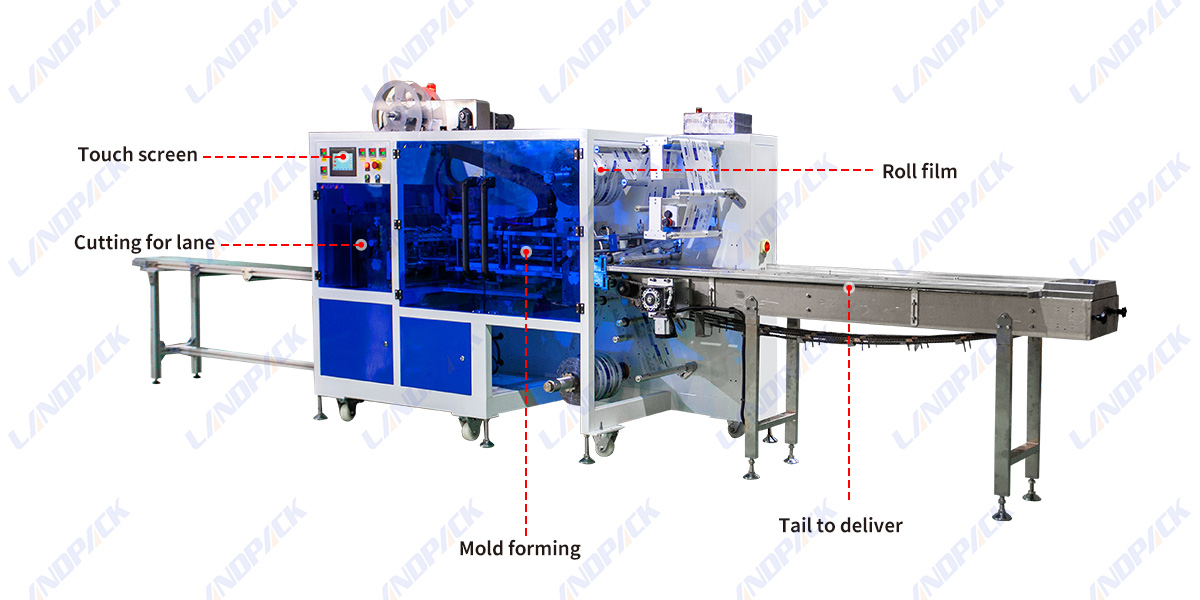

Machine Image	Benefits
	Touch Screen Control Panel * A user-friendly interface that allows for rapid adjustment of parameters and monitoring in real-time. * Allows one-click switching between recipes for various products.
	Film Unwinding System * Two separate films with tension control which can be automated for continuous operation. * It is accurate for aligning packaging material so as to make sure there aren't deviations.
	4 Side Sealing Mold * Mold design that can be customized to ensure airtight seals across all 4 sides. * It can be adjusted to different dimensions and shapes, with a quick replacement.
	Product Feeding System (Dual Channels * Two channels that are synchronized improve the output. * Can be used for augers, vibration feeders or manual loading for a greater degree of flexibility.
	Cutting Unit * Blades that are sharp and durable for precise and clean bag separation * Adjustable cutting length that can fit different bag sizes
	Lane Separation Mechanism * Splits the film into two lanes following the formation, allowing parallel packaging. * Make sure there is no cross-contamination between channels.
	Drive System * High-precision servo motors provide easy operation and minimal maintenance. * It can be adjusted to speeds of up to 100 bags/min for each channel.
	Stainless Steel Frame * Blades that are sharp and durable for precise and clean bag separation * Adjustable cutting length that can fit different bag sizes
