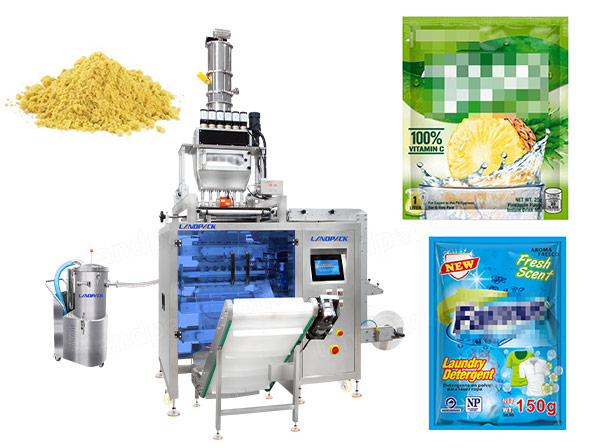

Multi-lane Powder 4 Side Seal Packaging Machine

Application:

High-speed multi-lane powder 4 side seal packaging machine designed for precise dosing and efficient packaging. Operating at 20-40 bags/min/lane, it ensures consistent quality for small powder sachets in various industries.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

Material & Package:

Our multi-lane sachet powder packing machine is specifically designed to pack a wide range of powders into 4 side seal sachet. This will ensure cleanliness, accuracy and efficacy.

* Food & Beverage Powders

Milk powder, whey protein coffee powder, powders to season (spices, chili powder, curry powder, pepper powder)

* Household / Cleaning / Chemical Powders

Powders for soap and talcum powders. Powdered scents (laundry fragrance powder, the powder for air fresheners)

* Nutraceutical / Pharmaceutical / Cosmetic Powders

Vitamin powders and botanicals (green tea powder, matcha powder, as well as herb powder), pharmaceutical powders (oral supplement probiotic premix and premixes for oral supplements), powders for cosmetics (facial mask powder and skin powder, cleansing powder)

Machine Details:

Working Process

This is multi lane 4 side seal packaging machine for powder products. Here's how it works step-by-step:

1. Automatic Film Pulling

2. Date Printing
3. Film Guiding & Pulling

4. Powder Filling

5. Hot-air Longitudinal Sealing

6. Vertical Side Sealing

7. Horizontal Sealing

8. Cutting

9. Sachet Bags Discharge
4 side seal packaging machine

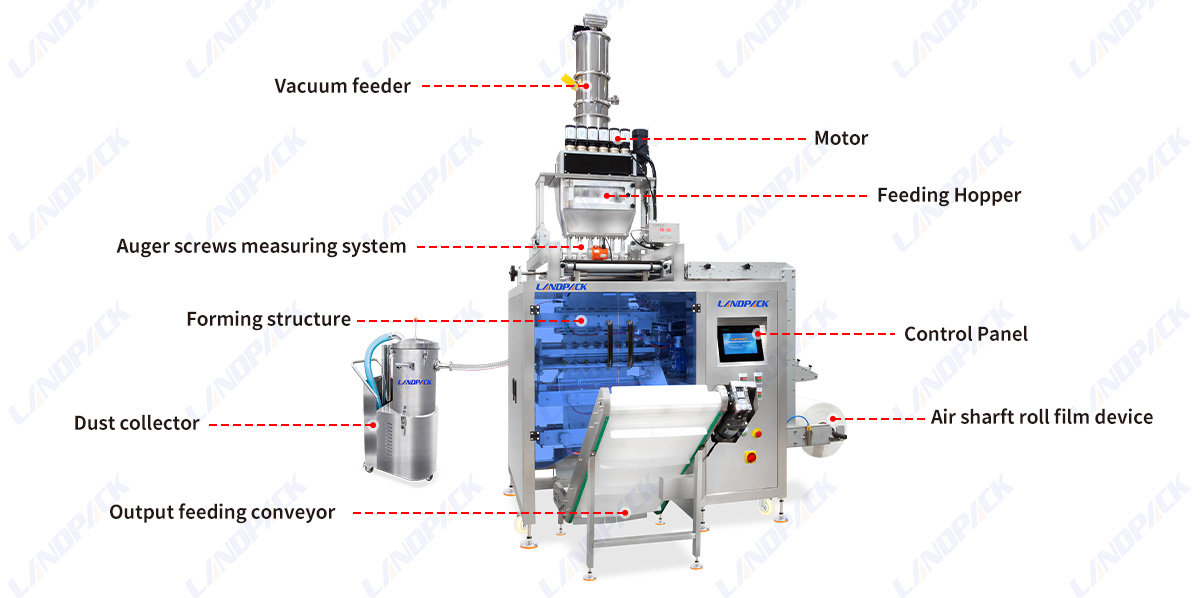

Key Component

Specification

Model	LDFS-480D	LDFS-720D	LDFS-960D	LDFS-1200D
Track Number	4-6 Track	4-8 Track	4-10 Track	4-12 Track
Filling Method	Auger filling by servo motor
Capacity	20-40 bags/min/lane
Sachet Size	L: 45-120mm; W: 50-60mm	L: 45-120mm; W: 50-90mm	L: 45-120mm; W: 50-120mm	L: 45-120mm; W: 50-150mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm	Max.1200mm; 0.07-0.1mm
Sealing Type	4 side sealing
Cutting Type	1. Straight cutting, 2. Zig-zag cutting, 3. Continous cutting
Air&Power	0.8MPA, 0.8m³/min; 2.8kw	0.8MPA, 0.8m³/min, 4.1kw	0.8MPA, 0.8m³/min, 5.5kw	0.8MPA, 0.8m³/min, 6.5kw

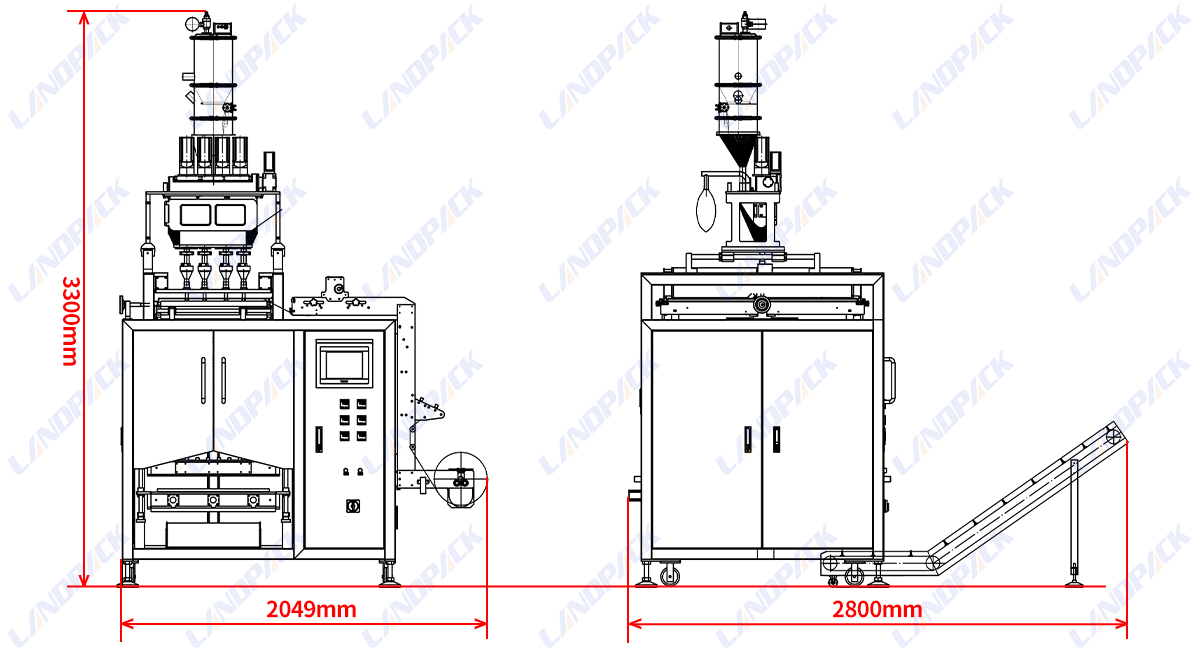

DIM&WT	95014701750mm, 300kg	115316541750mm, 400kg	141516862130mm, 500kg	222022102600mm, 800kg

Features:

Machine Image	Features

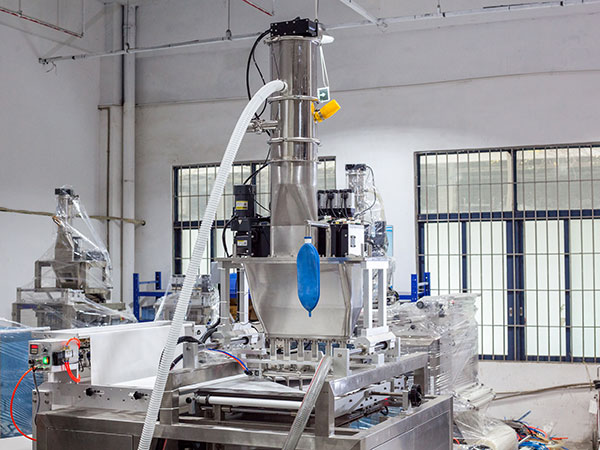

	Vacuum Feeder 1. Automatically transfers powder materials from bulk containers into the hopper. 2. Ensures continuous and stable feeding without manual handling, greatly improving efficiency and keeping the workshop clean by minimizing powder spillage.

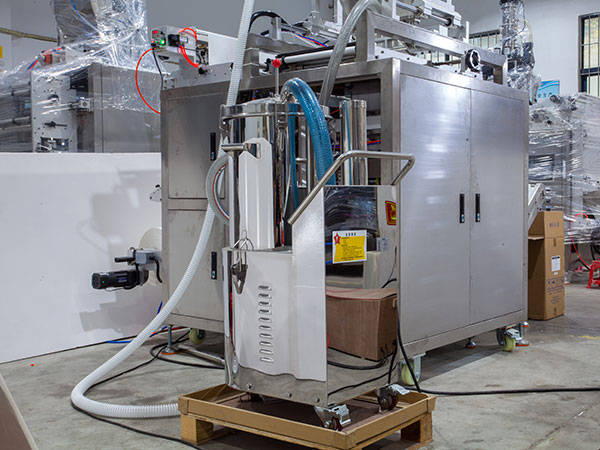

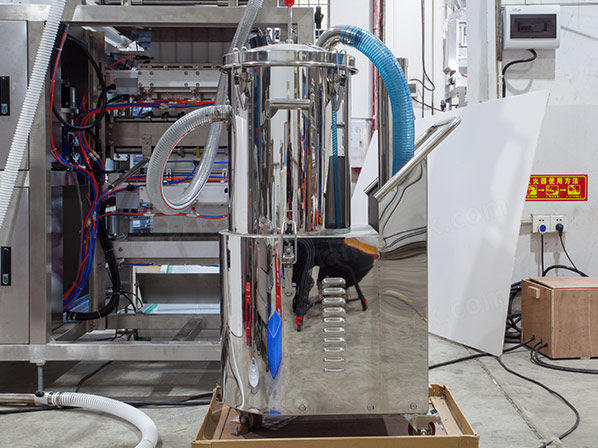

	Dust Collector 1. Integrated dust removal system is placed near the filling area. 2. Effectively captures fine powder particles during dosing and sealing to maintain a clean working environment, reduce product contamination, and protect machine components from powder buildup.

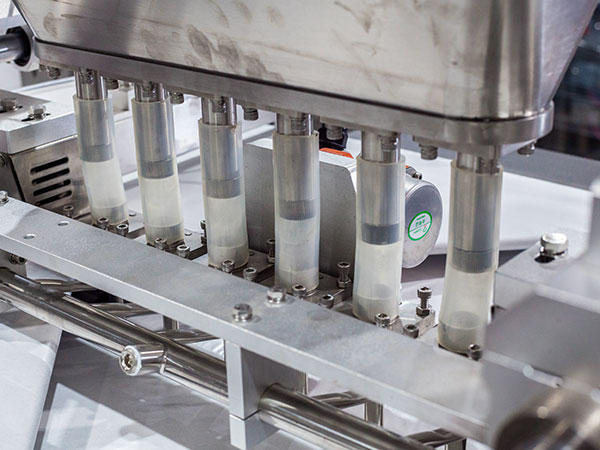

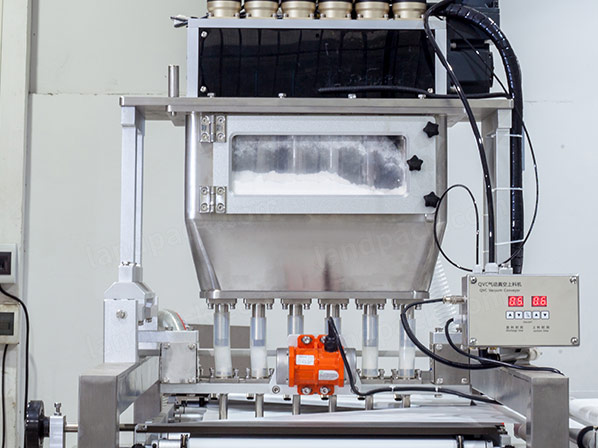

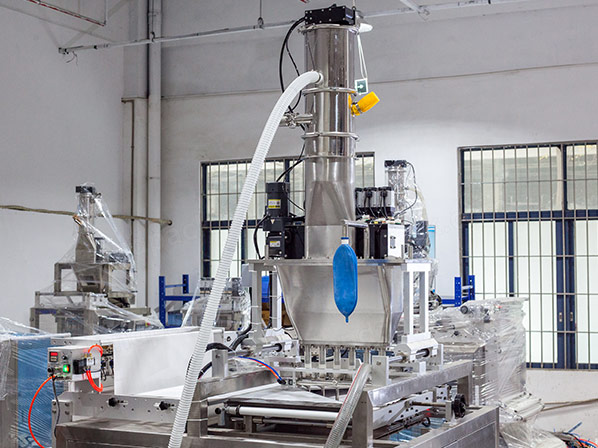

	Measuring System 1. Equipped with multi-lane screw dosing units to ensure exact measurements of powders. 2. Each lane is operated independently, ensuring an accurate filling process, uniform weight of the sachet, and a minimum amount of waste of material - vital for food, pharmaceutical, or cosmetics.

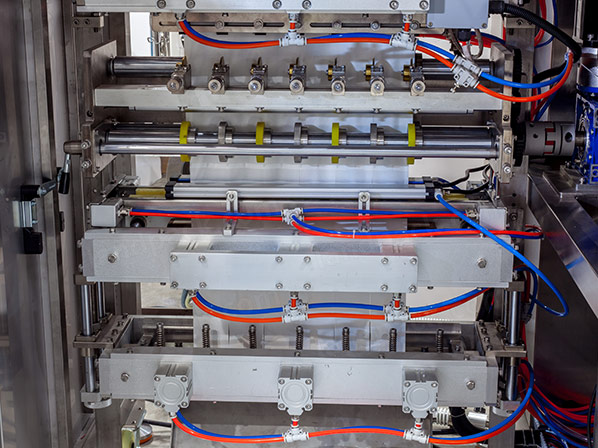

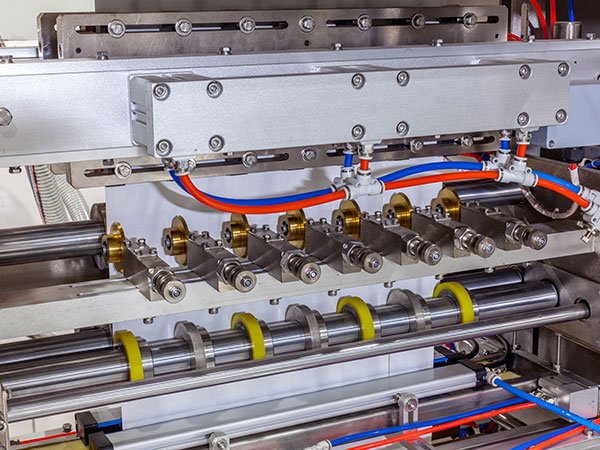

	Forming Structure 1. Transforms the flat roll film into multiple sachet lanes with stable alignment. 2. Includes vertical sealing molds and hot-air longitudinal sealing units to form tight, uniform 4-side sealed sachets, ensuring excellent sealing integrity and bag appearance.

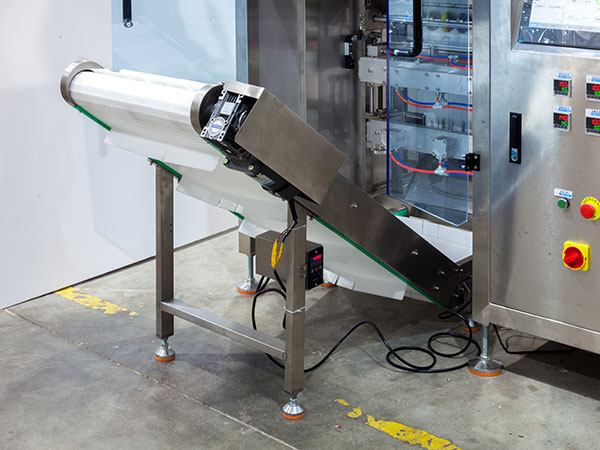

	Output Conveyor 1. Collects and transfers finished sachets from the cutting station to the next packaging stage. 2. Designed with a smooth and stable belt to prevent sachet scattering, supporting continuous high-speed operation and easy manual or automatic cartoning afterward.
