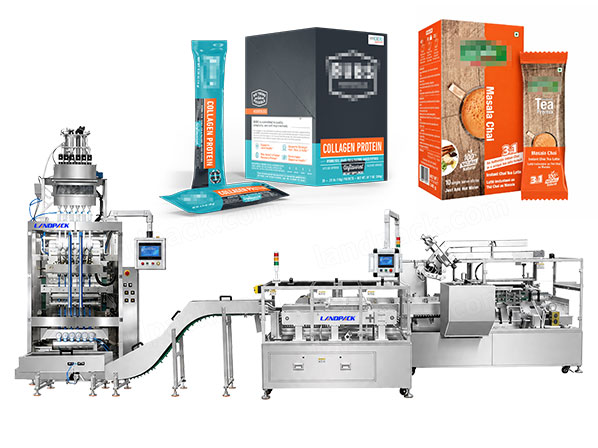

Multi-Lane Stick Pack Cartoning Case Packing Shrink Wrapping and Palletizing Packing System

Application:

The Multi-Lane Stick Pack Cartoning Packing System is suitable for protein powder sticks, collagen powder sticks, supplement sachets, probiotic sticks, Instant coffee sticks, tea sticks, milk powder sticks, drink powder sachets, Sugar sticks, seasoning sachets, sauce sticks, snack sachets, Medicine powder sticks, healthcare sachets, oral solution sachets.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

Suitable for stick packs, sachets, retail cartons, corrugated cases and palletized shipping units.

Supports different secondary packaging formats including stick-to-box, box-to-case and case-to-pallet packaging.

Compatible with customized carton sizes, case dimensions and pallet stacking patterns according to logistics requirements.

Videos Introduction:

Working Process

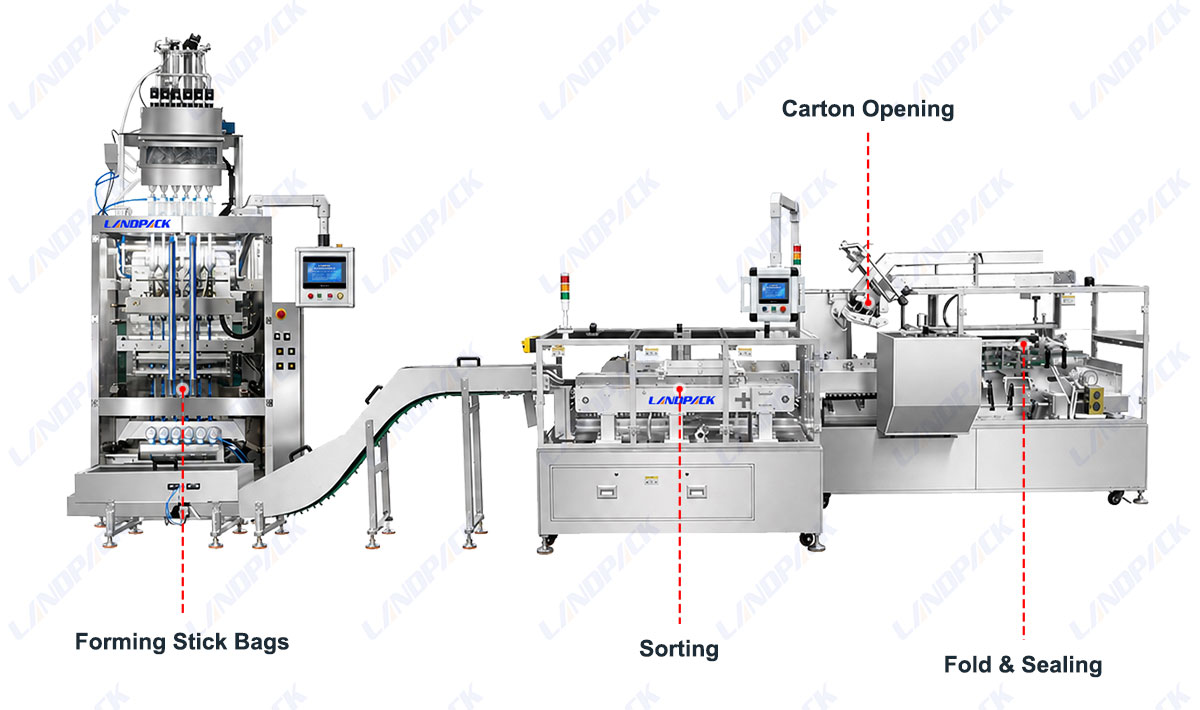

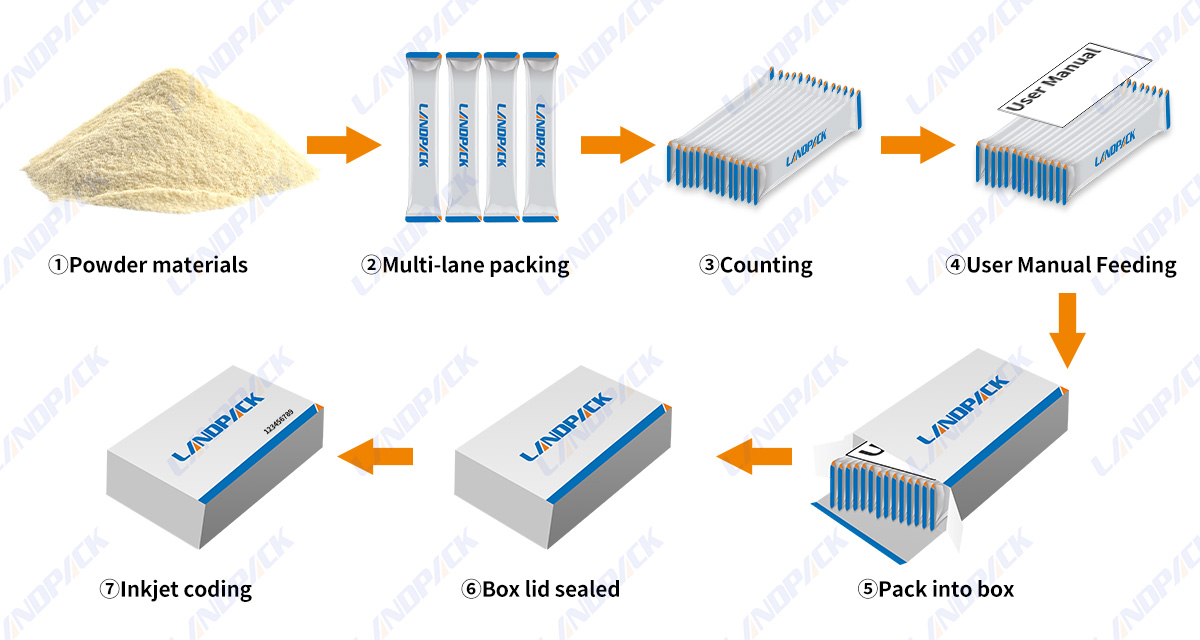

1. Stick Pack Production → Counting & Grouping → Carton Opening → Stick Loading → Carton Sealing → Case Packing → Case Sealing → Shrink Wrapping → Robotic Palletizing → Finished Pallet Output

Key Component

Specification

Mutil Land Stick Packing Machine
Model	LDBK-280
Production capacity	140-210 bags/min
The diameter of the film roll	Maximum 300mm
Packaging film width	17-30 mm
Outer bag size	The longest 180mm widest 30mm product packaging
Air pressure	0.5-0.7Mpa
Machine noise	Less than 80db(A)decibel
Heating power	3.5 Kw
Total weight of the machine	350KG
Machine size	1385mm918mm2005mm
Automatic Bag in Box Packing System
Model	LDDS-100	LDDS-120	LDDS-250
Packing Speed	40-60 boxes/min	30-50 boxes/min
Box Size	(L)60-220mm(W)20-125mm(H)15-60mm	(L)80-250mm(W)100-160mm(H)40-90mm	(L)150-320mm(W)100-180mm(H)90-110mm
Air Consumption	≥0.6 mpa, 20 m³/h
Power Supply	220V/380V, 50HZ
Machine Power	4.5KW	5.5KW	6.5KW
Machine Size	342513901771mm	345014501800mm	420016501850mm
Machine Weight	1200KG	1600KG	2500KG

Features:

1. Multi-lane stick pack system produces multiple sachets simultaneously to achieve high-speed continuous production.

2. Independent dosing channels ensure consistent filling quantity across different packaging lanes.

3. Servo-controlled film pulling provides accurate stick length, sealing quality and cutting position.

4. Automatic counting and grouping system arranges sticks according to preset carton quantities.

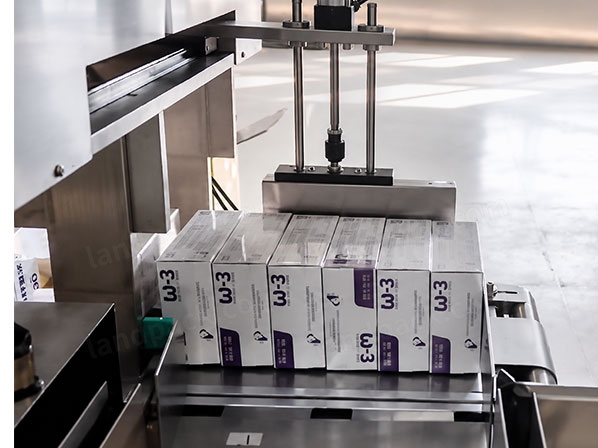

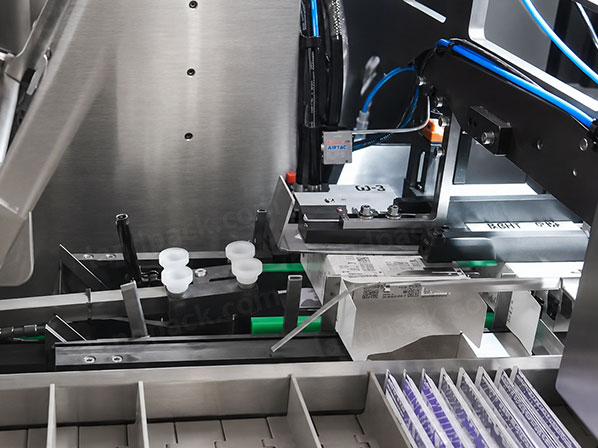

5. Cartoning system automatically completes carton feeding, opening, stick loading and sealing.

6. Case packing and shrink wrapping systems improve transportation packaging efficiency and product protection.

7. Robotic palletizing system supports flexible stacking patterns and automatic warehouse handling.

8. PLC touchscreen control connects the entire line with recipe storage and intelligent production management.
