High Speed Ketchup Packaging Machine | Tomato Sauce Packing Machine

Application:

High-speed multi-lane ketchup packaging machine with automatic counting and cartoning system. Ideal for ketchup, chili sauce, salad dressing, and more. Features air-shaft roll film, ribbon date printer, level sensor, anti-leak filling, and adjustable piston pump for precise, efficient filling and packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

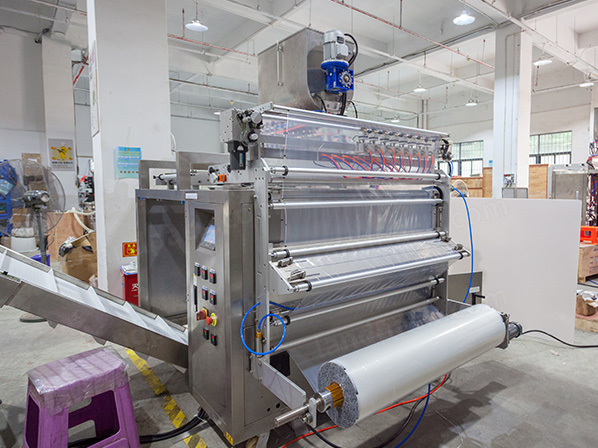

1. Air-Shaft Roll Film Device: Ensures stable and smooth film unwinding for high-speed continuous operation.

2. Multi-Heads Ribbon Date Printer: Prints batch codes and expiration dates simultaneously on all lanes, improving traceability.

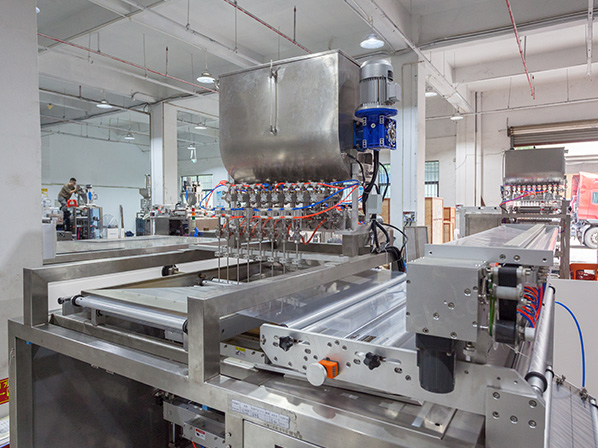

3. Material Tank with Liquid Level Sensor: Automatically detects low material levels, reducing downtime and ensuring consistent filling.

4. Stirring & Heating System: Keeps viscous sauces like ketchup and chili evenly mixed and at the right temperature.

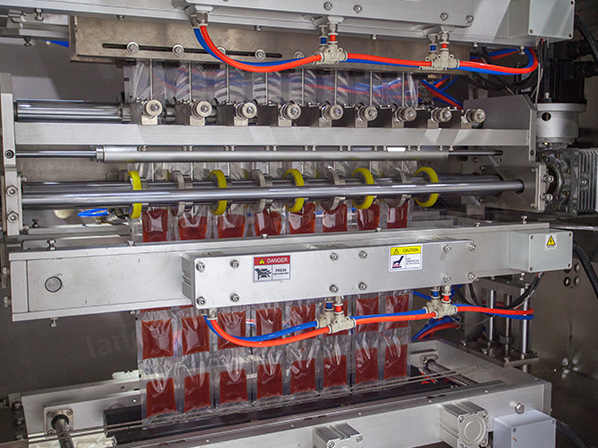

5. Anti-Leaking Filling Nozzles: Prevents dripping or spillage, keeping sealing clean and improving packaging quality.

6. Adjustable Piston Metering Pump: Provides accurate volume control and easy changeover for different filling amounts.

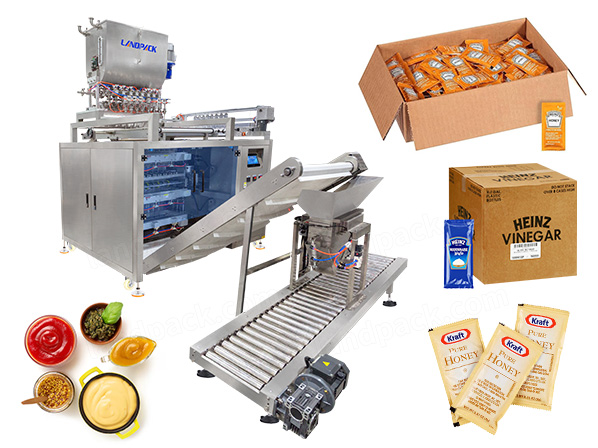

7. Integrated Counting & Cartoning System: Automatically counts finished sachets and places them into empty cartons using photoelectric sensors and synchronized mechanisms.

Application:

Ideal for a wide range of liquid and semi-liquid products: Ketchup, tomato sauce, chili sauce, Mayonnaise, pizza or peanut sauces, Honey, syrup, oil, vinegar, Creams, shampoos, shower gels, Instant noodle/tartare sauces, chocolate spreads.

Suitable for packaging into: 3- and 4-side seal sachets, Stick sachets, Back-seal sachets, Preformed tray-based cartons via integrated cartoner.

Videos:

Specification:

Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8m³/min, 2.8kw	0.8 mpa, 0.8m³/min, 4.1kw	0.8 mpa, 0.8m³/min, 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Working Process:

1.Tank with stirring device, filling evenly

2.Magnetic pump filling precisely

3.7 lanes servo pull film

4.Fall into the conveyor hopper correctly

5.Slop conveyor

6.Electric eye counting device

7.Finished bag all into tray precisely

8.Beautiful bag, firm sealing
