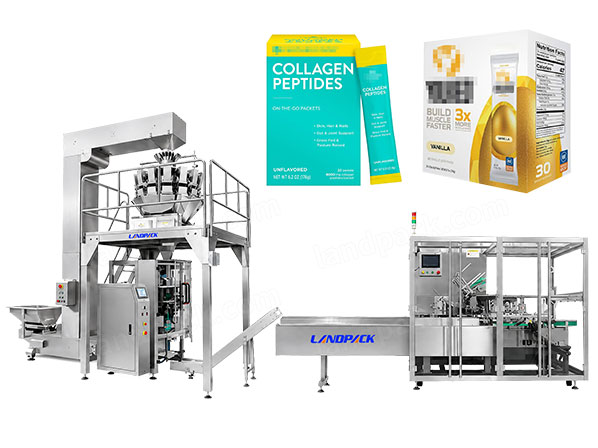

Multi-Lane Granule Stick Pack Filling Counting Cartoning Machine Line

Application:

The Multi-Lane Stick Pack Packing Counting and Cartoning Line is suitable for protein powder, whey powder, creatine powder, amino acid powder, electrolyte powder, Instant coffee powder, 3-in-1 coffee, matcha powder, cocoa powder, milk tea powder, Collagen powder, probiotics powder, vitamin powder, dietary supplement powder.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

Suitable for stick packs, narrow sachets, back-sealed bags and customized single-dose granular packages, followed by automatic carton packaging.

Stick dimensions and filling weights can be customized according to the product and required serving size. Optional easy-tear notch, straight cutting, serrated cutting and date coding can be added.

The downstream cartoner supports different preset quantities per box, such as 10, 20, 30 sticks or customized pack counts, depending on carton dimensions and arrangement requirements.

Videos Introduction:

Working Process

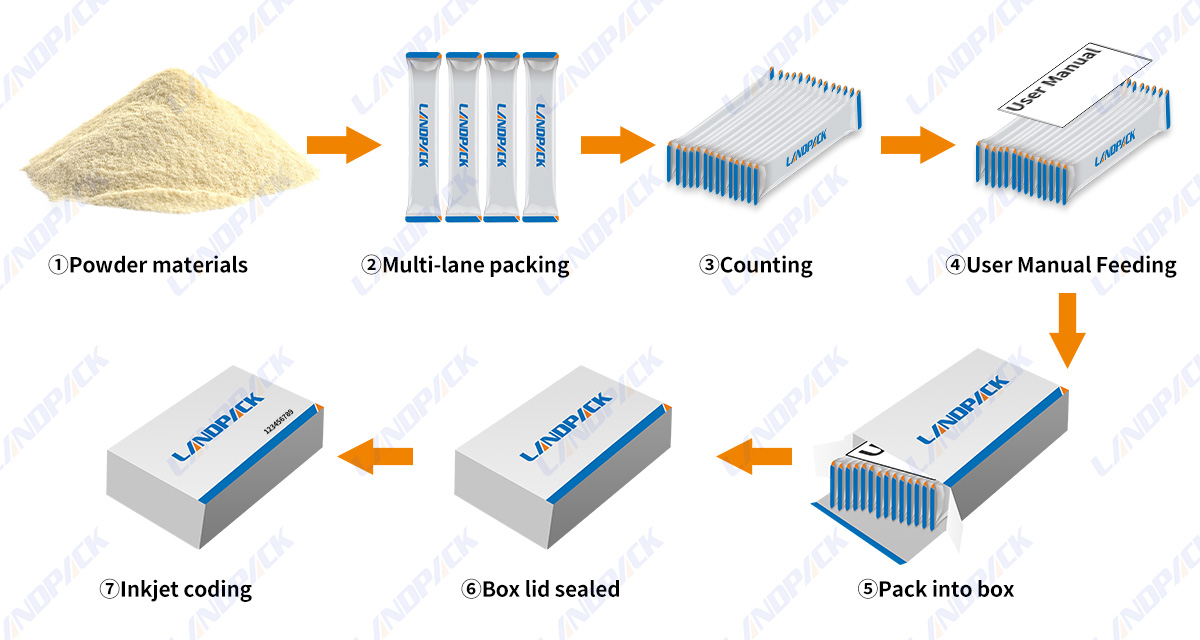

1. Granule Feeding → Quantitative Measuring → Film Unwinding → Multi-Lane Bag Forming → Filling → Sealing → Cutting → Coding → Stick Transfer → Counting → Grouping → Carton Opening → Stick Loading → Carton Closing → Finished Box Output

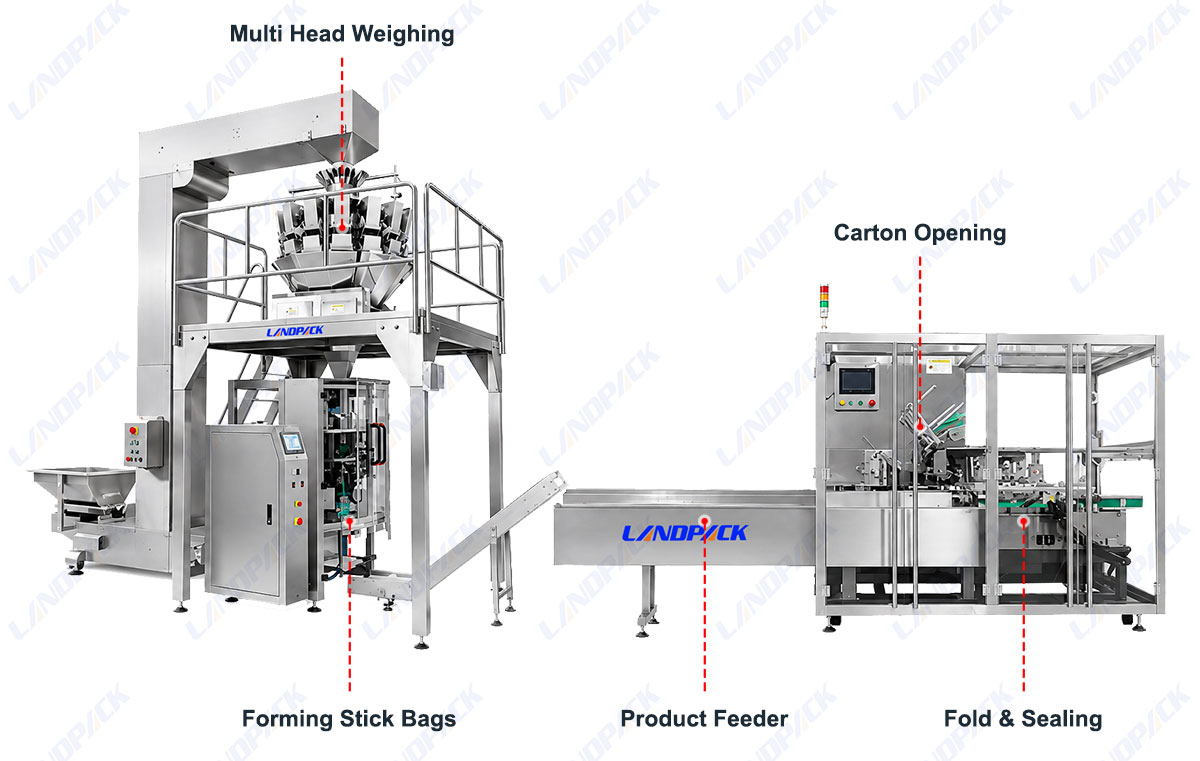

Key Component

Specification

Multi Lane Stick Packing Machine Parameters
Model	LDBK-280	LDBK-560
Lane number	4-6 Line	8-12 Line
Filling Method	1.Volumetric cup; 2. Weigher
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw
Dimension & weight	13859182005mm;350kg	168513002005mm;550kg

Fully Automatic Cartoning Machine Parameters
Max box size	350mm320mm100mm（LWH）
Min box size	70mm40mm15mm（LWH）
Speed	60-100 box/min
Available paper	300-350 g/m³
Power supply	220V/50HZ
Max power	About 1.2KW
Weight	1500kg
Air pressure	0.6-0.8MPa
Air consumption	200-260L/min
Overall dimension	4000mm1580mm1850mm
customizable

Features:

1. Multi-lane structure produces multiple stick packs simultaneously to improve overall packaging efficiency.

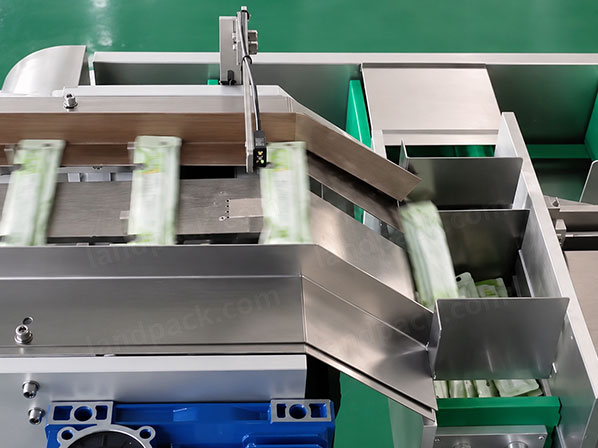

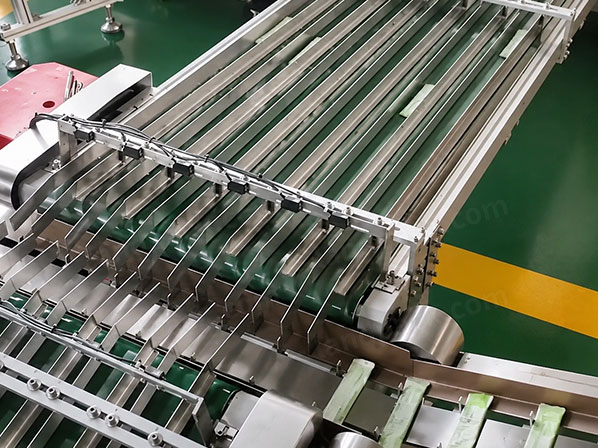

2. Automatic counting and grouping system accurately arranges sticks before carton loading.

3. PLC touchscreen control manages filling, stick quantity, bag length and cartoning parameters.

4. Servo film pulling system ensures stable bag forming and precise cutting position.

5. Independent dosing channels maintain consistent filling performance across all lanes.

6. Automatic carton feeding, opening, loading and sealing complete the secondary packaging process.

7. Multiple detection sensors prevent empty cartons and incomplete stick loading.

8. Modular design supports integration with coding, labeling, checkweighing and case packing systems.
