Fully Automatic Powder Stick Bag Counting Cartoning Packing System

Description:

This Fully Automatic Powder Stick Bag Counting Cartoning Packing System is ideal for protein powder, milk powder, coffee powder, collagen powder, instant drink mixes, dietary supplements,and other fine or granular powders that benefit from precise dosing and hygienic handling.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application(Bag & Specific material):

This packaging system produces multi-lane stick packs or sachets and automatically loads them into cartons. It also supports a wide range of carton types—including tuck-in cartons, glue-sealed cartons, side-load boxes, and retail display cartons—ensuring compatibility with major powder and supplement brand requirements.

Wide Application Range

This fully automated multi-lane packing and cartoning packaging line is designed to produce high-speed, high-accuracy stick packs and neatly packed cartons. Ideal for:

Nutritional & Functional Powders

• Protein powder, whey powder, collagen powder, meal replacement powder

Dairy & Instant Beverage Powders

• Milk powder, cocoa powder, matcha powder, instant tea/coffee mixes

Coffee & Specialty Drink Powders

• Instant coffee, 3-in-1 coffee blend, flavored latte powder, energy drink powder

Machine Details:

Working Process

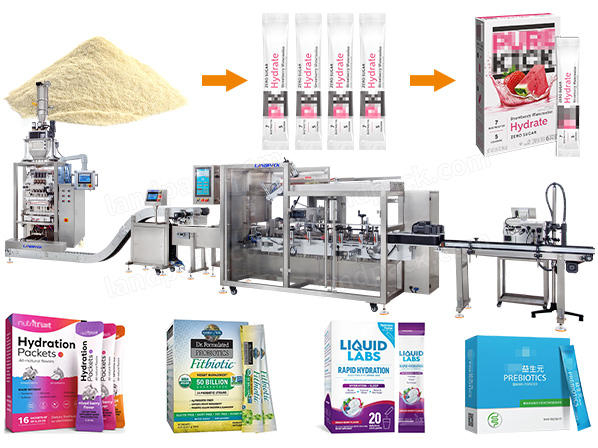

1. Powder materials feeding → 2. Multi-lane packing → 3. Stick Pack Counting → 4. User Manual Feeding → 5. Carton Opening → 6. Inkjet coding → 7. Carton lid sealed → 8. Pack into box

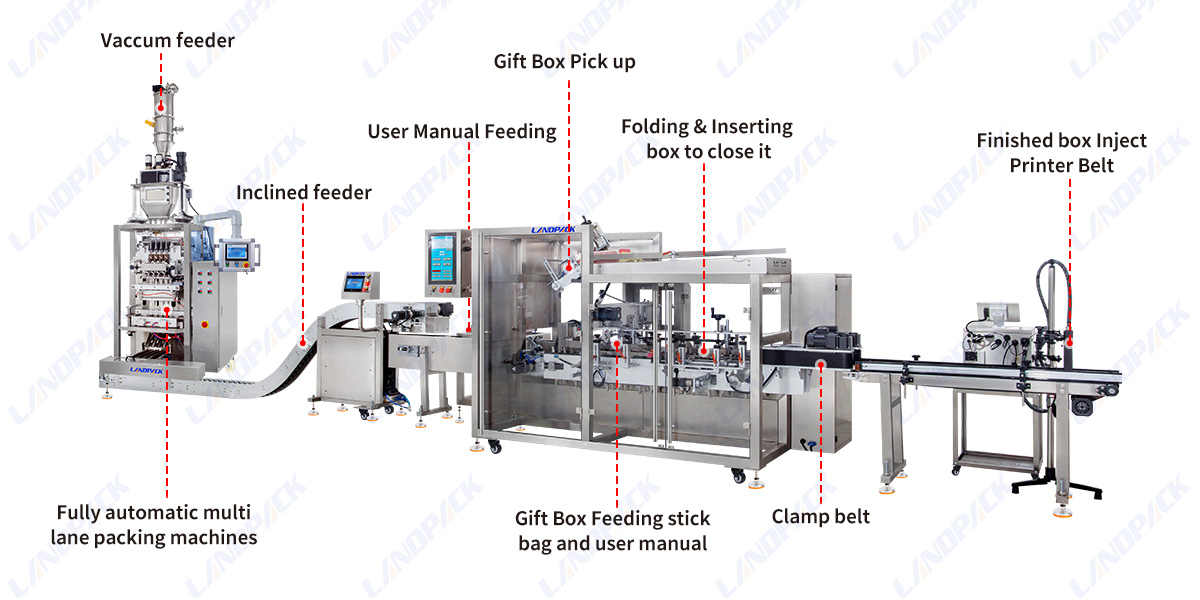

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Multi Lane Stick Packing Machine Parameters
Model	LDBK-280	LDBK-560
Lane number	4-6 Line	8-12 Line
Filling Method	1.Volumetric cup; 2. Weigher
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw
Dimension & weight	13859182005mm;350kg	168513002005mm;550kg

Fully Automatic Cartoning Machine Parameters
Max box size	350mm320mm100mm（LWH）
Min box size	70mm40mm15mm（LWH）
Speed	60-100 box/min
Available paper	300-350 g/m³
Power supply	220V/50HZ
Max power	About 1.2KW
Weight	1500kg
Air pressure	0.6-0.8MPa
Air consumption	200-260L/min

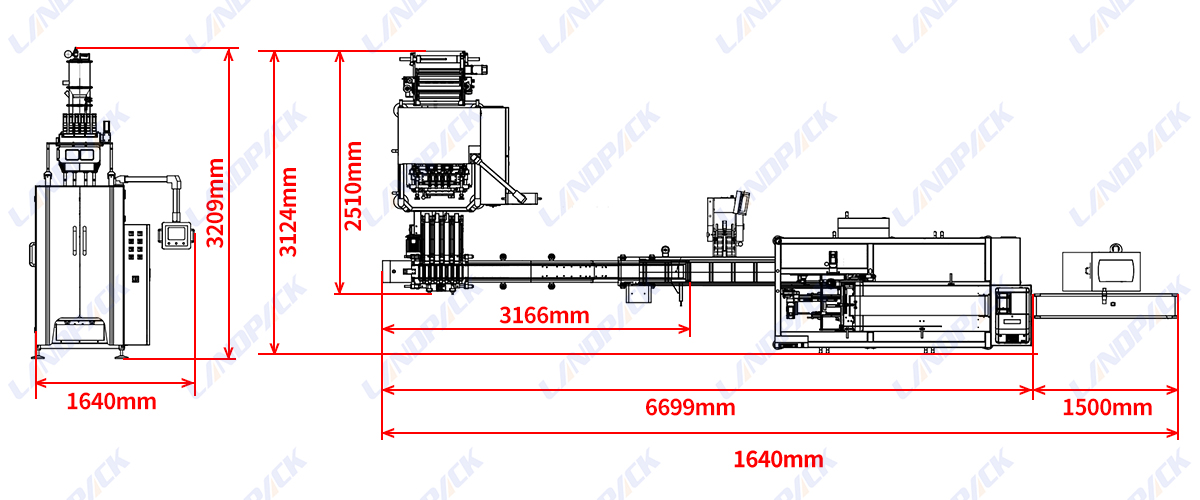

Overall dimension	4000mm1580mm1850mm
customizable

Features:

Machine Image	Features

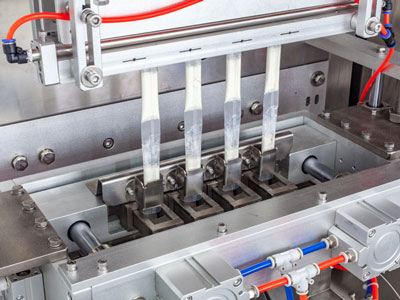

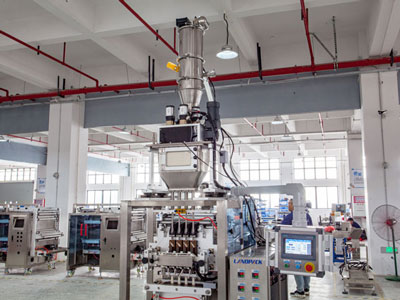

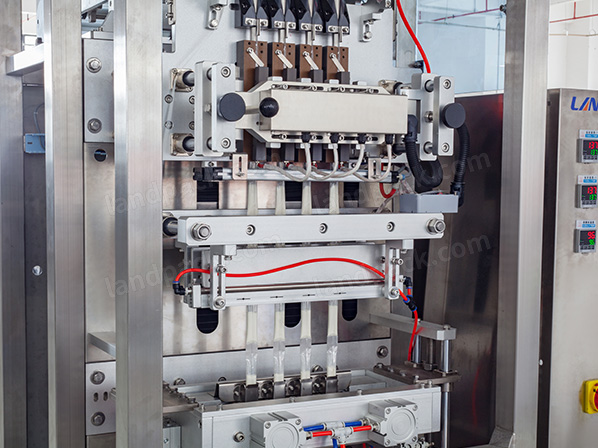

	High-Speed Multi-Lane Packing Machine: The LDBK-280 delivers fast and consistent bag output, forming, filling, sealing, and cutting powder stick packs at high speed—ideal for protein powder, milk powder, coffee powder, and other fine granules. Its servo-driven auger ensures accurate dosing and stable sealing quality.

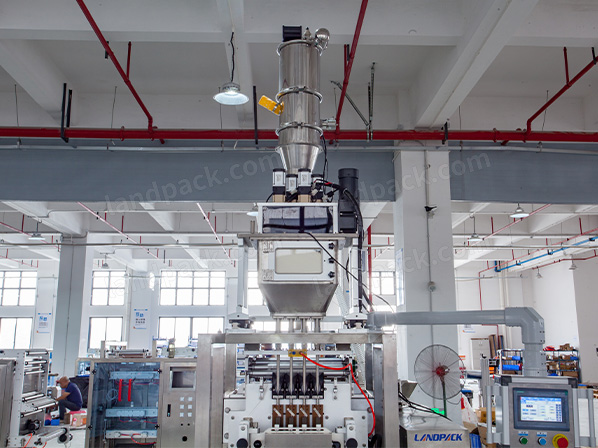

	Efficient Vacuum Feeding for Clean Powder Handling The vacuum feeder automatically transports powder to the auger system while minimizing dust, improving hygiene, and keeping the production area clean—perfect for lightweight powders that are prone to floating.

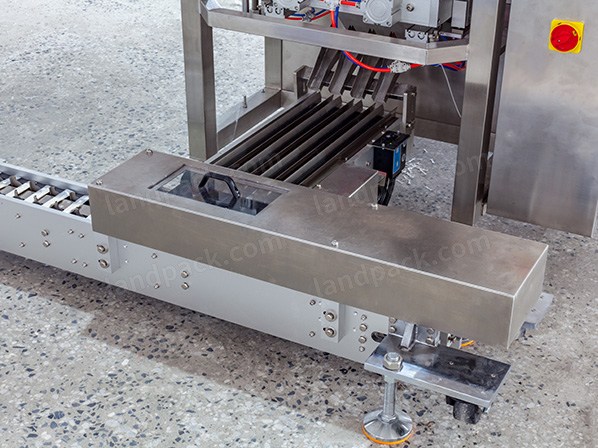

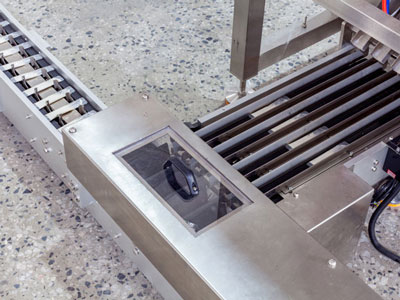

	Slope Conveyor for Smooth Bag Transfer The inclined sorting conveyor organizes bags in order and sends them securely into the cartoning machine. Its gentle belt design prevents bag bending, misalignment, or jamming during continuous high-speed operation.

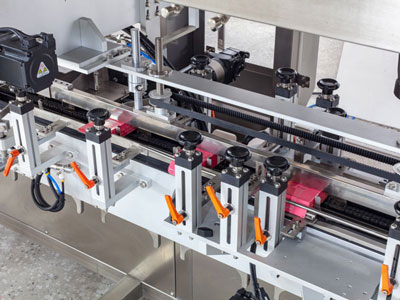

	Automatic Cartoning with Leaflet Insertion The cartoner forms cartons, inserts stick packs, adds instruction leaflets using the dedicated leaflet inserting unit, and closes the box automatically.

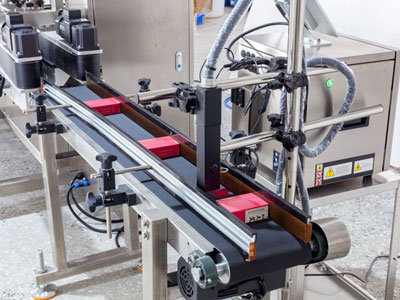

	Integrated Coding and Quality Traceability The coding conveyor combined with a small-character inkjet printer applies batch numbers, expiry dates, clearly on each carton. This fully meets US/EU traceability and compliance requirements for food and supplements.

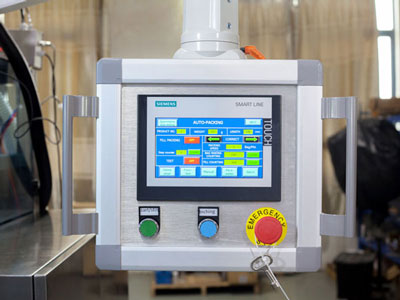

	Modular, Easy-to-Operate Full Line Design All units—stick pack machine, conveyors, cartoner, leaflet feeder, and coder—operate in coordination through smart controls. The line supports fast bag types changeover, stable operation, reduced labor, and consistent packaging quality across long production runs.
