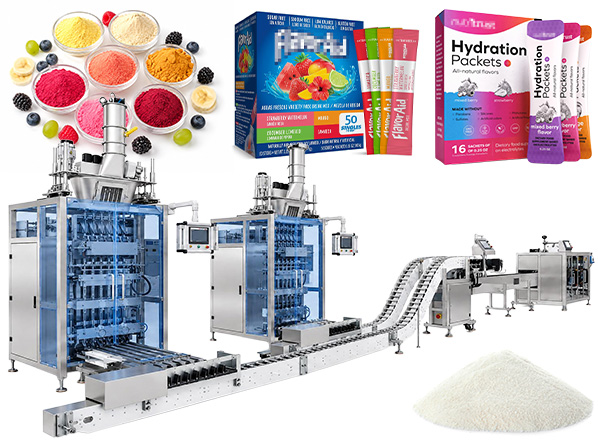

Multi Lane Fine Powder Stick Pack Packing Cartoning Packaging System

Application:

Multi-Lane Fine Powder Stick Pack Packing Cartoning Packaging System is suitable for Protein powder, collagen powder, meal replacement powder, vitamin powder, Instant coffee, milk powder, cocoa powder, matcha powder, electrolyte powder, oral powder, health supplement powder, functional powder products, seasoning powder, sugar powder, instant drink mixes.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

Multi-Lane Fine Powder Stick Pack Packing Cartoning Packaging System is suitable for stick packs, sachets and retail carton boxes.

Compatible with different carton styles including tuck-end cartons, glue-sealed cartons, display boxes and customized paper boxes.

Supports different stick pack quantities per carton according to customer requirements, such as 5 sticks, 10 sticks, 20 sticks or customized combinations.

Videos Introduction:

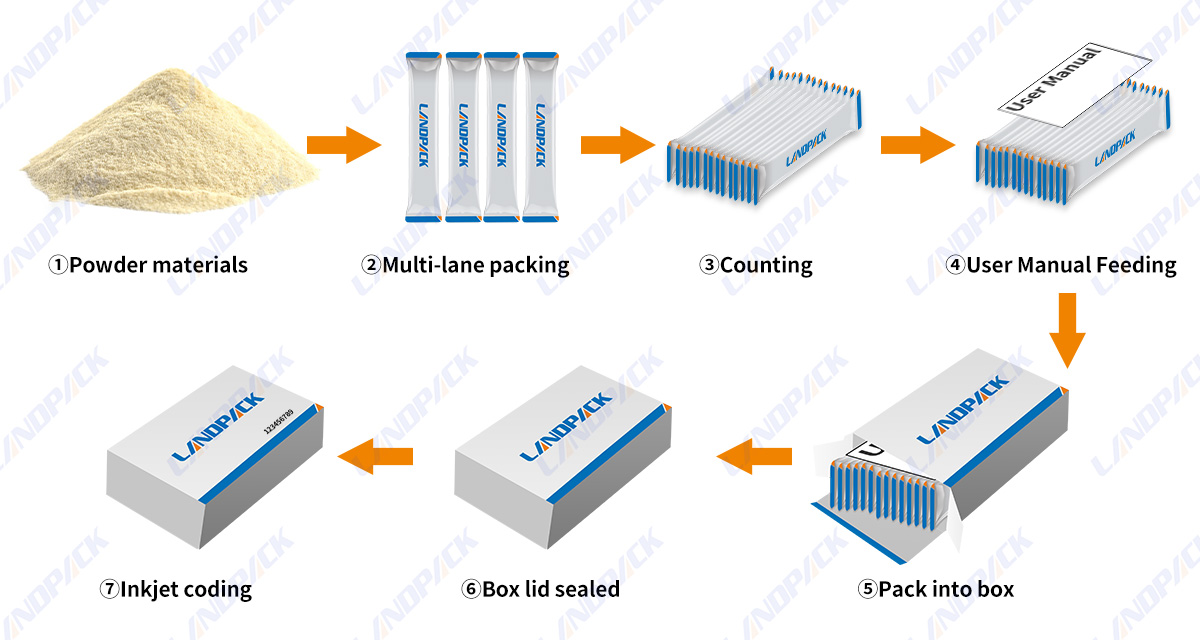

Working Process

1. Powder Feeding → Multi-Lane Stick Forming → Auger Filling → Sealing & Cutting → Stick Counting → Carton Opening → Stick Loading → Carton Sealing → Coding

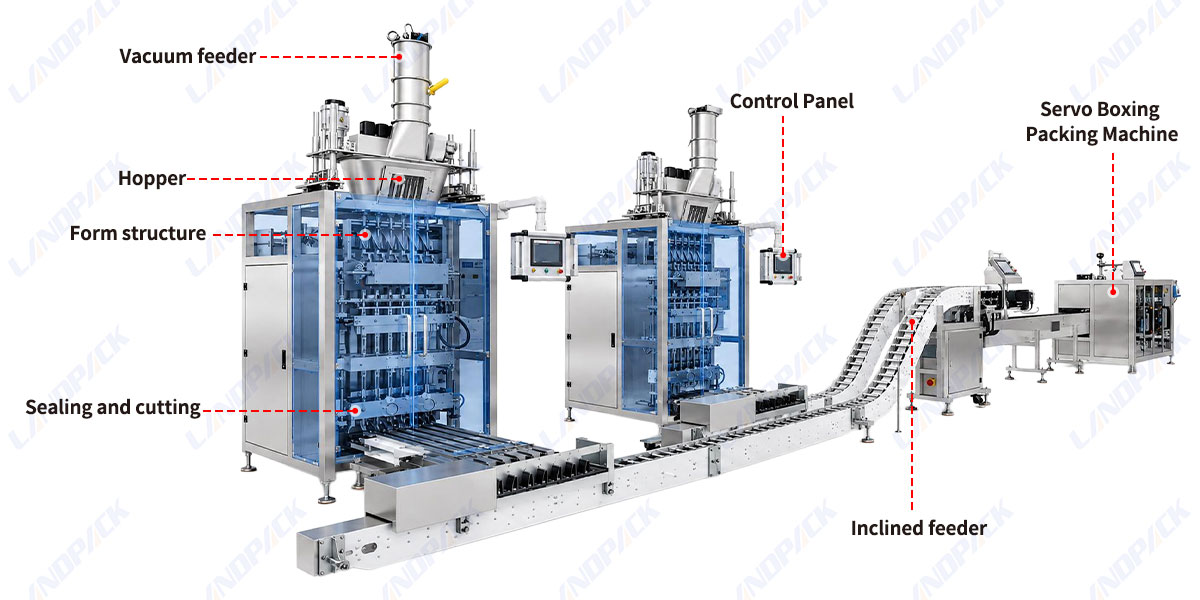

Key Component

Specification

Multi Lane Stick Packing Machine Parameters
Model	LDBK-280	LDBK-560
Lane number	4-6 Line	8-12 Line
Filling Method	1.Volumetric cup; 2. Weigher
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw
Dimension & weight	13859182005mm;350kg	168513002005mm;550kg

Fully Automatic Cartoning Machine Parameters
Max box size	350mm320mm100mm（LWH）
Min box size	70mm40mm15mm（LWH）
Speed	60-100 box/min
Available paper	300-350 g/m³
Power supply	220V/50HZ
Max power	About 1.2KW
Weight	1500kg
Air pressure	0.6-0.8MPa
Air consumption	200-260L/min
Overall dimension	4000mm1580mm1850mm
customizable

Features:

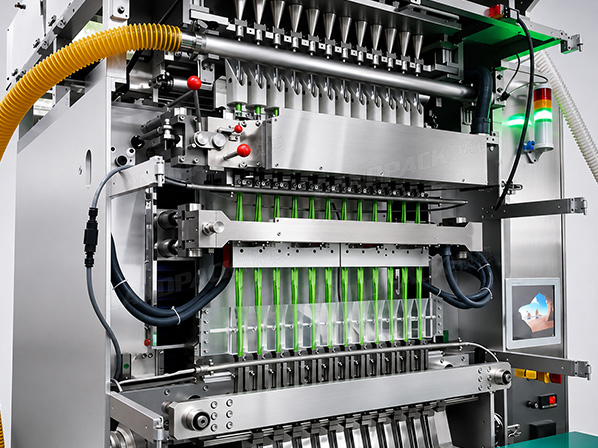

1. Multi-lane design supports 4-16 lanes for high-speed powder stick and sachet packaging.

2. Servo-driven film pulling ensures smooth feeding, accurate bag length and neat finished packs.

3. PLC touchscreen control allows easy adjustment of bag length, speed and production parameters.

4. Schneider, Siemens, SICK and FESTO components improve control accuracy and long-term running stability.

5. Automatic measuring, filling, sealing, cutting and coding achieve continuous primary packaging.

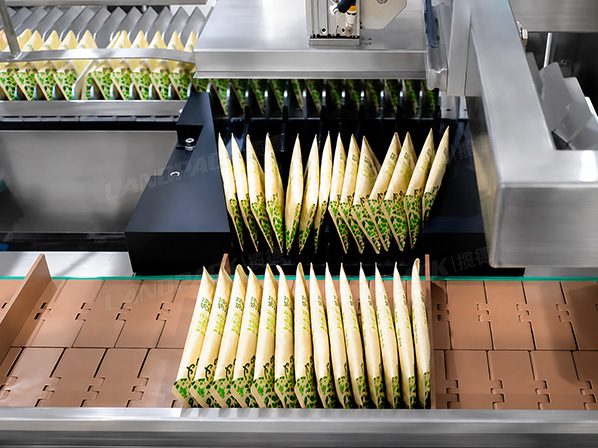

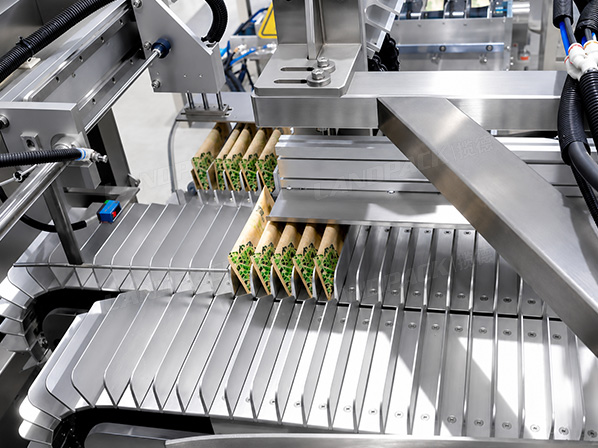

6. Intelligent sachet alignment and counting system automatically groups finished packs before cartoning.

7. Automatic cartoning system completes carton opening, sachet loading and box closing with minimal manual handling.

8. SUS304 machine frame with compact vertical layout saves workshop space and simplifies cleaning and maintenance.
