Honey Filling Machine | Automatic Bottle Filling Machine

Application:

It is widely used for packaging laundry and home care products, such as laundry scent booster beads, wardrobe fragrance beads, and air-freshening granules.also for food product such as nut, dry fruit,popcorn.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This automatic bottle filling machine is designed to handle bottles, jars, and containers of various sizes and materials, including plastic bottles, glass bottles, PET containers, and wide-mouth jars. It supports different shapes such as round, square, and irregular containers.

Wide Application Range

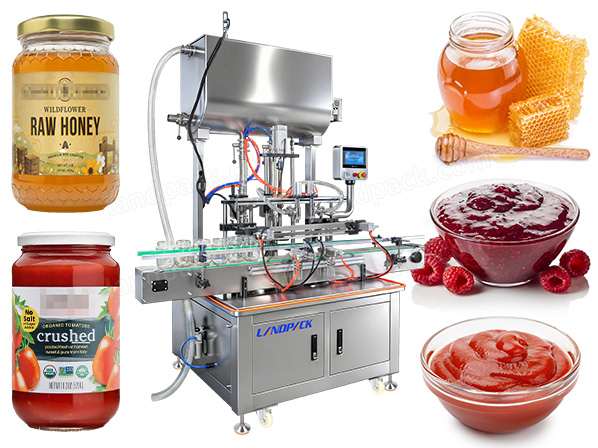

The automatic liquid filling machine is suitable for a wide range of viscous, semi-viscous, and flowable liquid products, offering precise dosing and stable operation. It is widely used in

Food processing

• honey, syrup, jam, chocolate sauce, caramel, tomato paste, and various sauces.

Daily chemical industries

• shampoo, shower gel, hand soap, dishwashing liquid, and laundry detergent.

Cosmetics and personal care

• creams, lotions, gels, and hair masks.

Machine Details:

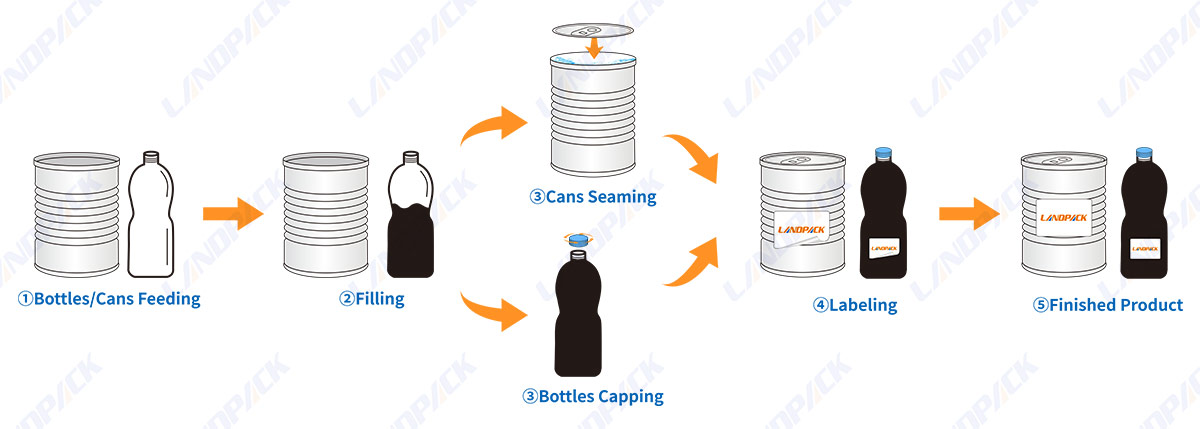

Working Process

1. Bottles Feeding → 2. Liquid Material Filling → 3. Bottles Capping → 4. Labeling (Optional) → 5. Finished Product Output

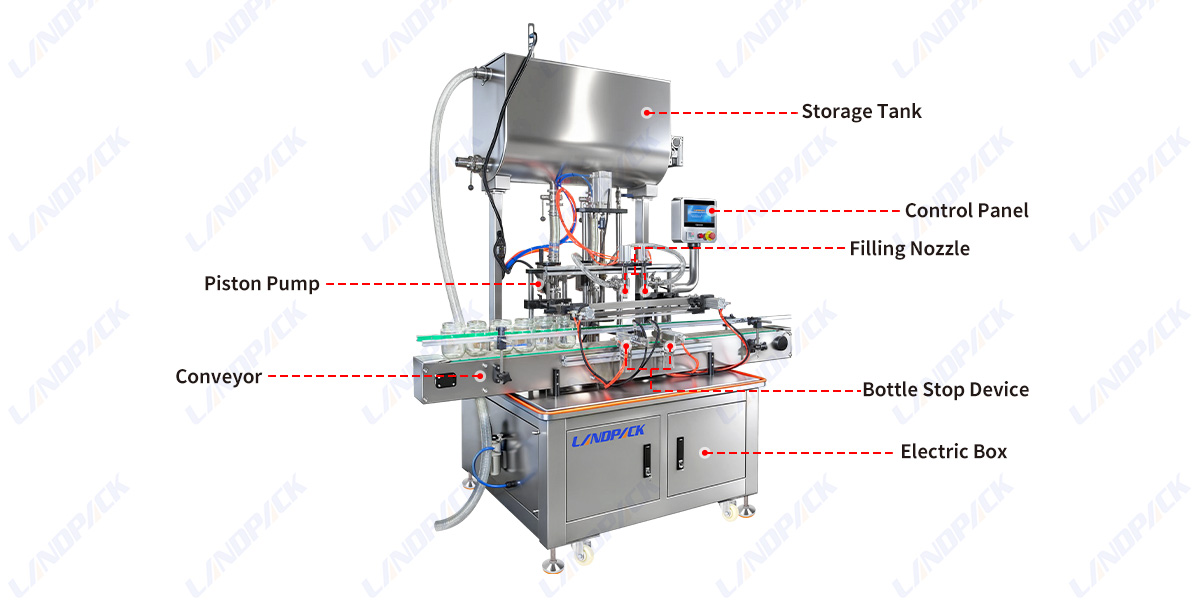

Key Component

Specification

Model LFZ-01/02/03/04 LFZ-06 LFZ-08 LFZ-10 LFZ-12

Filling Range 50-1000ml (customizable) 50-1000ml (customizable) 50-1000ml (customizable) 50-1000ml (customizable) 50-1000ml (customizable)

Production Speed <15-25 bottles/min <20-35 bottles/min <30-40 bottles/min <40-50 bottles/min <60 bottles/min

Measurement Accuracy ±1% ±1% ±1% ±1% ±1%

Power 2KW 2.5KW 3.5KW 5KW 5KW

Voltage 220V, 50Hz 220V, 50Hz 220V, 50Hz 220V, 50Hz 220V, 50Hz

Air consumption 0.6-8Mpa 0.6-8Mpa 0.6-8Mpa 0.6-8Mpa 0.6-8Mpa

Weight 600kg 650kg 800kg 800kg 800kg

Dimension L4000*W1320*H2090(mm) L4000*W1320*H2090(mm) L4000*W1320*H2090(mm) L4000*W1320*H2090(mm) L4000*W1320*H2090(mm)

Features:

Machine Image	Benefits
	Piston Pump The piston pump driven by servos provides precise and repeatable filling results, which is particularly suitable for viscous liquids like syrup, honey sauces, gels and sauces. The volume of filling can be adjusted easily to ensure consistency throughout different batches of production.

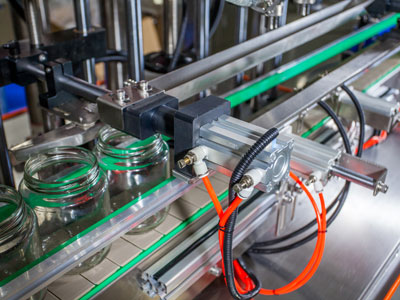

	Conveyor System The bottle conveyor that is stable moves containers throughout the filling zone in synchronized fashion that reduces the need for manual handling.

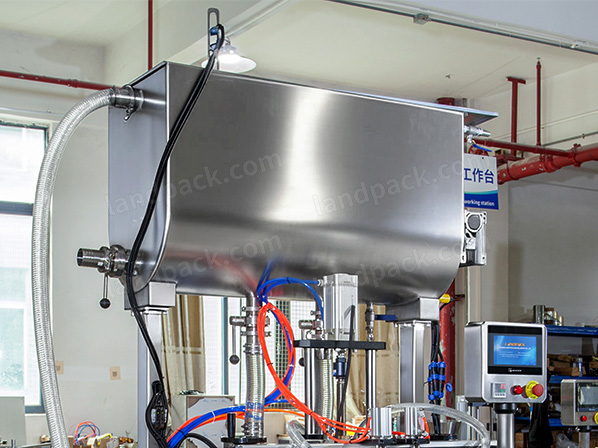

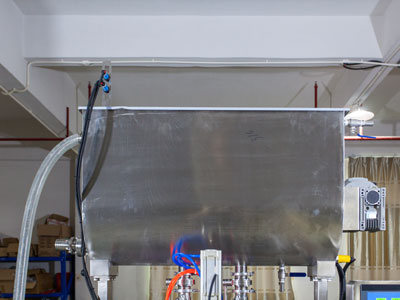

	Storage Tank The storage tank integrated into the system will ensure a stable supply of material throughout filling, ensuring the same flow and pressure. Its hygiene-friendly design facilitates simple cleaning and helps prevent contamination.

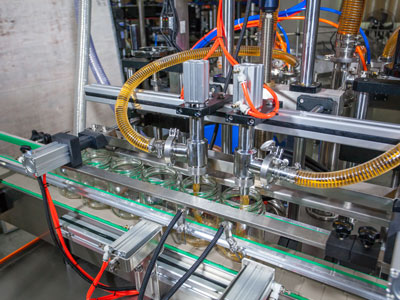

	Filling Nozzle The specially-designed filling nozzles have anti-drip and antistringing functions which ensure that the bottle's mouths are clean and minimizing waste material while maintaining a tidy appearance of the packaging.
	Control Panel A user-friendly control panel allows operators to modify filling parameters as well as monitor the status of the machine and change product settings fast increasing usability and decreasing time for setting up.

Learn More:

1.If you need more Honey Packing Machine for your product , read our-- Honey Packing Machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Model	LFZ-01/02/03/04	LFZ-06	LFZ-08	LFZ-10	LFZ-12
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min	<60 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
