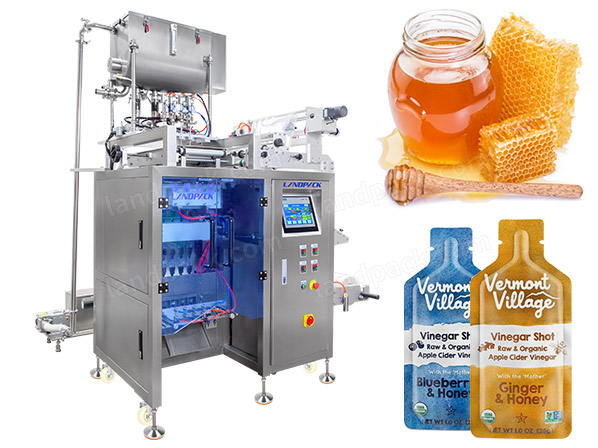

Multi Lanes Shaped Pouch Sachet Packing Machine With Heating Stiring Device

Application:

Widely applicable for food, pharmaceutical, and chemical liquid products, this machine is ideal for packaging honey, ketchup, sauces, flavorings, pastes, shampoo, creams, body wash, jam, mayonnaise and more. It ensures efficient and precise packaging for various liquid and semi-liquid items.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Fully Automatic Operation: Streamlines feeding, dosing, and filling of liquid into irregular sachets, ensuring efficiency and consistency.

2. Rotor Pump Feeding: Capable of automatically handling sticky liquids, making it suitable for diverse liquid materials.

3. Ceramic Pump Filling: Provides precise measurement with high accuracy, ideal for maintaining product quality standards.

4. Customizable Design: Tailored to meet customers' personalized requirements, offering flexibility for unique packaging needs.

5. Efficient Production: Combines advanced technology to maximize productivity and minimize material waste.

6. User-Friendly Features: Simplifies operation and maintenance for seamless integration into production lines.

Application:

Widely applicable for food, pharmaceutical, and chemical liquid products, this machine is ideal for packaging honey, ketchup, sauces, flavorings, pastes, shampoo, creams, body wash, jam, mayonnaise and more. It ensures efficient and precise packaging for

Videos Introduction:

Specification:

Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1. Piston pump; 2. Peristaltic Pump
Production capacity	Max. 240 bags/min	Max. 400 bags/min	Max. 480 bags/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm
Sealing Type	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8 m³/min, 2.8kw	0.8 mpa, 0.8 m³/min, 4.1kw	0.8 mpa, 0.8 m³/min, 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Working Process:

1. Automatic Film Pulling

2. Automatic Ribbon Code Printer

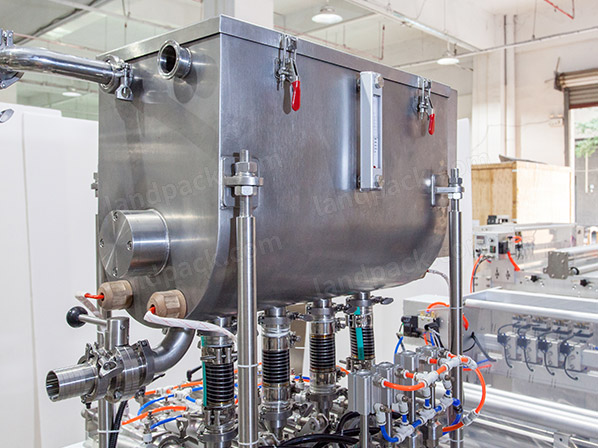

3. Stirring and Thermal Device

4. Ceramic Pump filling

5. Mode Forming Shape

6. Automatic Sealing And Cutting

7. Waste Film Recycling Device
