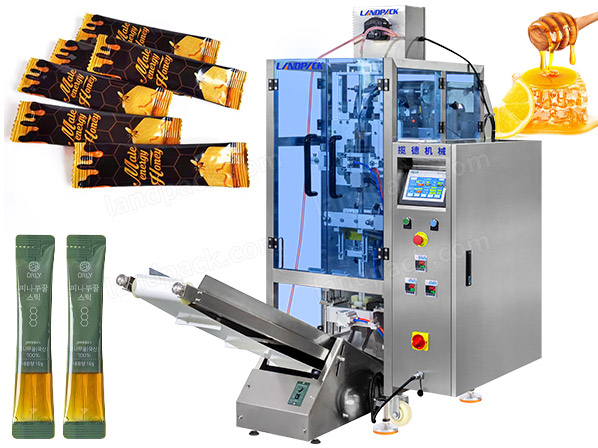

Fully Automatic Single Line Honey Liquid Stick Filling Packing Machine

Application:

Automatically feeding,measuring volume, making bags, filling, sealing, cutting, printing the lot number and suitable for packing honey, chili sauce, tomato sauce, peanut butter, jam, bean sauce, detergent, fruit juice, miller wine, soy sauce,

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Cutting Type:

Features:

1. Famous brand PLC control system,large touch screen,convenient to operate;

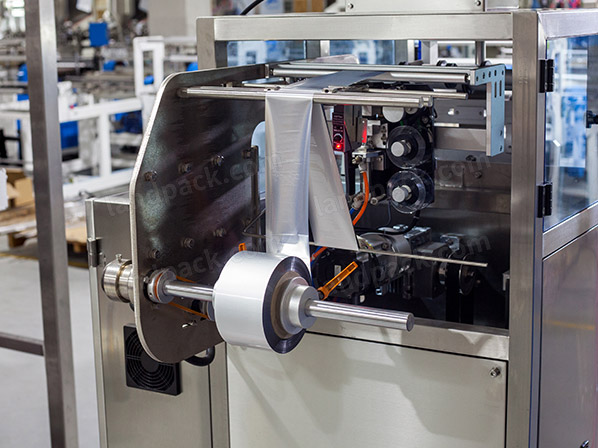

2. Film drawing down system by famous bland servo motor control.

3. Piston pump is controlled by brand servo motor, which volume is adjustable in screen;

4. Advanced design,high precision and fast speed;

5. Various alarm system to reduce waste;

6. Photoelectric tracking system for precise bag length and position of film;

7. Cutting type option: V shape cutting, straight cutting, round corner cutting, die-cut cutting type.

Application:

Automatically feeding,measuring volume, making bags, filling, sealing, cutting, printing the lot number and suitable for packing honey, chili sauce, tomato sauce, peanut butter, jam, bean sauce, detergent, fruit juice, miller wine, soy sauce,

It can adopt all type of sticks, sachets, pouches, etc.

Videos Introduction:

Specification:

Name	Landpack Single Lane Stick Pack Machine
Model	LDBK-140L

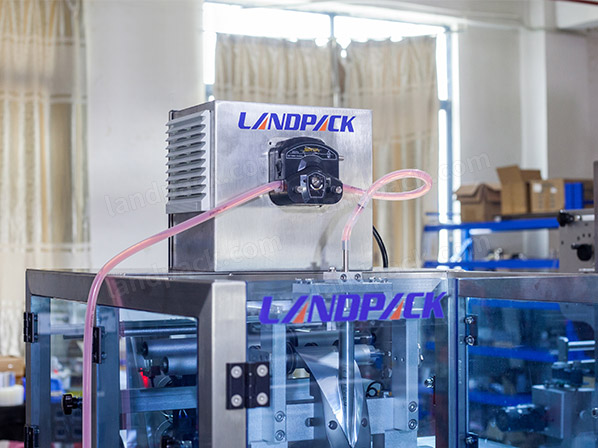

Dosing Method	A: Piston pump 1-30ml; B: Piston pump 2-42ml; C: Magnetic pump 3Liter/min (for pure liquid or oil product)
Hopper type	A: Single layer SS304 hopper; B: Double jacket SS304 hopper; C: Magnetic pump hose connection to raw liquid tank
Packing speed	20-45 bag/min (1200-2700bag/min)
Bag size range	L 40-150mm ; W 15-100mm
Bag Seal type	Stick /pillow
Cut type	A: Teeth cut; B: Straight cut C: Round cut D: Irregular cut (Stick Width within 40mm)
Film thickness	0.05-0.1mm
Film material	Laminated film such as paper/PE, aluminum/PE, PA/PE, PET/PE, filter paper
Drive method	Electricity + Pneumatic
Control style	PLC control system+English/Chinese screen (Or customized panel)
Power	1.8KW
Power supply	AC220V 1phase 50Hz/ AC380V 3phases 50Hz
Air consumption	0.4cbm/min 0.8Mpa
Dimension	750x710x1780 mm
HS CODE for export	84223030

Cutting Type:

Straight cutting; Zig zag cutting; Round cutting; Irregular
