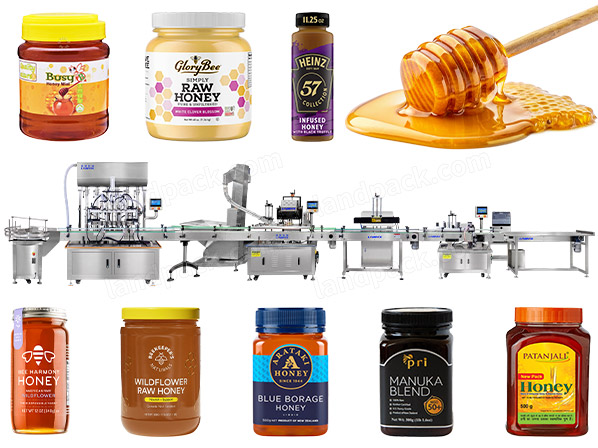

Fully Automatic Linear Filling Machine Type Honey Bottle Cans Filling Machine

Application:

Applicable filling materials: honey, hand sanitizer, laundry detergent, shampoo, shower gel, etc. (Standard equipment uses 304 stainless steel for the contact material part

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Optional:

Features:

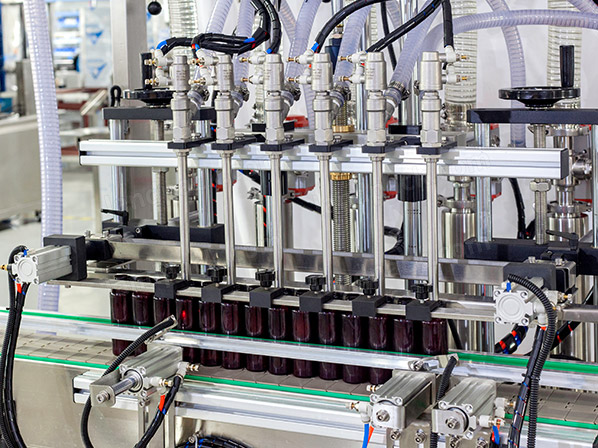

1. Piston filling machine, self-priming filling, the material is driven by the servo to extract the material into the metering cylinder, and then the servo pushes the piston to inject it into the container through the material pipe. The filling volume is determined by adjusting the servo position parameters, which is easy to adjust;

2. It is equipped with a no-filling function without a bottle, and the liquid level in the storage hopper automatically controls the feeding;

3. The overall program control adopts PLC + touch screen, and the filling volume and filling speed are easy to adjust;

4. The overall appearance material is mainly made of stainless steel 304, with a thickness of 1.5mm;

5. The maximum filling temperature is within 80℃;

Application:

Applicable filling materials: honey, hand sanitizer, laundry detergent, shampoo, shower gel, etc. (Standard equipment uses 304 stainless steel for the contact material part

It can adopt all type of bottles, cans, jars, etc.

Videos Introduction:

Specification:

Model	LD-ALF01
Filling Range	50-1000ml(Customizable)
Filling Speed	15-50 bottles/min
Measurement accuracy	±1%
Power	2 KW
Working power supply	220V, 50Hz
Working pressure	0.6-0.8MPa
Weight	500kg
Size	L4000W1320H2090(mm)

Optional:

1.Bottle unscrambler

2.Capping Machine

3.Labeling Machine
