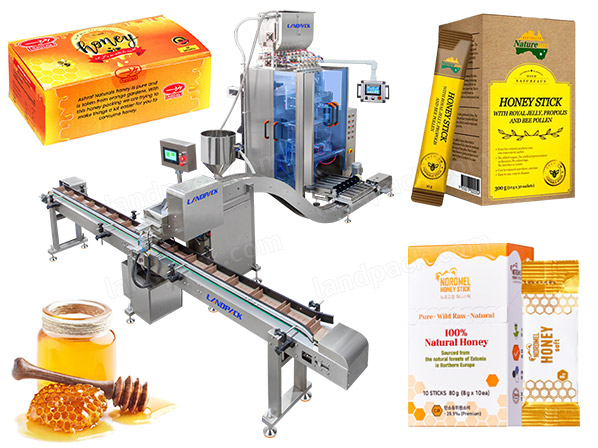

Automatic Honey Stick Bags Packaging Line With Counting Filling Cartooning System

Application:

The multi-lane liquid stick packing machine with a counting and cartoning line is ideal for efficiently packaging various liquid products. Suitable applications include condensed milk, shampoo, shower gel, fruit juice, honey, milk, mouthwash, sauce, jam, jelly, and more. This versatile machine ensures precise filling and streamlined packaging for diverse industries.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

1. Fully automated operation with precise sorting and counting for stable liquid filling in multi-lane packaging.

2. Touchscreen interface allows easy adjustment of filling quantities and packaging parameters.

3. High-speed performance with consistent accuracy, boosting production efficiency.

4. Compact and hygienic stainless steel design suitable for food and pharmaceutical industries.

Application:

The multi-lane liquid stick packing machine with a counting and cartoning line is ideal for efficiently packaging various liquid products. Suitable applications include condensed milk, shampoo, shower gel, fruit juice, honey, milk, mouthwash, sauce, jam, jelly, and more. This versatile machine ensures precise filling and streamlined packaging for diverse industries.

Videos Introduction:

Specification:

Model	LD-280BF	LD-560BF
Track Number	4-6 Track	4-12 Track
Filling Method	1. Volumetric cup; 2. Weigher
Capacity	Max.35 cycles/min
Sachet Size	L: 50-180mm; W: 17-30mm	L: 50-180mm; W: 17-30mm
Film Width & Thickness	Max.280mm; 0.07-0.1mm	Max.560mm; 0.07-0.1mm
Sealing Type	Backsealing/ Stick bag
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Round cutting; 4. Irregular
Air & Power	0.8 mpa, 0.8m³/min, 2.8kw	0.8 mpa, 0.8m³/min, 4.1kw
DIM & WT	13859182005mm; 350kg	168513002005mm; 550kg

Working Process:

1. Laser coding

2. Auto-feeding the paste to the packing machine

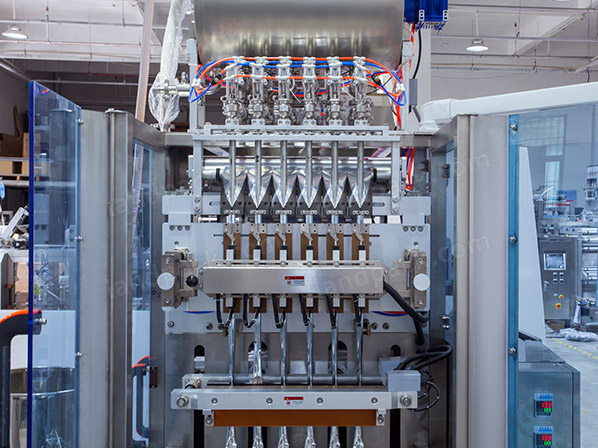

3. Auto making the stick bags and output

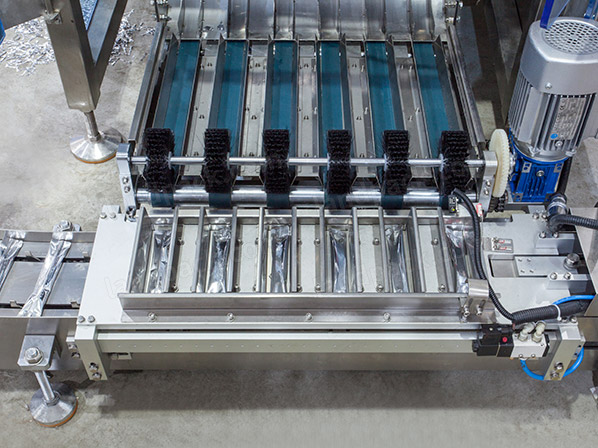

4. Climbing and feeding the stick bag

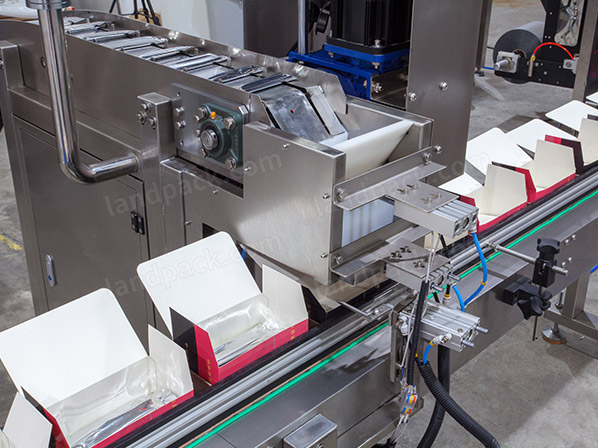

5. Auto filling the sticks into the boxes as required quantity

6. The conveyor will auto-feed the boxes to be filled
