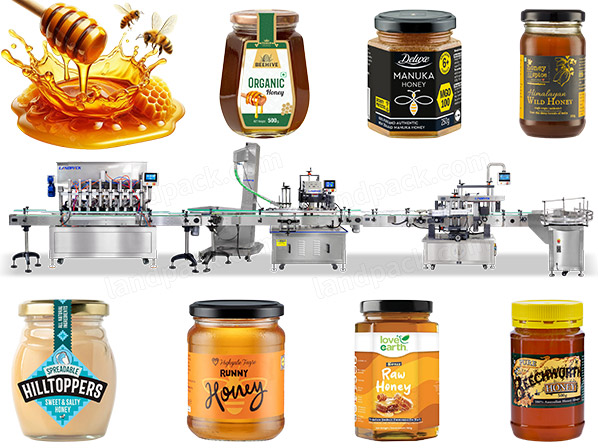

Automatic Honey Piston Pump Bottle Filling Capping And Labeling Line

Application:

The machine is suitable for honey, chili sauce, soy sauce, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate paste, shampoo, body wash, liquid detergent, dishwashing liquid, lotion, cream, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

1. Made of food-grade stainless steel for hygiene and durability with a sleek industrial design.

2. User-friendly operation with simplified maintenance, cleaning, and precision adjustments.

3. Servo-driven anti-drip nozzles (2-10 heads) enable bottom-up filling with individual control.

4. PLC automation ensures consistent performance and seamless workflow coordination.

5. Handles diverse viscosities—liquids, pastes, oils—for food, cosmetics, and pharmaceuticals.

6. High-speed piston filling (200-300 bottles/hour) with ±0.5% accuracy and quiet operation.

7. Reinforced piston system for particle-rich sauces, preventing clogs and leaks.

8. Optimized horizontal mixing/pushing eliminates oil separation and boosts output.

9. Compact, low-maintenance build with extended lifespan for small/medium production lines.

Application:

The machine is suitable for honey, chili sauce, soy sauce, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate paste, shampoo, body wash, liquid detergent, dishwashing liquid, lotion, cream, etc.

Packaging Material: HDPE, Aluminum, Plastic, Glass, etc.

Videos Introduction:

Specification:

Model Name	LD-ALF01
Filling Range	50-1000ml (Customizable)
Filling Speed	20-35 bottles/min
Measurement Accuracy	±1%
Power	220V, 50Hz, 1KW
Working Pressure	0.6mpa-0.8mpa
Weight	400kg
Dimension	L4004W1175.97H2045(mm)

Working Process:

1.Automatic Bottle Feeder

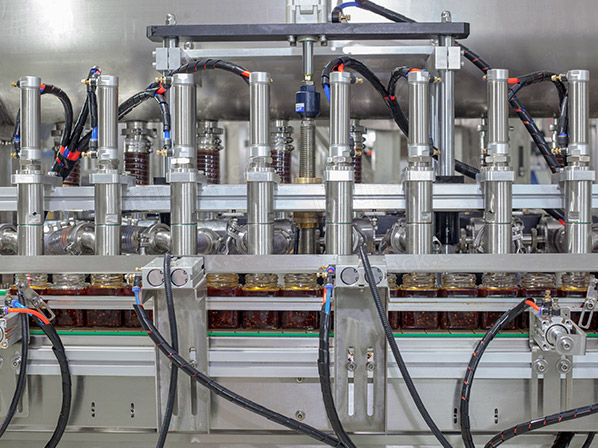

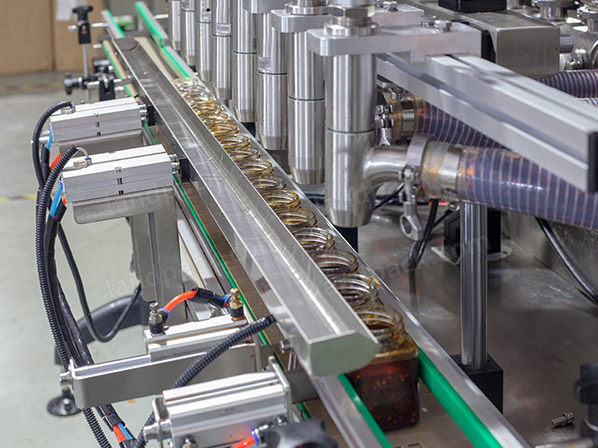

2.Automatic Pistons Filling

3.Automatic Bottle Capping

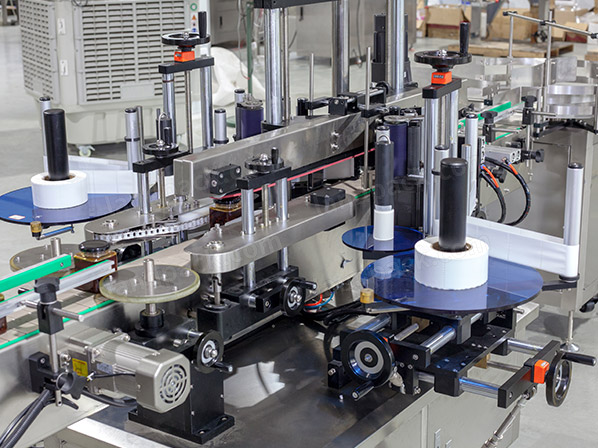

4.Automatic Bottle Labeling

5.Finished Product Output
