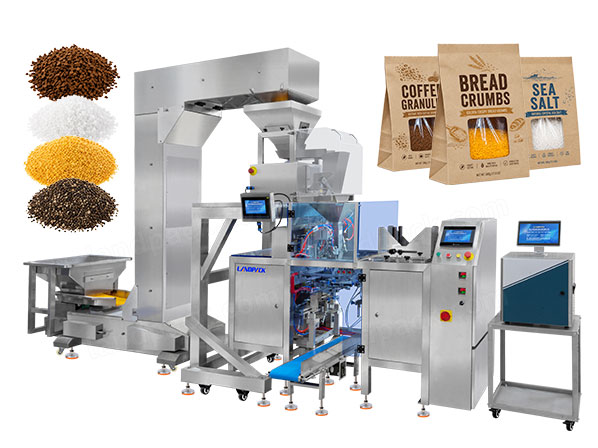

Low Cost Mini Doypack Machine Stand Up Pouch Packing Machine for Kraft Paper Pouch

Application:

This mini doypack machine is suitable for breadcrumbs, panko breadcrumbs, breading mix, crouton pieces, Rice, oats, cereal, corn kernels, mixed grains, peanuts, almonds, cashews, sunflower seeds, pumpkin seeds.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This mini doypack machine is suitable for kraft paper M-shaped pouches, ziplock pouches, stand-up pouches, 3-side seal bags and other heat-sealable premade pouches.

Machine Details:

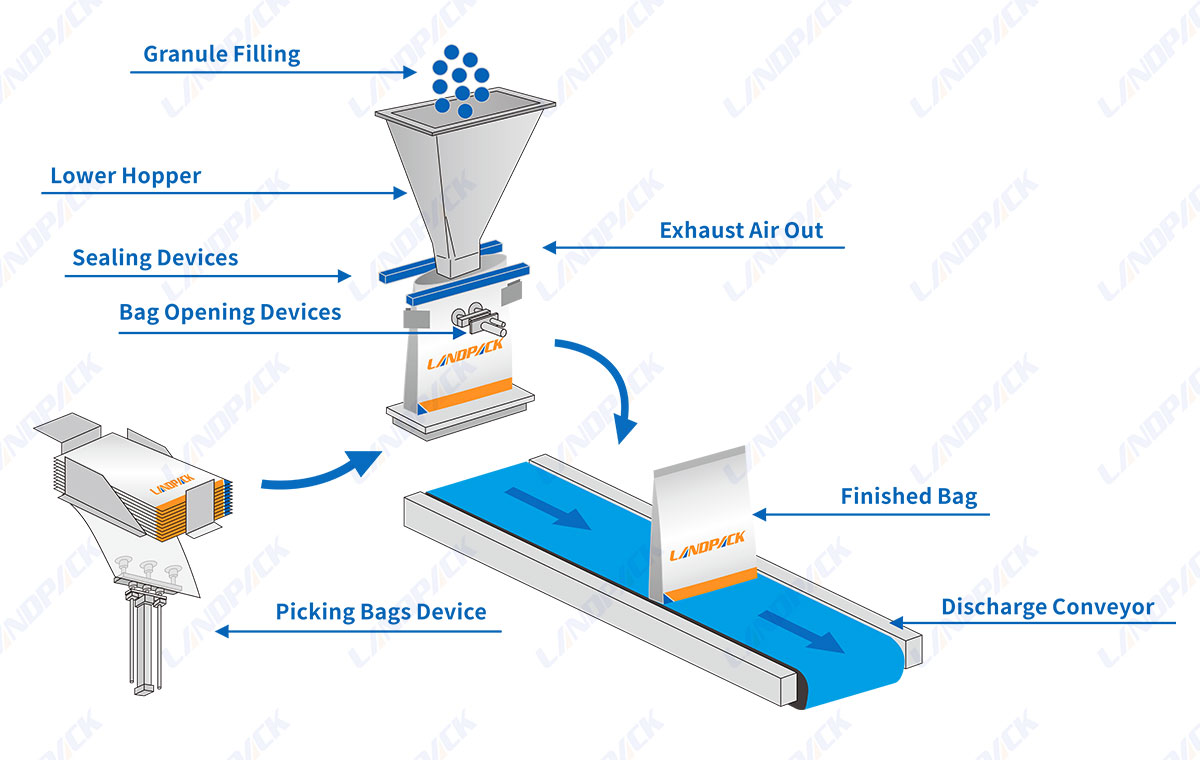

Working Process

1. Breadcrumb Feeding → Z-Type Elevating → Single-Head Linear Weighing → Premade Pouch Feeding → Pouch Opening → Breadcrumb Filling → Heat Sealing → Finished Pouch Output

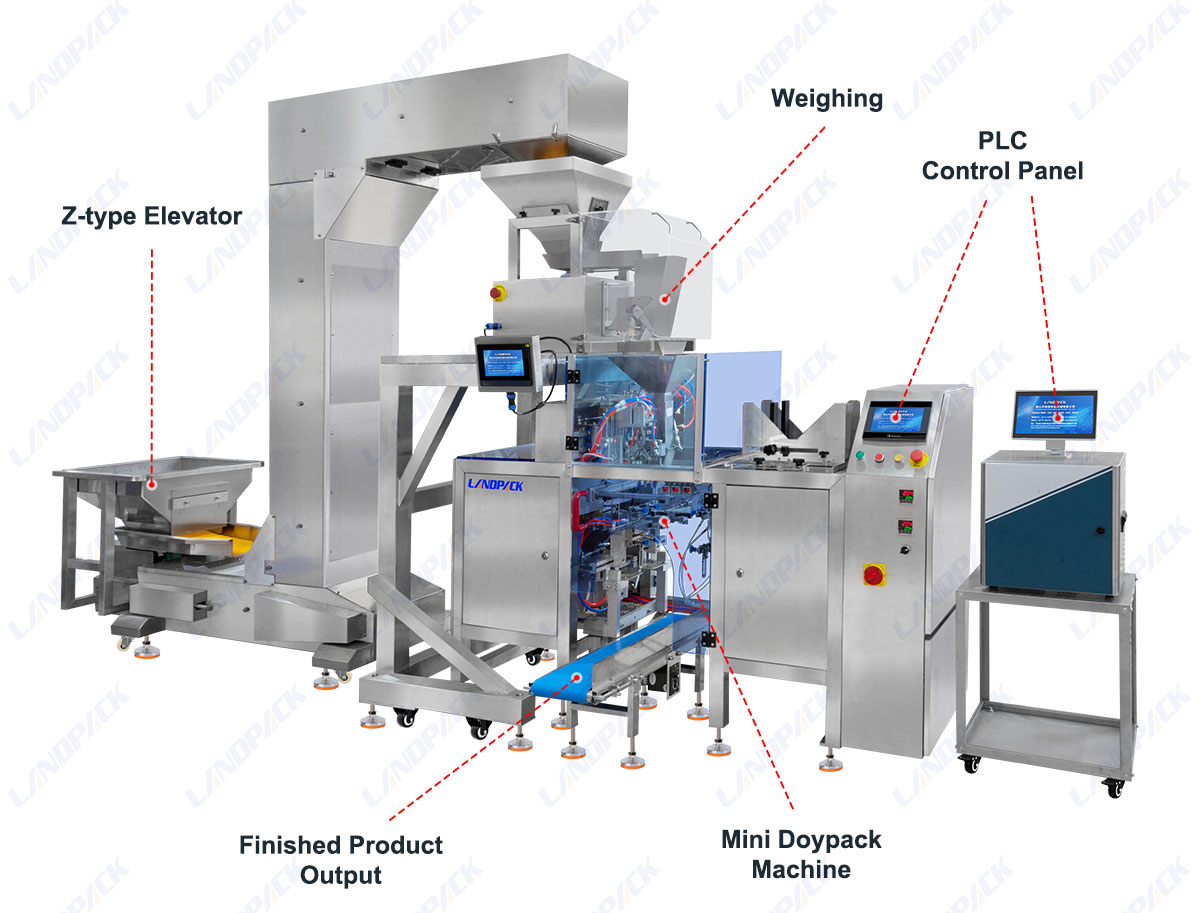

Key Component

Specification

Type	Economic Liquid Premade Stand Up Pouch Doypack Filling Sealing Machine
	LDB-200	LDB-300	LDB-430
Bag Material	Multi-layer Composite Premade Bag（e.g.: PET/PE）
Premade bag type	3-sides sealing bag, stand-up bag）
Upgraded Bag Type	（Need additional purchase of functional device）	Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device
Bag size	70mm≤W≤150mm	80mm≤W≤300mm	80mm≤W≤300mm
	70mm≤L≤150mm	100mm≤L≤300mm	100mm≤L≤430mm
Speed	0~60bags/min	0~15bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Voltage	220V, Single-phase,50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	Standard machine, no additional function
Body Dimension	17706001230mm	17706001360mm
Packing Dimension	18607101550mm	18607101650mm
	Export non-fumigation wooden case

Features:

1. Customized machine height allows easier installation and integration according to the customer's actual workshop layout.

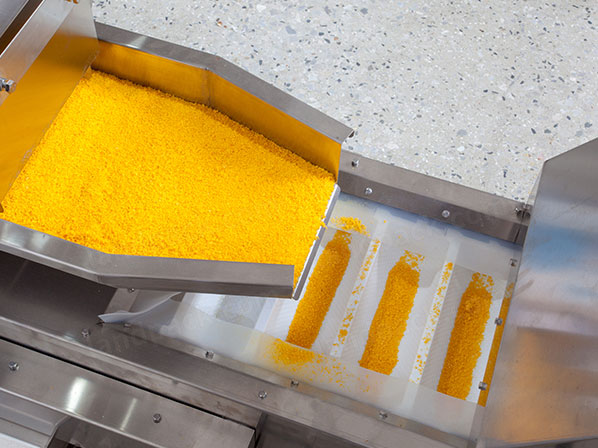

2. Z-type elevator automatically feeds breadcrumbs to the weighing system for continuous production with less manual handling.

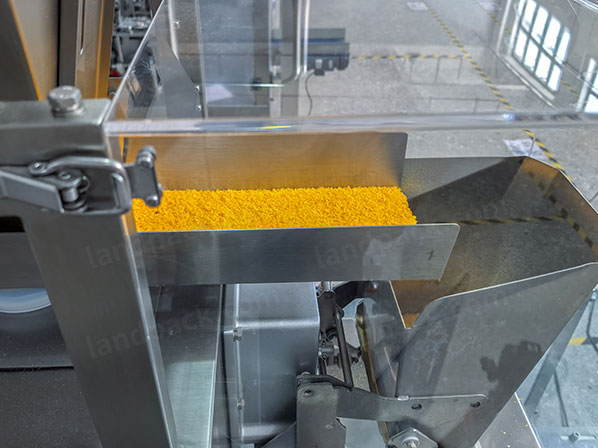

3. Single-head electronic linear weigher provides quantitative weighing and controlled filling for breadcrumbs and other granular products.

4. Inkjet coding printer automatically prints production dates, batch numbers and other required information directly on the pouch.

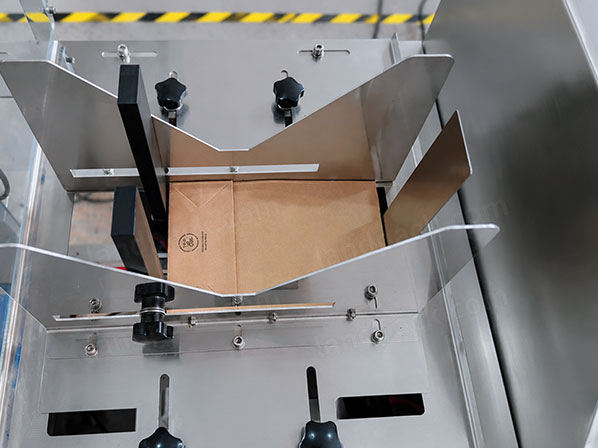

5. Flexible pouch handling system allows one machine to switch between ziplock doypacks and kraft paper M-shaped gusset bags.

6. All pouch feeding, opening, weighing, filling and sealing operations are completed at one working station, significantly reducing machine footprint.

7. No-pouch or pouch-opening-error detection prevents unnecessary product filling and helps reduce material and packaging waste.

8. Compact single-station design combines automatic production with lower equipment and floor-space costs, providing a cost-effective solution for small and medium production.
