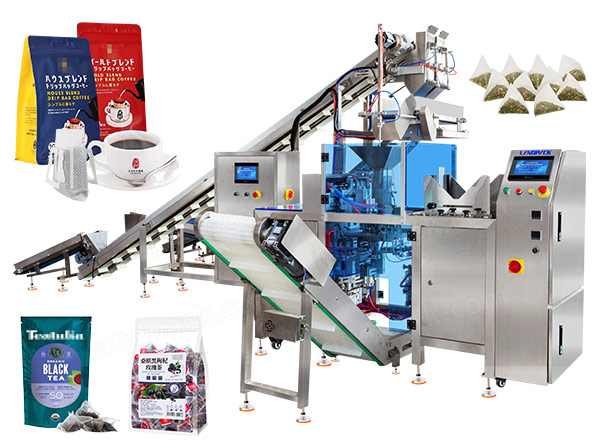

Mini Doypack Packaging Machine | Premade pouch Packing

Application:

The mini doypack machine is ideal for counting and packaging tea bags into premade pouches with high precision. It can automatically count and fill 2, 5, 10, or 20 sachets; it is also applicable for small sachets of coffee, sugar, desiccants, and instant drink powder.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The mini doypack machine is compatible with a wide range of premade pouch styles, including stand-up pouch, doypack, and zipper pouch. These bags provide excellent shelf display and product protection, especially for counted tea sachets or small sample packs.

Machine Details:

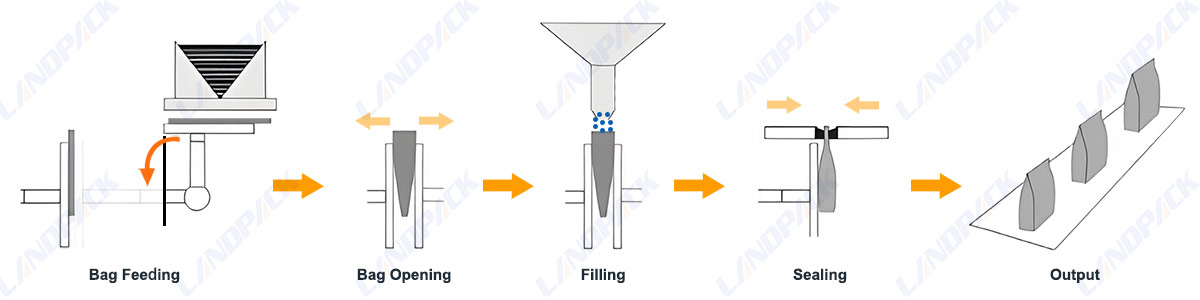

Working Process

1. Bag feeding

2. Bag opening

3. Product Filling

4. Bag Sealing

5. Finished Product Output

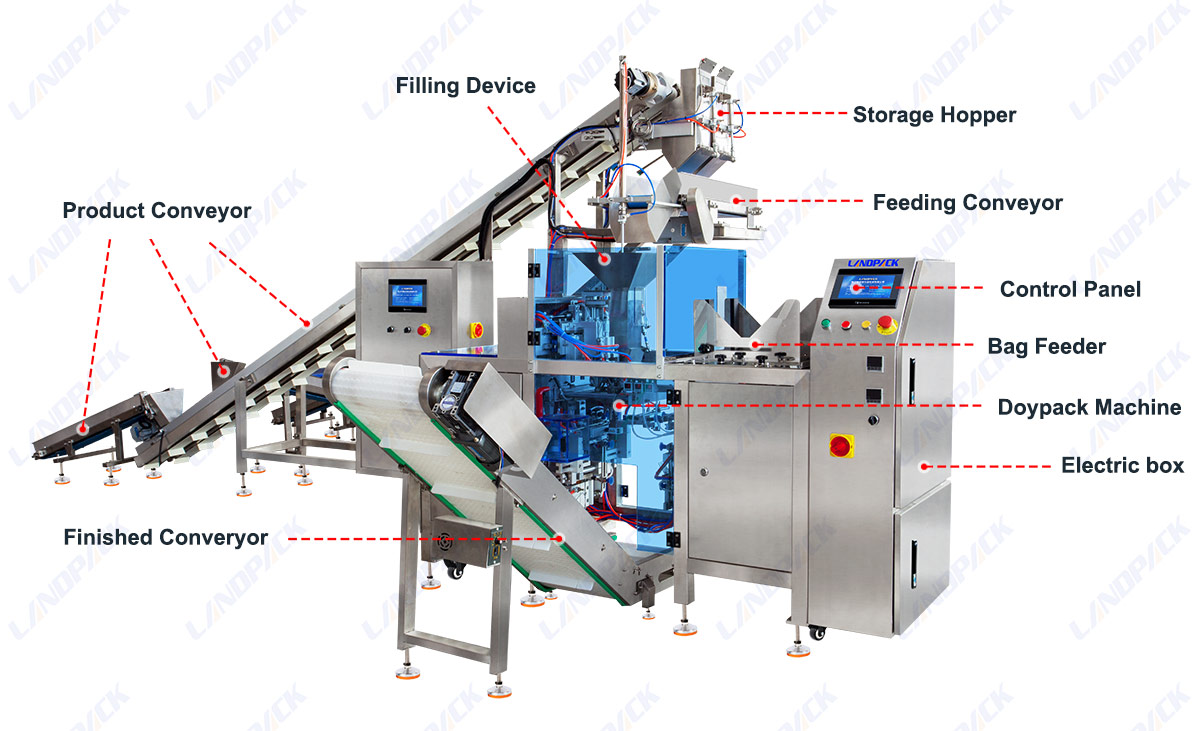

Key Component

Specification

Type	Landpack Mini Doypack Machine - Mini Doypack Packaging Machine
	LDB-200	LDB-300	LDB-430
Bag Material	Multi-layer Composite Premade Bag（e.g.: PET/PE）
Premade bag type	3-sides sealing bag, stand-up bag）
Upgraded Bag Type	（Need additional purchase of functional device）	Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device
Bag size	70mm≤W≤150mm	80mm≤W≤300mm	80mm≤W≤300mm
	70mm≤L≤150mm	100mm≤L≤300mm	100mm≤L≤430mm
Speed	0~60bags/min	0~15bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Voltage	220V, Single-phase,50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	Standard machine, no additional function

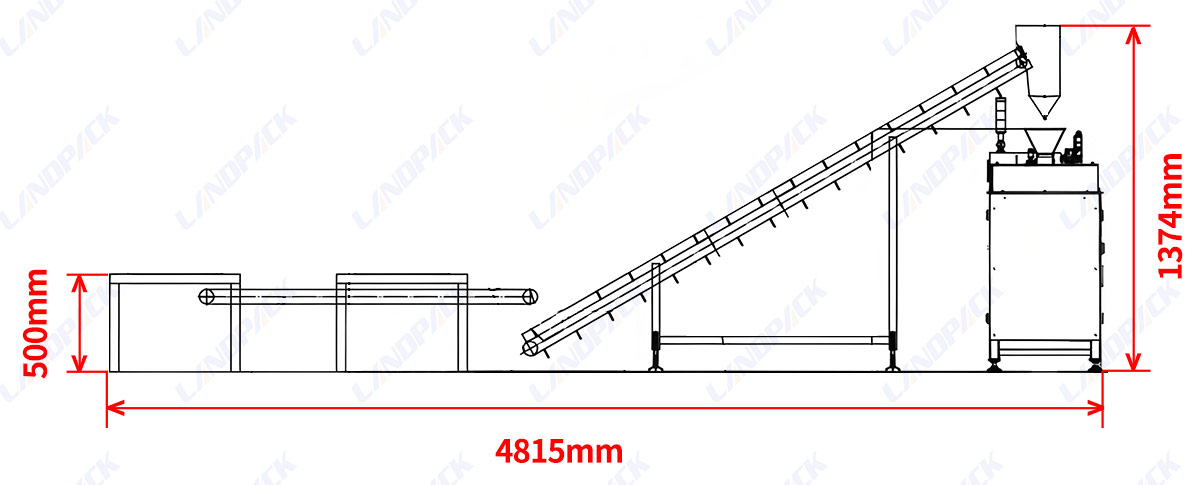

Body Dimension	17706001230mm	17706001360mm
Packing Dimension	18607101550mm	18607101650mm
	Export non-fumigation wooden case

Features:

Machine Image	Benefits

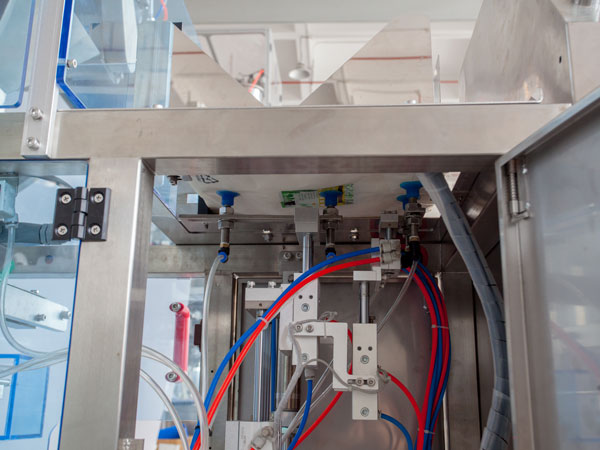

	Bag Pick-up System A bag magazine neatly stores premade pouches while an automatic vacuum arm picks them up and delivers each to their respective station. An adjustable design enables quick changes for different pouch sizes for stable and continuous feeding.

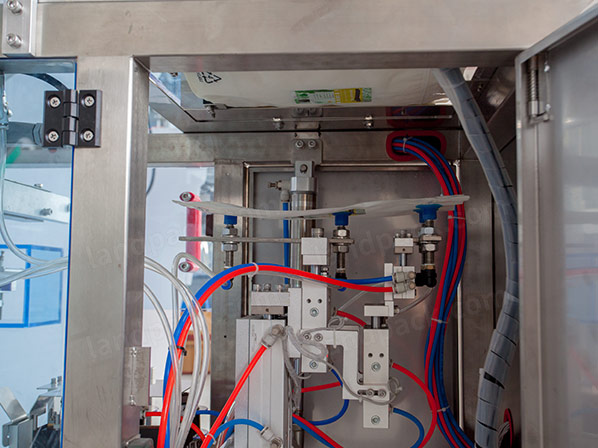

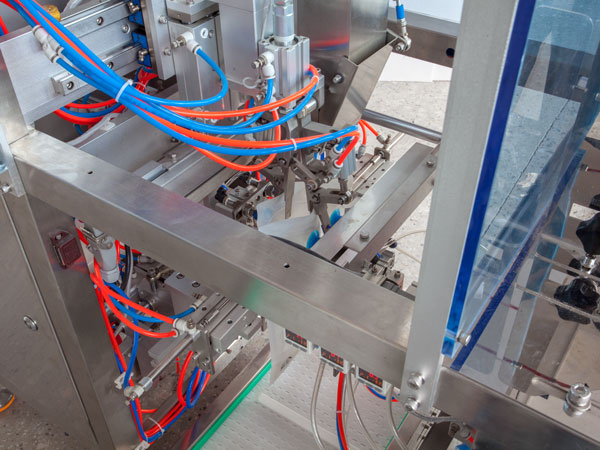

	Bag Opening and Detection Station Air blowing and suction nozzles with sensors ensure proper opening. Unopened or defective bags are automatically rejected to minimize product loss and ensure a sanitary operation.

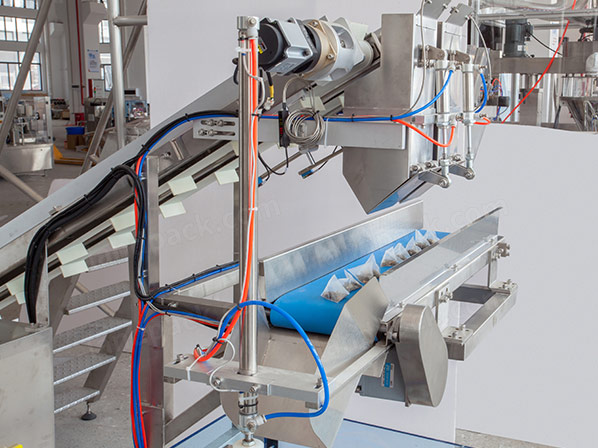

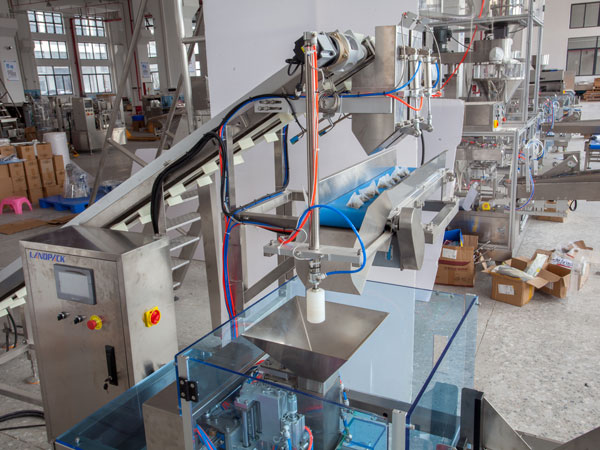

	Filling Station Our filling station features a counter for counting product quantity, providing accurate dosing and smooth filling while meeting hygiene standards for granule products.

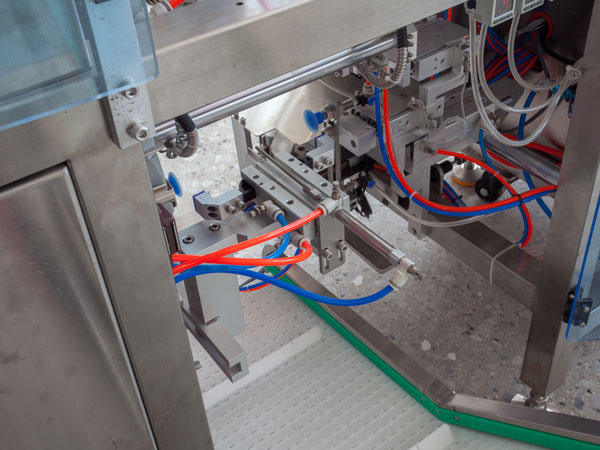

	Sealing Station After filling, pouches are sealed by temperature-controlled jaws for a tight and professional finish. Time and temperature settings can be altered according to material types as well as other special considerations like date coding or tear notches if desired.

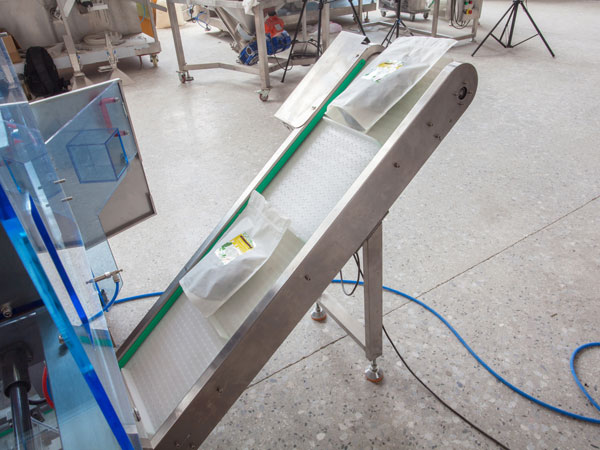

	Output Conveyor This entire range is operated by the PLC control system, which has touchscreen interface. Operators can track, adjust parameters, and change product settings rapidly. Complete synchronization between packaging and sandwiching processes ensures a seamless, continuous production.

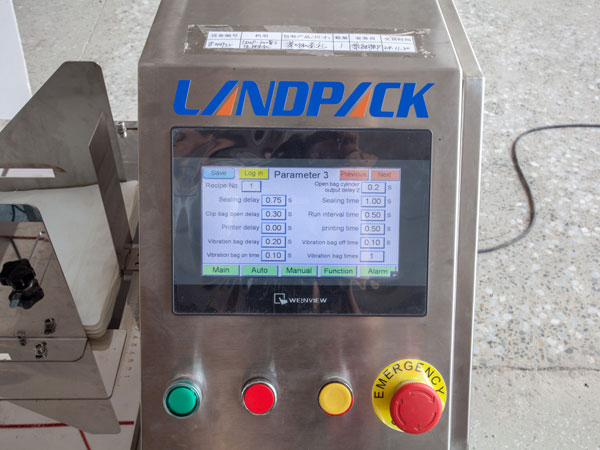

	PLC Control System Our touchscreen PLC control system makes parameter setup, recipe storage, and fault alarms effortless for user-friendly operation. Real-time monitoring ensures optimal performance with safe user-friendliness.
