Mini Doypack Machine | Low-Cost Zipper Bag Packing Machine

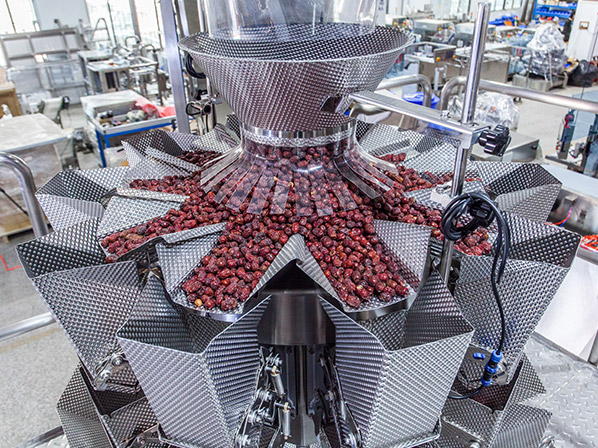

1.High-Speed Multi-Head Electronic Scale: Delivers precise batch weighing of granular, flake, strip and block products at up to 120 bags/minute.

2.All-in-One Workstation: Integrates bag feeding, automatic opening, precision weighing, filling, sealing, ink-jet coding and metal detection in a single compact footprint.

3.Versatile Pouch Compatibility: Supports zipper pouches, retort pouches and stand-up pouches without tooling changes.

4. User-Friendly Touchscreen HMI: Intuitive controls enable recipe storage, rapid product changeovers and real-time production monitoring.

5. Adjustable Filling Range: Handles weights from 10 g to 5 kg with quick-release nozzles for powders, granules and liquids.

6. Advanced Metal Detection: Rejects ferrous, non-ferrous and stainless contaminants to ensure food-safety compliance.

7. Precision Ink-Jet Coding: On-demand date, batch and logo printing with simple on-screen formatting.

8. Quick-Clean Design: Tool-less access to all contact parts, stainless-steel frame and wash-down–rated components for fast sanitation.

7. Energy-Efficient Operation: Low power consumption and sleep-mode standby reduce operating costs.

8. Robust Construction & Support: Heavy-duty aluminum frame, CE-certified safety guards and 24/7 remote diagnostics for maximum uptime.

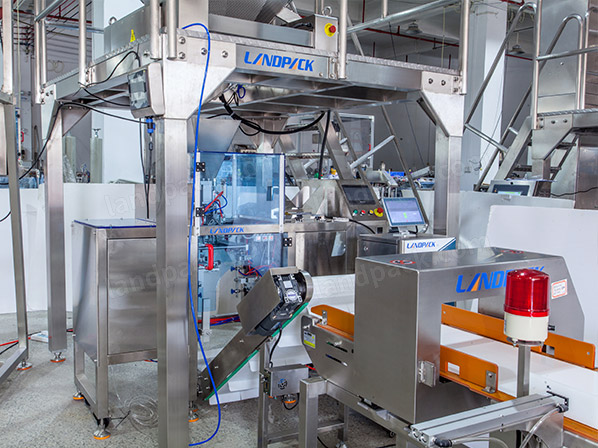

The Mini Doypack Zipper Bag packing machine, equipped with a precision multi-head electronic scale, handles a wide range of granular, flake, strip and block foods—from nuts, beans and cereals to frozen meat, fruit pulp, pickles, olives, peeled garlic, bamboo shoots, pasta and seasoned meats. In one compact workstation it automates bag feeding, opening, weighing, filling, sealing, ink-jet coding and metal detection. Compatible with zipper pouches, retort pouches and stand-up pouches, its intuitive touchscreen HMI ensures rapid changeovers, maximized throughput and minimal floor space—ideal for food, pharmaceutical and chemical packaging lines.

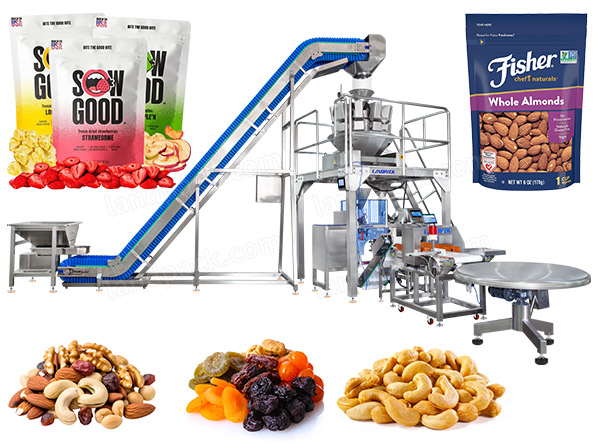

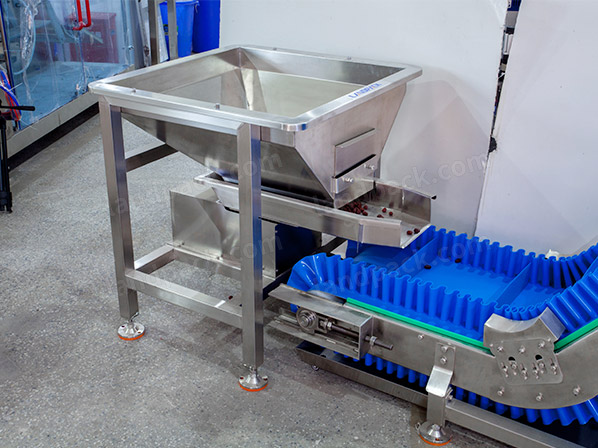

1.The conveyor conveys materials to the multi head electronic scale

2.Inkjet printer prints the information

3.Automatically bag feeding

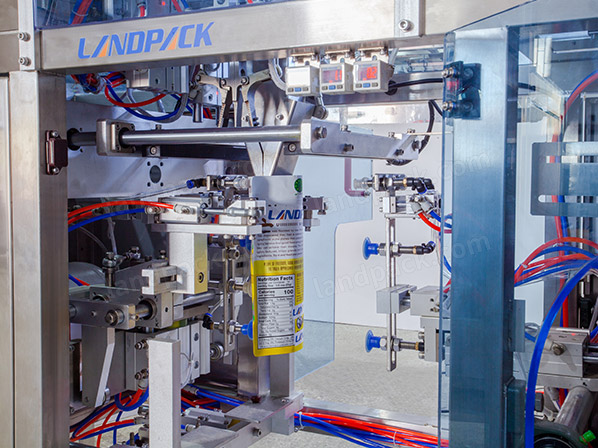

4.Automatically zipper&bag opening

5.Automatically filling

6.Sealing

7.Output

8.Metal detector

9.Finally collected on the finished product turntable
