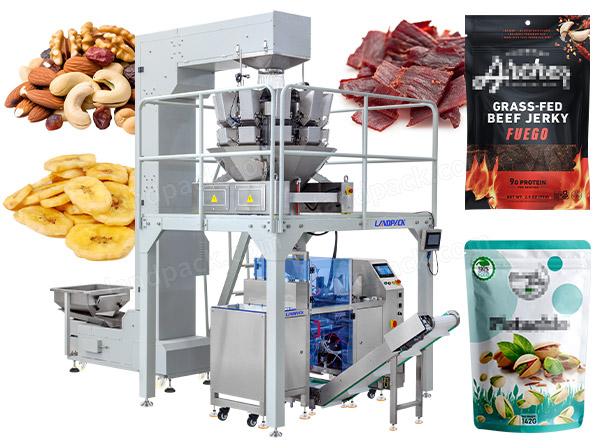

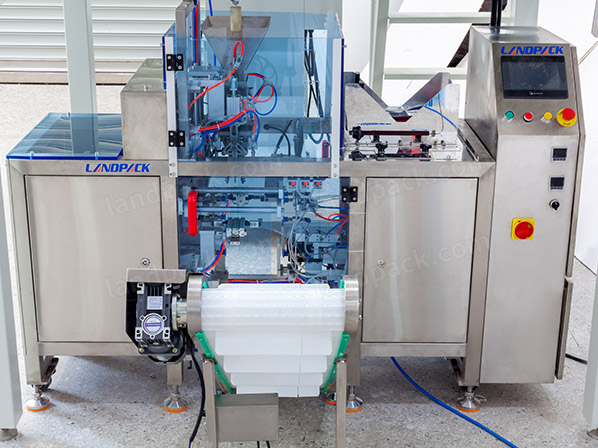

Automatic Mini Doypack Machine Beef Jerky Packing Machine

Application:

The LDGP-300 Mini doypack machine with 10-Head Combination Weigher is widely used for accurate weighing and packaging of granular and small particle products such as sugar, salt, coffee granules, nuts, beans, beef jerky, and pet food.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The LDGP-300 is compatible with a wide range of premade pouch types, including spout pouches, stand-up pouches, zipper bags, and gusset pouches. These flexible packaging options provide excellent sealing performance, moisture and oxidation protection, and extended shelf life.

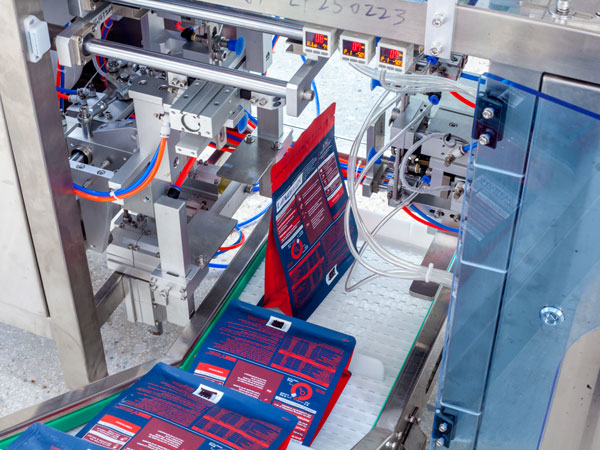

Machine Details:

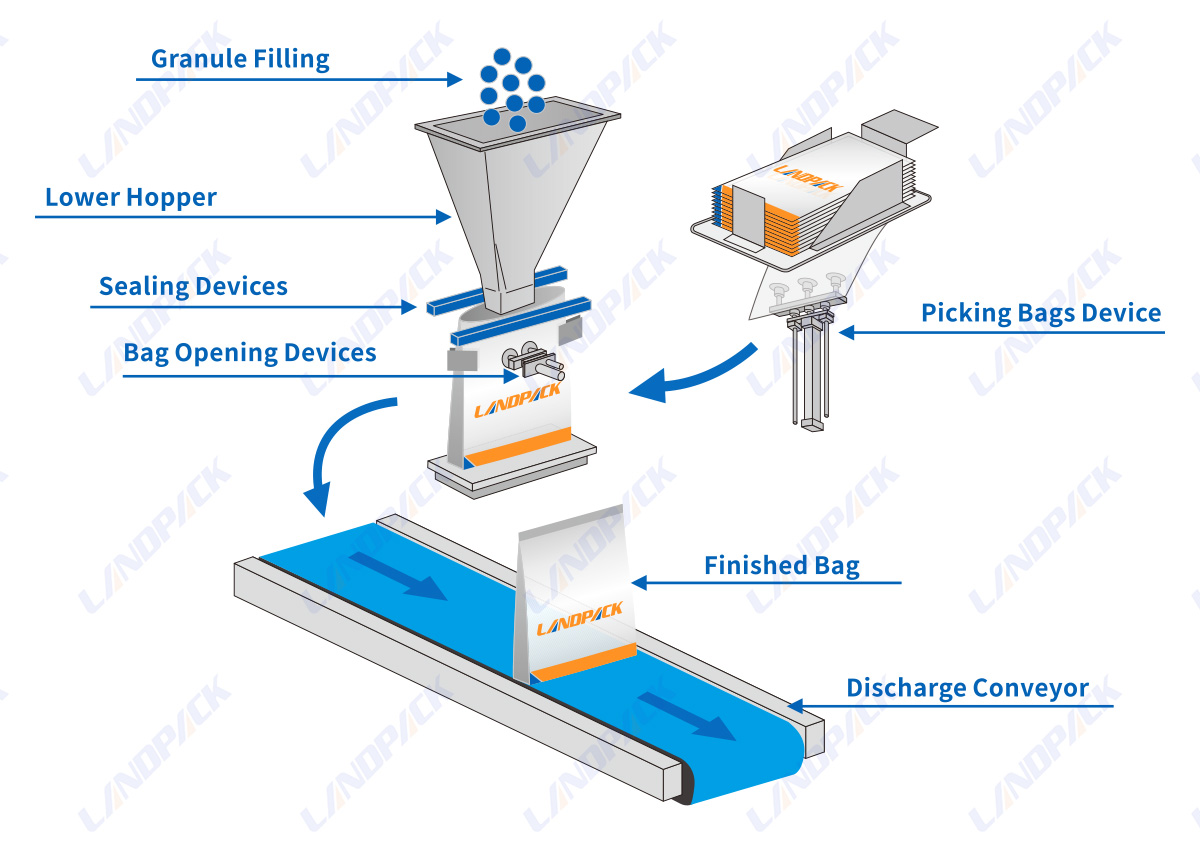

Working Process

1. Bag feeding

2. Product Conveying

3. Multi Heads Weighing

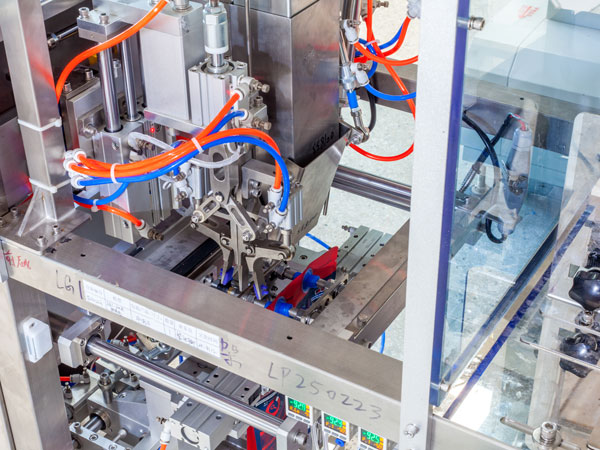

4. Bag opening

5. Filling

6. Sealing

7. Product Output

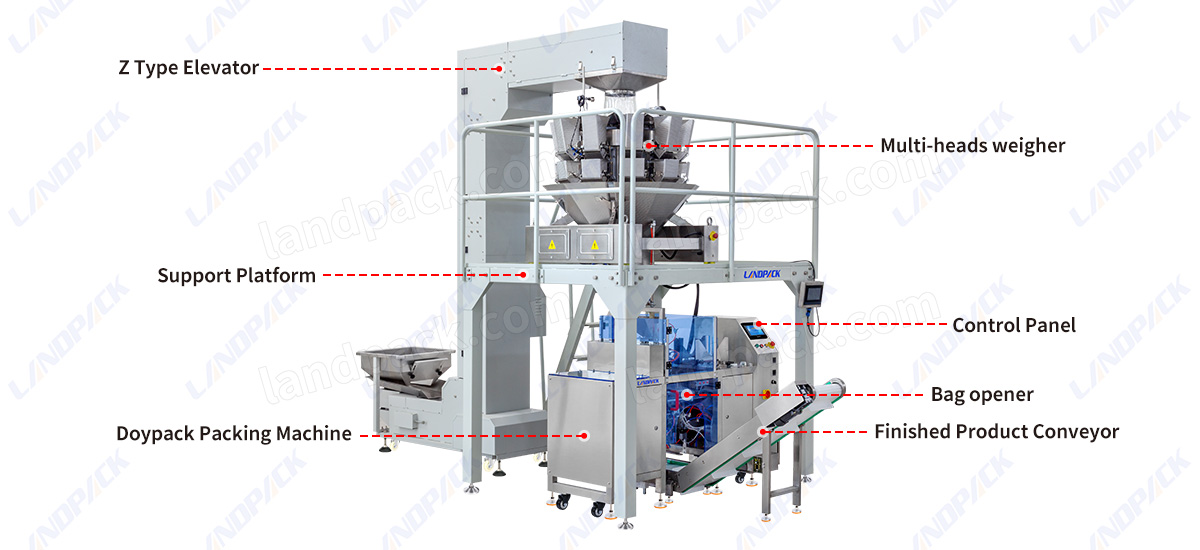

Key Component

Specification

Type	Automatic Mini Doypack Machine Beef Jerky Packing Machine
	LDB-200	LDB-300	LDB-430
Bag Material	Multi-layer Composite Premade Bag（e.g.: PET/PE）
Premade bag type	3-sides sealing bag, stand-up bag）
Upgraded Bag Type	（Need additional purchase of functional device）	Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device
Bag size	70mm≤W≤150mm	80mm≤W≤300mm	80mm≤W≤300mm
	70mm≤L≤150mm	100mm≤L≤300mm	100mm≤L≤430mm
Speed	0~60bags/min	0~15bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Voltage	220V, Single-phase,50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	Standard machine, no additional function
Body Dimension	17706001230mm	17706001360mm
Packing Dimension	18607101550mm	18607101650mm
	Export non-fumigation wooden case

Features:

Machine Image	Benefits

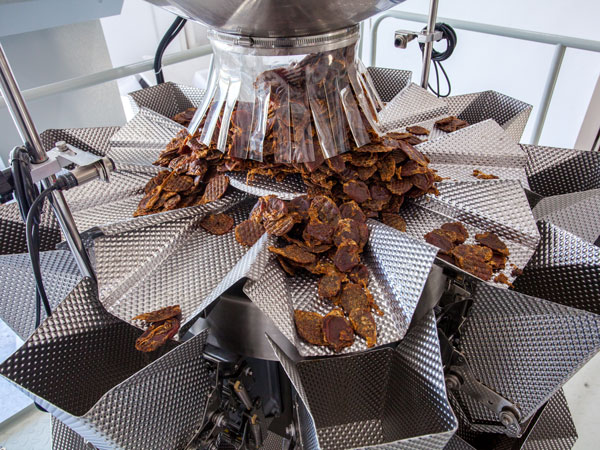

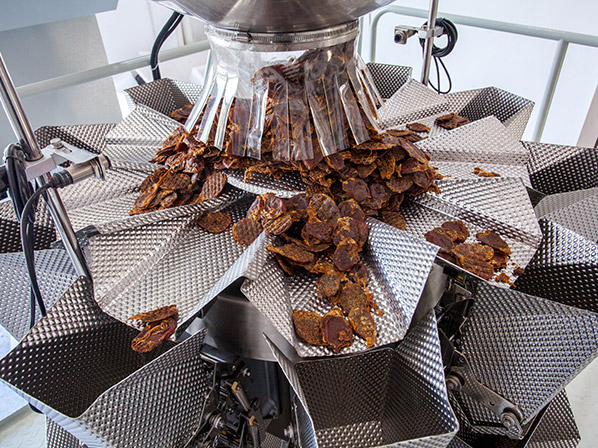

	10-Head Combination Weigher High-speed, high-accuracy, weighting by determining the most effective combination of buckets to achieve the desired weight.Smart algorithms limit the loss of weight and material perfect for small or granular products like popcorn, beef jerky

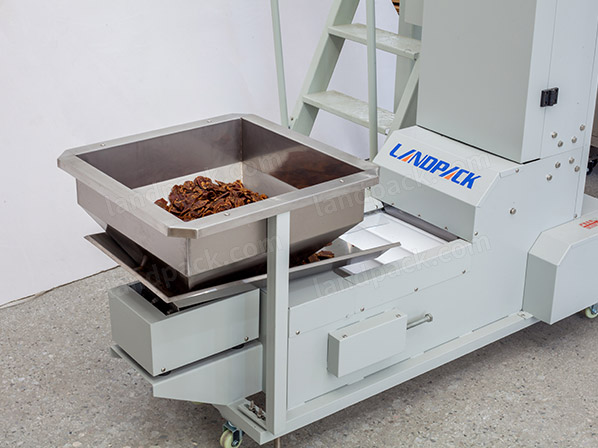

	Feeding System (Z-Type Elevator) Transfers bulk materials evenly over at the very top of the weighter.It ensures that the feed is consistent to ensure accurate weighs and seamless operation.
	Discharge Chute and Timing Hopper Transfers the weighted materials into the filling pouch with exact timing.Clean discharge, and an synchronized operation between the filling and weighing.
	Control System (PLC + Touch Screen) Central control of the entire line, which allows for easy setting of parameters (weight speed, seal time, speed, etc. ).Multiple language interfaces are supported and recipe storage to facilitate quick switchovers of products.
	Sealing & Coding Device Provides reliable heat sealing as well as optional date/batch code.It can be used to seal various types of pouches including stand-up pouches and zip pouch seal.
	Output Conveyor The bottom inkjet printer marks production dates, batch numbers, or barcodes clearly, followed by a high-speed labeling unit that applies wrap-around or dual-side labels. Optional vision inspection guarantees accurate labeling and a professional final presentation.
