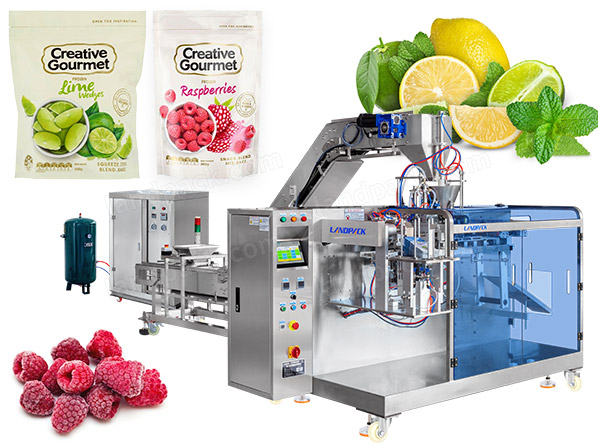

Automatic Zipper Pouch Doypack Packing Machine With Chain Bucket Feeding

Application:

It is suitable for packaging various granular, block, strip and stick products, such as fruits, snacks, egg rolls, frozen foods, pills, nuts, puffed foods, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1.Fully Automated Workflow: From manual product loading, chain bucket feeding, to automatic bag dispensing, opening, filling, vacuuming, nitrogen filling, sealing, and product discharge.

2.Freshness Preservation: Integrated vacuum and nitrogen flushing functions help maintain product freshness and extend shelf life.

3.Space-Saving Design: Compact structure that minimizes floor space usage, ideal for limited factory layouts.

4.Easy Operation: User-friendly interface with simple controls for fast setup and smooth operation.

5.Flexible Pouch Compatibility: Suitable for various premade pouches including flat, stand-up, and zipper bags.

6.Reliable Components: Equipped with internationally recognized electric brands to ensure performance stability and product quality.

7.Cost-Efficient: Low initial investment and maintenance cost make it an economical choice for small to medium-scale operations.

Application:

It is suitable for packaging various granular, block, strip and stick products, such as fruits, snacks, egg rolls, frozen foods, pills, nuts, puffed foods, etc.

Suitable Pouch: Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.

Videos Introduction:

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

Workflow:

1.Manual feeding product

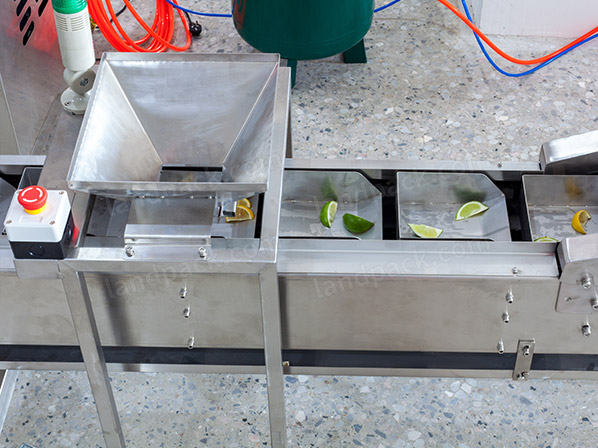

2.chain bucket feeding

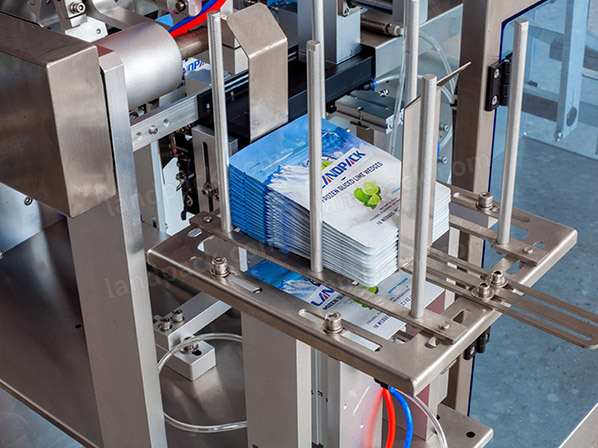

3.Automatic bag giving

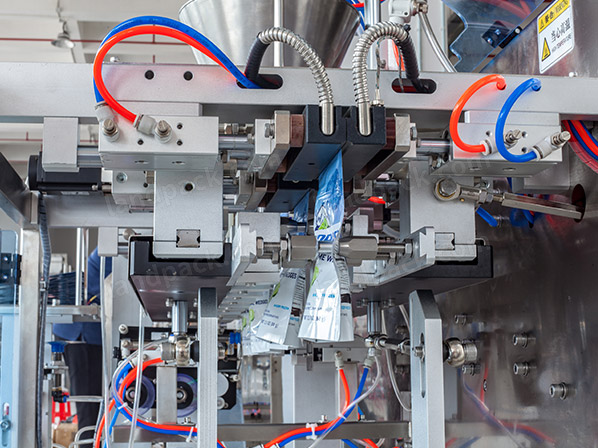

4.Bag Opening

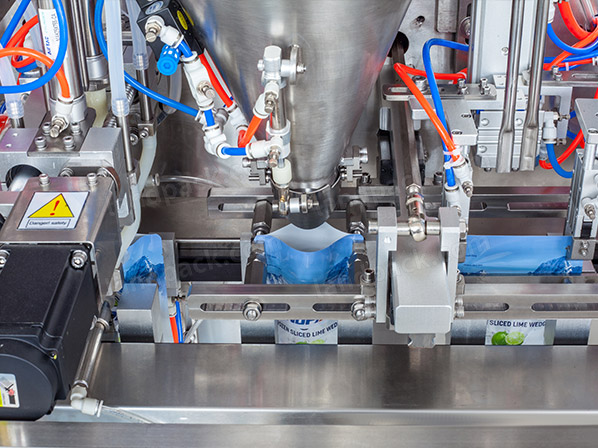

5.Auto Filling

6.Vacuuming + filling with nitrogen

7.Auto Sealing

8.Output
