Automatic Multitrack Liquid Stick Packaging Machine Stick Pack Liquid Filling And Boxing System

Packaging Line Composition:

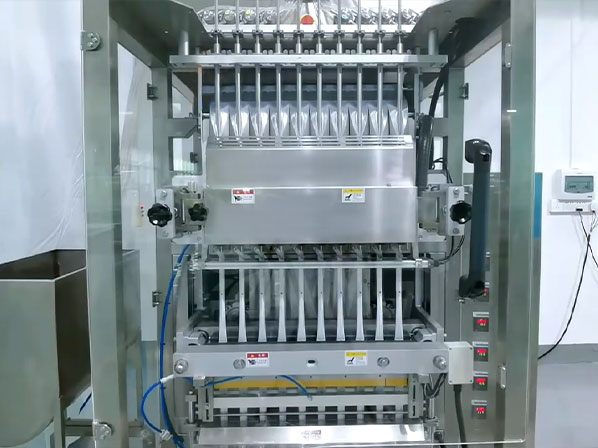

The packaging and cartoning system consists of a multilane liquid satick packing machine, sorting bag equipment and a cartoning machine. It can be packaged into boxes in stick shape.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Packing type:

Features:

1. It can automatically finish measuring, bag making, sealing, cutting, counting, finishing product conveyor, cartoning and other functions;

2. Heavy duty design suits for high speed operation;

3. The contact part of the box and material is made of 304 stainless steel, which meets the requirements of medicines and food production;

4. The equipment is equipped with casters for easy handling and movement.

5. Automatic alarm protection, saving materials, and no wasting film.

Application:

This Packing System widely applied for food, medicine, and chemical liquid products such as ketchup, flavoring, sauce, pasty, shampoo, cream, body wash liquid, and so on.

Videos Introduction:

Specification:

Multi Lane Packing Machine Parameters
Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8m³/min, 2.8kw	0.8 mpa, 0.8m³/min, 4.1kw	0.8 mpa, 0.8m³/min, 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Fully Automatic Cartoning Machine Parameters
Model	LD-200ZH
Paper type	250-400g/㎡(Boxes need come with pre-fold over)
Capacity	30-60 boxes/min
Box type	Gusseted tongue type; Glue spray type
Count way	Fixed number type; Numerable type; Manipulator counting
Boxing way	Ordely type; Unorderly type
Air & Power	0.5-0.8Mpa 0.3m³/min;220V 50/60HZ 2.0KW
Work flow	Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish

Packing type:

1.Sealing type:4 sides sealing;

2.Cutting type:Straight cutting; Zig zag cutting; Round cutting; Irregular
