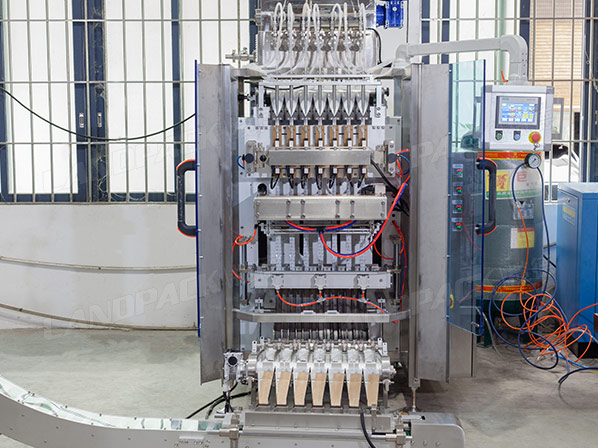

Multi Lane Liquid Stick Packing Machine With Counting Cartoning Machine Line

Application:

Multi lane liquid stick packing machine with counting cartooning machine line is suitable for the packaging of various liquid products, such as ketchup, paste, honey, chili sauce, bean paste, instant noodle sauce, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, jelly, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

The measurement of the magnetic pump is accurate, the error is controlled within ±0.5ml, and it is easy to clean.

Automatic counting, if there is no material, it will stop counting and alarm.

The finished product conveyor track and the ramp conveyor belt are seamlessly linked to ensure that each product falls accurately into the track.

Counting is adjustable to meet different quantity requirements.

Beautiful packaging and firm sealing.

Application:

Multi lane liquid stick packing machine with counting cartooning machine line is suitable for the packaging of various liquid products, such as ketchup, paste, honey, chili sauce, bean paste, instant noodle sauce, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, jelly, etc.

It can adopt all type of 3/4 sided seal bag, stick bag, back sealing bag, box, etc.

liquid stick pack machine

Videos Introduction:

Specification:

Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8m³/min, 2.8kw	0.8 mpa, 0.8m³/min, 4.1kw	0.8 mpa, 0.8m³/min, 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Working Process:

1.Tank with stirring device, filling evenly

2.Magnetic pump filling precisely

3.7 lanes servo pull film

4.Fall into the conveyor hopper correctly

5.Slop conveyor

6.Electric eye counting device

7.Finished bag all into tray precisely

8.Beautiful bag, firm sealing
