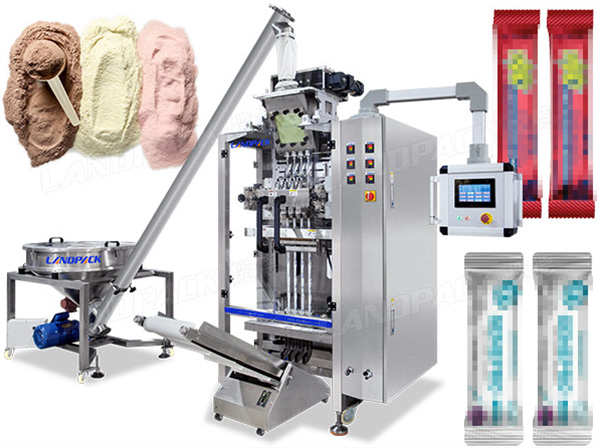

Automatic Multi Lane Powder Stick Packing Machine

Application:

Automatic 4 lane Powder Stick Pack Machine With Screw Feeder, it is suitable for many kinds of powder products, such as flour, milk powder, coffee powder, health powder, medicine powder, glucose, medical powder, nutrition powder, etc.

Details:


Model:LD-280BF/ 560BF
Lane Number:4-12 Line
Filling Method: Auger filling by servo motor
Capacity: Max.35 cycle/ min
Sachat Size; L:50-180mm; W:17-30mm
Film weidth & Thickness:Max.560mm, 0.07-0.10mm;
Sealing type: Back sealing/Stick bag
Cutting type: 1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular
Tel/Whtasapp: +86 18688215960
Features:
Application:
Samples:
Specification:
Packing Type:
Inquiry
Features:

Multi lanes machine can produce multi lanes bags at same time;

Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity;

Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc;

Stainless steel contact part and the machine outer shell, high feature for liquid running environment;

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position;

PLC controller, high function and control the whole machine’s work steps.
Application:

Application: Automatic 4 lane Powder Stick Pack Machine With Screw Feeder, it is suitable for many kinds of powder products, such as flour, milk powder, coffee powder, health powder, medicine powder, glucose, medical powder, nutrition powder, etc.
Samples:
Specification:
 Model  LD-280BF  LD-560BF
 Lane number  4-6 Line  8-12 Line
 Filling Method  Auger filling by servo motor
 Capacity  Max.35 cycle/ min
 Sachat Size  L:50-180mm; W:17-30mm  L:50-180mm; W:17-30mm
 Film weidth & Thickness  Max.280mm, 0.07-0.10mm  Max.560mm, 0.07-0.10mm
 Sealing type  Back sealing/Stick bag  Back sealing/Stick bag
 Cutting type  1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular
 Air & Powder  0.8Mpa 0.8m3/min; 3.5kw   0.8Mpa 0.8m3/min; 5.5kw
 Dimension & weight  1385*918*2005mm;350kg  1685*1300*2005mm;550kg
Packing Type:

1. Sealing type: Back sealing/Stick bag;

2.Cutting type: Straight cutting; Zig zag cutting; Round cutting; Irregular
