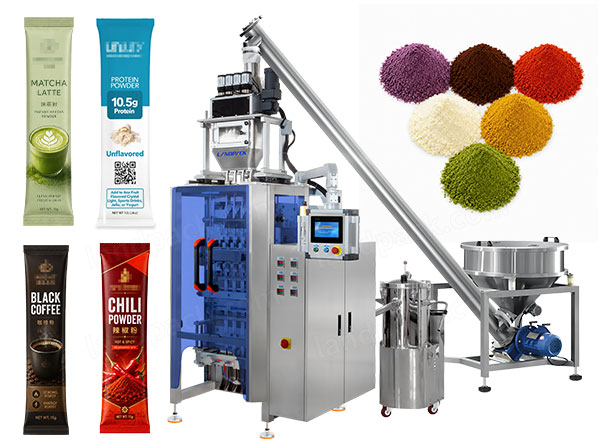

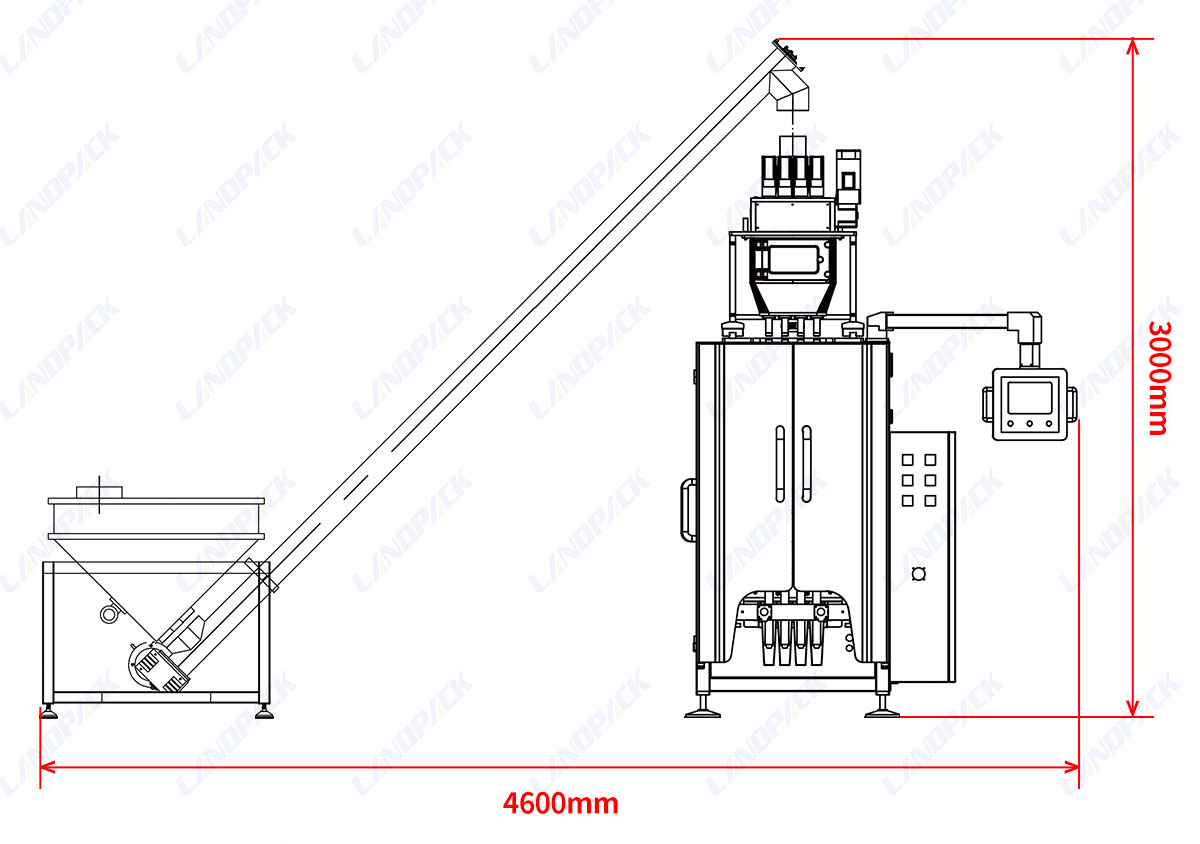

Automatic Mulit Lane Powder 3 / 4 Sides Seal Stick Packing Machine with Screw Conveyor

Application:

This stick powder packing machine is suitable for various powder products requiring high-speed sachet packaging. It is widely used for coffee powder, instant coffee, milk powder, glucose powder, protein powder, collagen powder, meal replacement powder, cocoa powder, seasoning powder, soup powder.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

Application:

This stick powder packing machine is suitable for 3-side seal sachets, 4-side seal sachets, stick packs, single-dose powder sachets, pharmaceutical powder packs, nutritional supplement sachets, coffee sticks, sugar sticks, and instant beverage packaging formats.

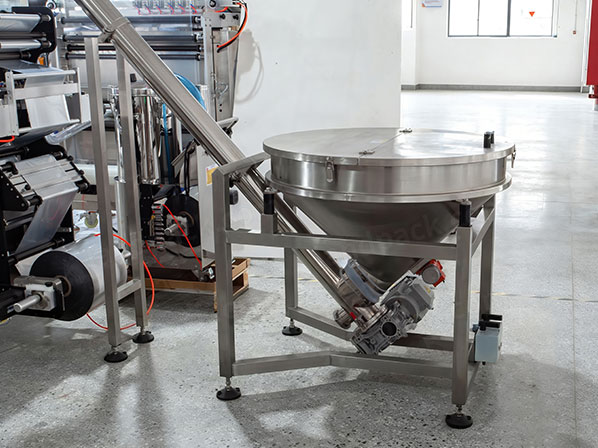

Machine Details:

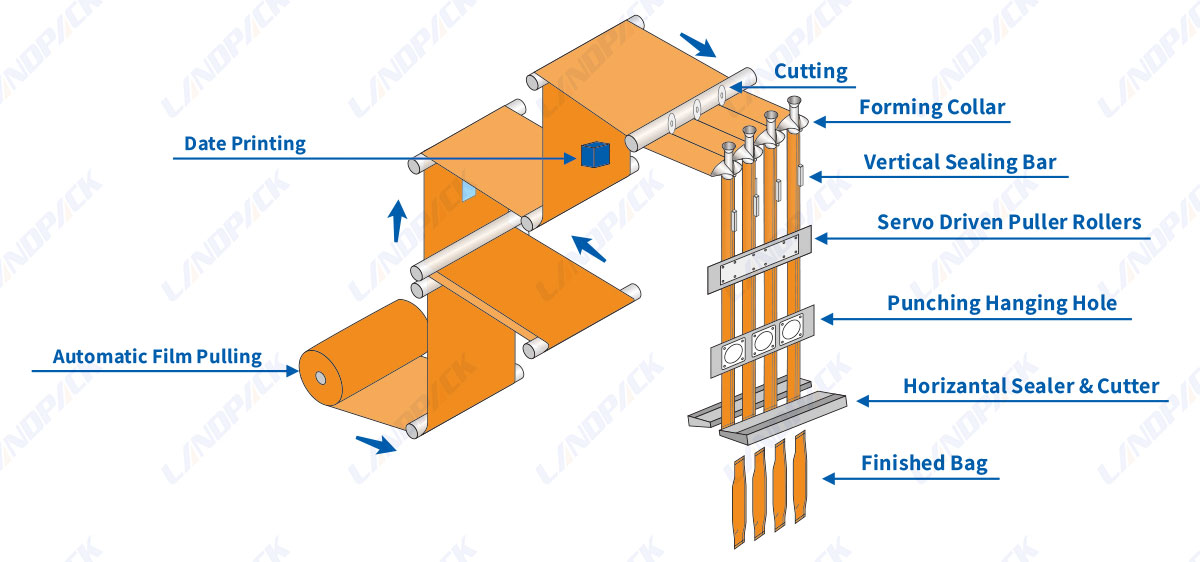

Working Process

1. Powder Feeding → Hopper Storage → Auger Dosing → Film Feeding → Bag Forming → Powder Filling → Heat Sealing → Cutting → Finished Product Output

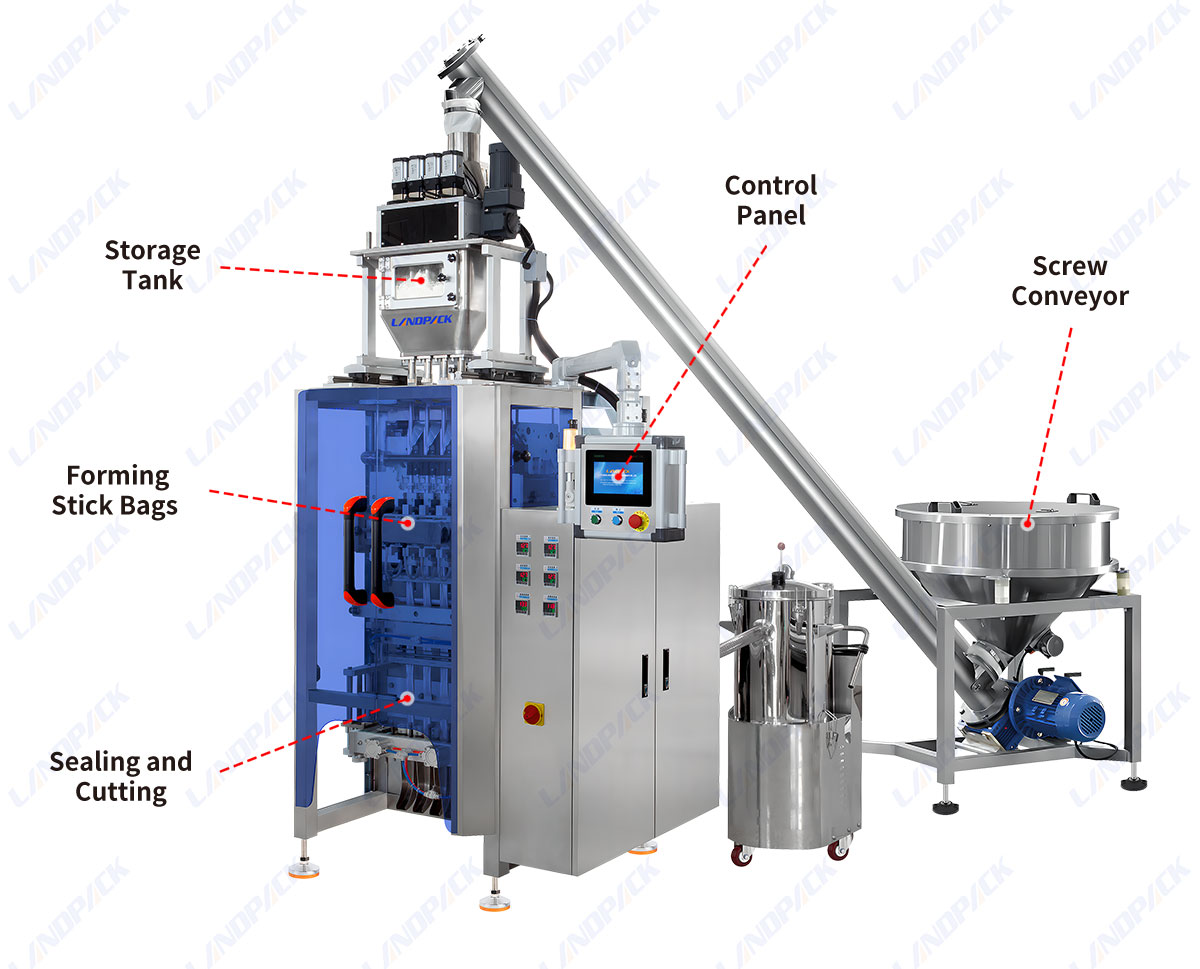

Key Component

Specification

Model	LDFS-480D	LDFS-720D	LDFS-960D	LDFS-1200D
Track Number	4-6 Track	4-8 Track	4-10 Track	4-12 Track
Filling Method	Auger filling by servo motor
Capacity	20-40 bags/min/lane
Sachet Size	L: 45-120mm; W: 50-60mm	L: 45-120mm; W: 50-90mm	L: 45-120mm; W: 50-120mm	L: 45-120mm; W: 50-150mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm	Max.1200mm; 0.07-0.1mm
Sealing Type	4side sealing
Cutting Type	1. Straight cutting, 2. Zig-zag cutting, 3. Continous cutting
Air&Power	0.8MPA, 0.8m³/min; 2.8kw	0.8MPA, 0.8m³/min, 4.1kw	0.8MPA, 0.8m³/min, 5.5kw	0.8MPA, 0.8m³/min, 6.5kw
DIM&WT	95014701750mm, 300kg	115316541750mm, 400kg	141516862130mm, 500kg	222022102600mm, 800kg

Features:

1.Machine frame is made of food-grade SS304 stainless steel, suitable for food and powder packaging applications.

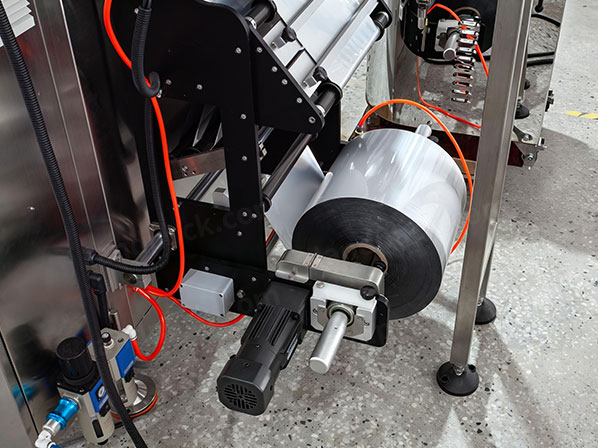

2.Servo-driven film pulling system ensures smooth operation, stable bag length, and accurate positioning.

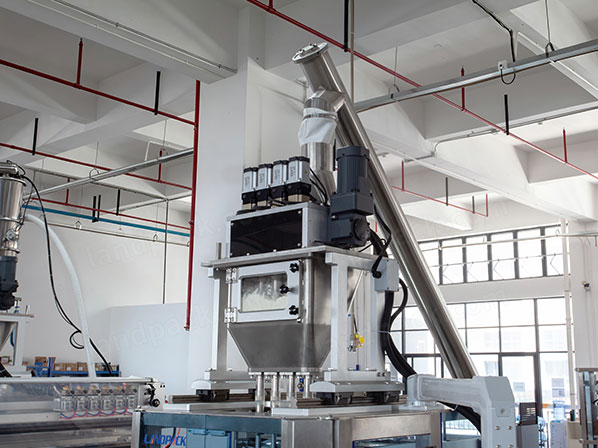

3.Independent servo-controlled auger dosing system provides high filling accuracy for powder products.

4.Four-lane structure produces multiple sachets simultaneously to improve packaging productivity.

5.Roll film forming, sealing, and cutting are completed automatically with stable performance.

6.Integrated dust removal device helps keep sealing areas clean and improves package quality.

7.Clear date coding, attractive seals, and smooth cutting edges enhance finished package appearance.

8.Siemens PLC and touchscreen control system provide user-friendly operation and convenient parameter adjustment.
