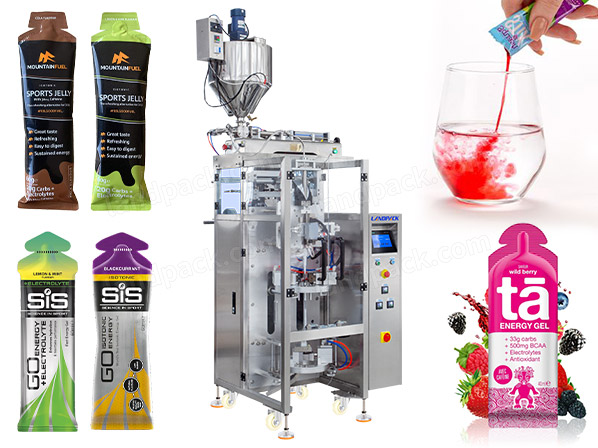

Single Lane Liquid Special Shaped Stick Bag Packing Machine

Application:

The Packaging Machine is ideal for packaging a variety of liquids, including coffee creamers, sauces, honey, and detergents. It features a fully automatic process—heating, mixing, piston pump filling, bag forming, coding, sealing, and custom die-cutting—making it perfect for industries like food, cosmetics, and household products. The machine supports both thick and thin liquids, producing 20–30 pouches per minute with attractive, custom-shaped designs.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Fully Automated Process: Integrates heating, mixing, piston pump filling, bag forming, coding, sealing, and custom die-cutting for efficient operation;

2. Customizable Bag Shapes: Equipped with irregular mold cutting to produce aesthetically pleasing, uniquely shaped pouches;

3. Versatile Filling Capability: Utilizes a piston pump system suitable for both viscous and non-viscous liquids, ensuring precise dosing;

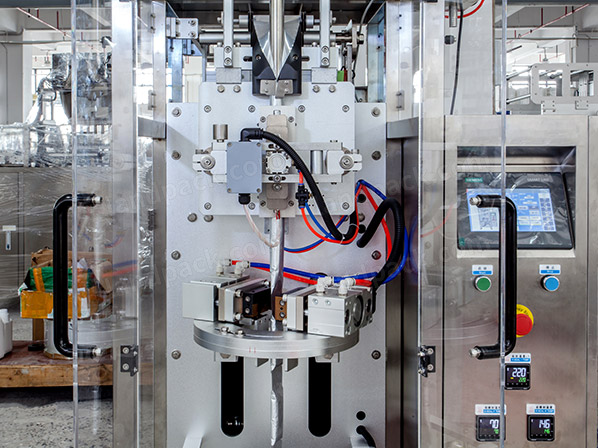

4. User-Friendly Interface: Features a Siemens touchscreen with PLC control for stable, intelligent, and straightforward operation;

5. High Efficiency: Achieves a packing speed of 20–30 bags per minute, enhancing productivity;

6. Durable Construction: Built with stainless steel materials, ensuring longevity and compliance with hygiene standards;

7. Accurate Temperature Control: Incorporates an intelligent temperature controller with PID regulation, maintaining sealing temperature within ±1°C for consistent quality;

8. Flexible Packaging Materials: Compatible with various PE composite films, including pure aluminum, aluminum-plated, nylon, and similar structures;

Application:

The Packaging Machine is ideal for packaging a variety of liquids, including coffee creamers, sauces, honey, and detergents. It features a fully automatic process—heating, mixing, piston pump filling, bag forming, coding, sealing, and custom die-cutting—making it perfect for industries like food, cosmetics, and household products. The machine supports both thick and thin liquids, producing 20–30 pouches per minute with attractive, custom-shaped designs.

Videos:

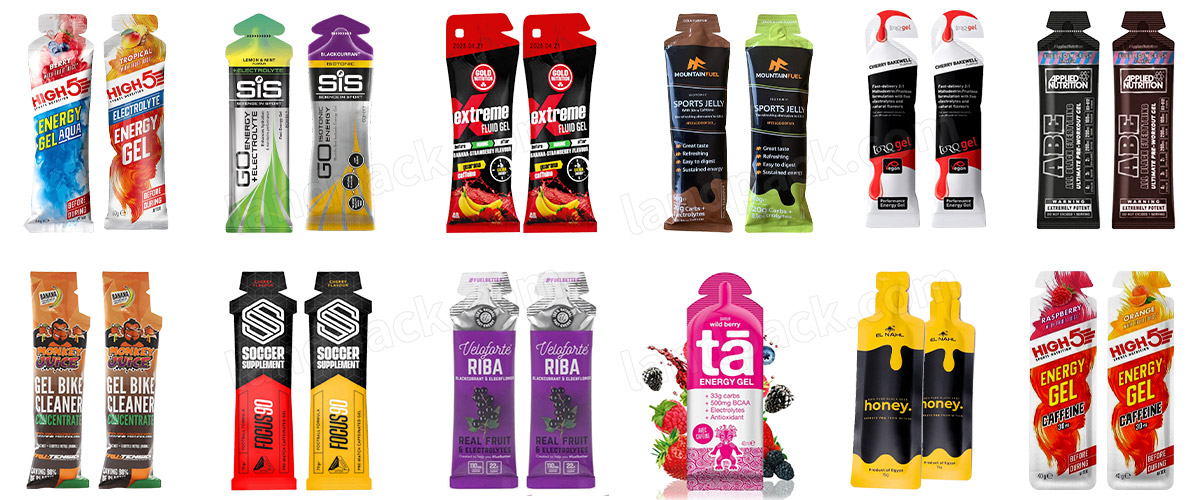

Samples:

Name	Landpack Single Lane Stick Pack Machine
Model	LDBK-140L
Dosing Method	A: Piston pump 1-30ml; B: Piston pump 2-42ml; C: Magnetic pump 3Liter/min (for pure liquid or oil product)
Hopper type	A: Single layer SS304 hopper; B: Double jacket SS304 hopper; C: Magnetic pump hose connection to raw liquid tank
Packing speed	20-45 bag/min (1200-2700bag/min)
Bag size range	L 40-150mm ; W 15-100mm
Bag Seal type	Stick /pillow
Cut type	A: Teeth cut; B: Straight cut C: Round cut D: Irregular cut (Stick Width within 40mm)
Film thickness	0.05-0.1mm
Film material	Laminated film such as paper/PE, aluminum/PE, PA/PE, PET/PE, filter paper
Drive method	Electricity + Pneumatic
Control style	PLC control system+English/Chinese screen (Or customized panel)
Power	1.8KW
Power supply	AC220V 1phase 50Hz/ AC380V 3phases 50Hz
Air consumption	0.4cbm/min 0.8Mpa
Dimension	750x710x1780 mm
HS CODE for export	84223030

WorkFlow:

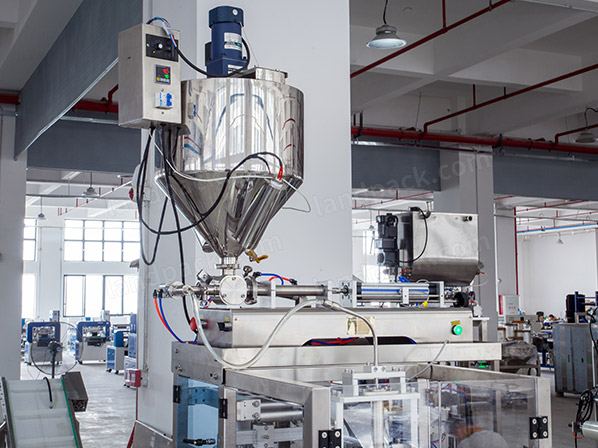

1. Heating&Stirring Hopper

2. Piston pump to measure the weight

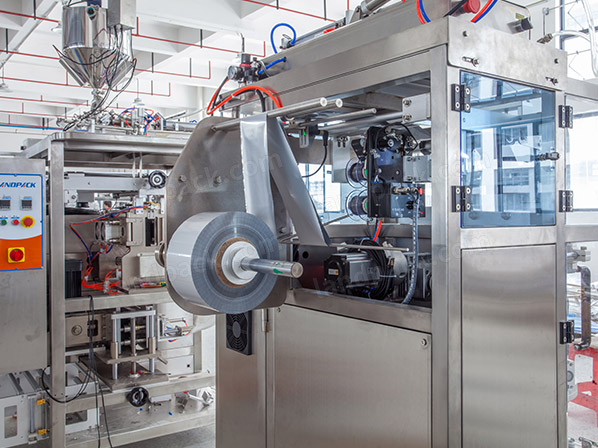

3. Filming

4. Coding

5. Bag forming

6. Filling r

7. Sealing

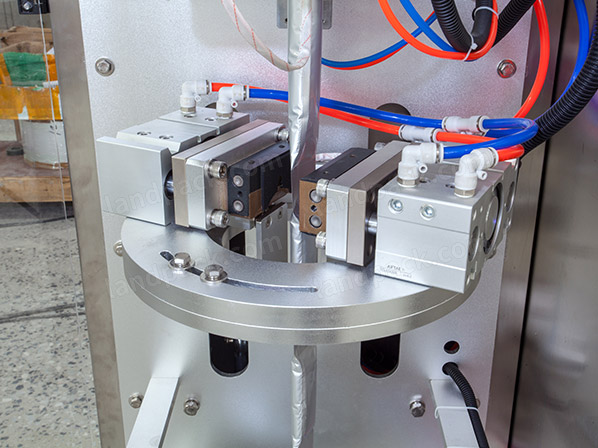

8. Customize mold Punching
