High Speed 6 Lane Powder 3/ 4 Sealing Sachet Packaging Machine

Application:

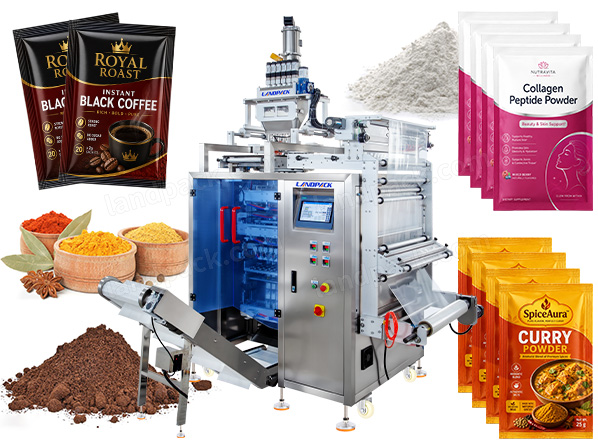

The 3/4 Side Sealing Sachet Packaging Machine is suitable for milk powder, cocoa powder, baking powder, flour, starch, glucose powder, Instant coffee, milk tea powder, matcha powder, instant tea, solid drink powder, protein powder, collagen powder, vitamin powder, mineral powder, nutritional blends.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

Application:

The 3/4 Side Sealing Sachet Packaging Machine is mainly designed for 4 side seal sachets and can also be customized for compatible 3-side seal sachets according to the required packaging format.Compatible heat-sealable laminated roll film has a reference thickness of 0.07–0.10 mm, with a maximum roll-film width of 720 mm. Straight, zig-zag or continuous cutting can be configured according to the finished sachet requirement.

Machine Details:

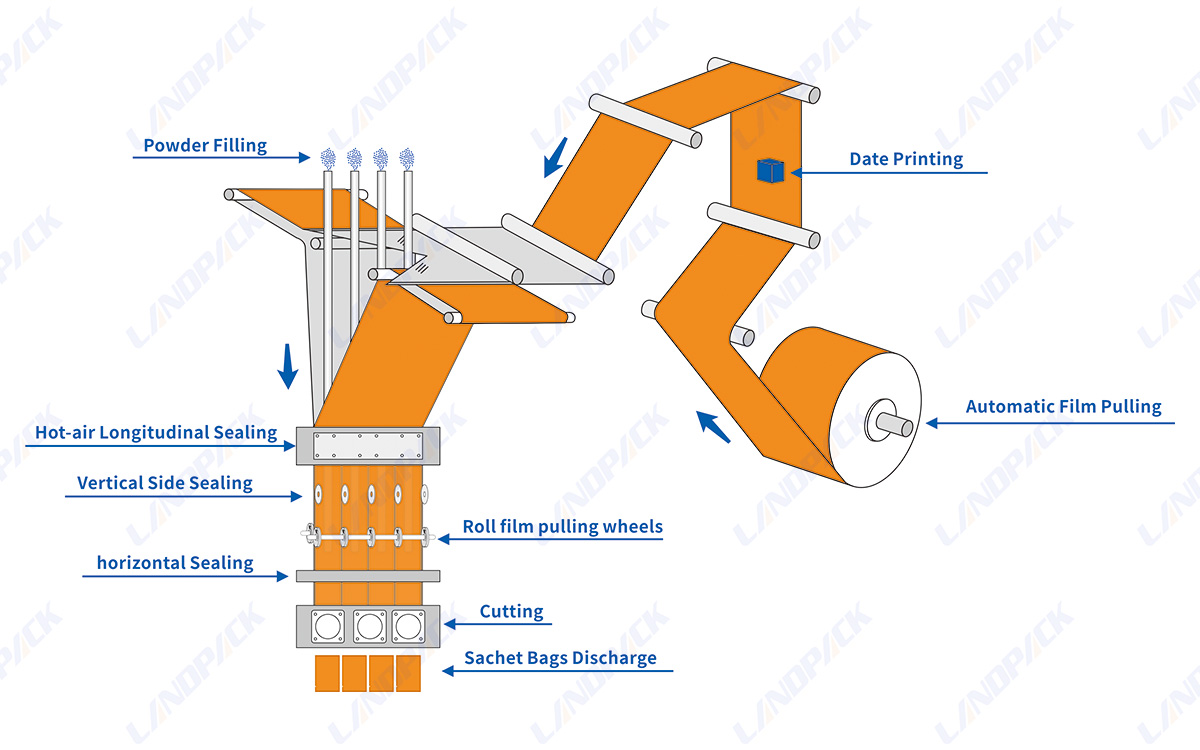

Working Process

1. Powder Feeding → Auger Hopper Storage → Six-Lane Servo Auger Dosing → Roll Film Unwinding → Ribbon Date Coding → Servo Film Pulling → Film Guiding & Slitting → Sachet Forming → Powder Filling → Longitudinal Sealing → Four-Side Heat Sealing → V-Shaped Easy-Tear Punching → Sachet Cutting → Finished Product Output

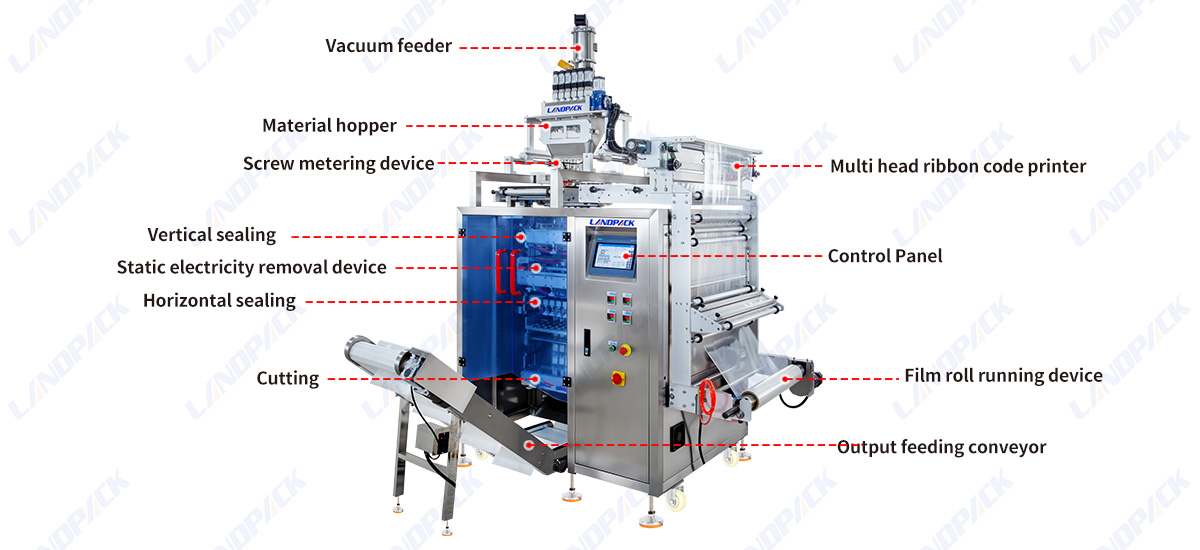

Key Component

Specification

Model	LDFS-480D	LDFS-720D	LDFS-960D	LDFS-1200D
Track Number	4-6 Track	4-8 Track	4-10 Track	4-12 Track
Filling Method	Auger filling by servo motor
Capacity	20-40 bags/min/lane
Sachet Size	L: 45-120mm; W: 50-60mm	L: 45-120mm; W: 50-90mm	L: 45-120mm; W: 50-120mm	L: 45-120mm; W: 50-150mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm	Max.1200mm; 0.07-0.1mm
Sealing Type	4side sealing
Cutting Type	1. Straight cutting, 2. Zig-zag cutting, 3. Continous cutting
Air&Power	0.8MPA, 0.8m³/min; 2.8kw	0.8MPA, 0.8m³/min, 4.1kw	0.8MPA, 0.8m³/min, 5.5kw	0.8MPA, 0.8m³/min, 6.5kw
DIM&WT	95014701750mm, 300kg	115316541750mm, 400kg	141516862130mm, 500kg	222022102600mm, 800kg

Features:

1.Full SS304 machine frame and product-contact parts meet food-grade and GMP requirements.

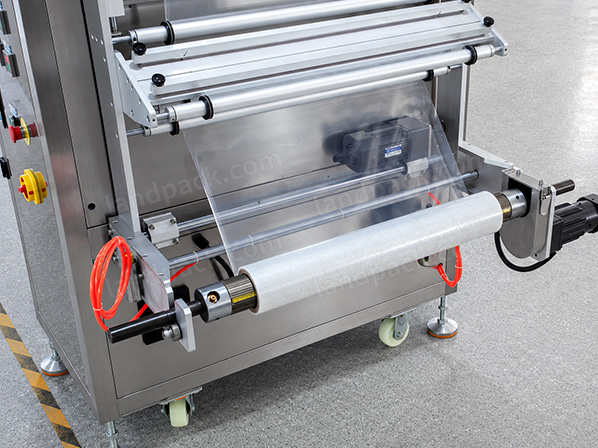

2.Servo-driven film pulling system ensures smooth and stable film feeding during continuous production.

3.Six independent servo-controlled auger fillers provide accurate and consistent powder dosing for each lane.

4.Automatic roll-film forming, heat sealing and cutting enable continuous six-lane sachet production.

5.Ribbon coding provides clear printing, while precise sealing and cutting ensure a neat finished sachet appearance.

6.Customized V-shaped easy-tear punching device makes individual sachets convenient and clean to open.

7.Four-side sealing system provides strong, uniform seals with smooth edges for small-dose powder sachets.

8.Siemens PLC and touchscreen provide a user-friendly interface for easy parameter setting and operation.
