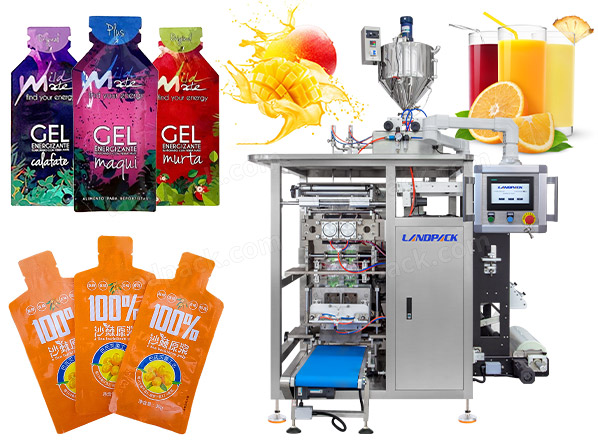

Multi lane Irregular Shape Pouch Liquid Sachet Packing Machine

Application:

It is suitable for packaging various liquid products in shaped bags, sachet, sticks, such as various emulsions, essences, juice yeast drink, beverages, jams, yogurts, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

This video show that our two-lane shaped pouch packing machine, designed for high efficiency and precise sealing.
Perfect for shaped bags and custom packaging, it delivers faster output with consistent quality, ideal for food, pharma, and daily products.

This video specifically shows the single-lane shaped pouch packing machine, offering flexibility and cost-effectiveness.
It ensures accurate filling and secure sealing, making it suitable for small to medium production and businesses seeking creative pouch types

Bag & Pouch Type:

Apply For Filling into shaped bag, sachet,stick,customized pouch.We also provide the single lane sachet packing machine for your reference,Please click

Machine Details:

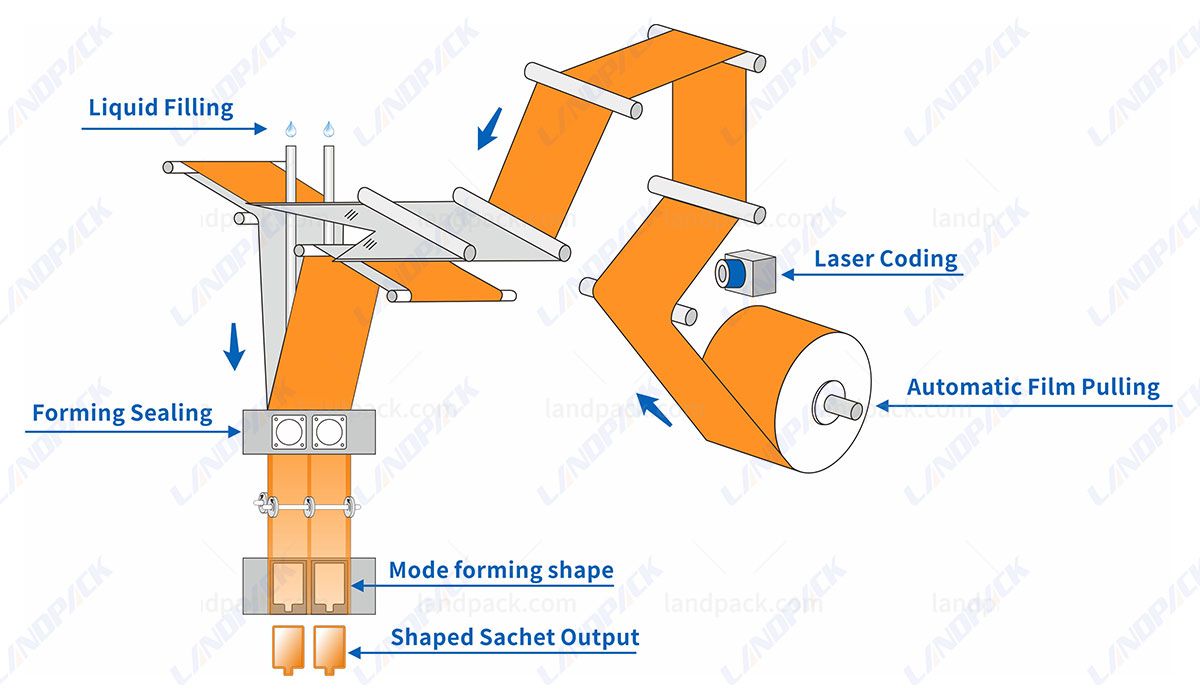

Working Process

1. Automatic Film Forming

2. Bag Forming

3. Filling System

4. Sealing

5. Cutting

6. Finished Bag Collection

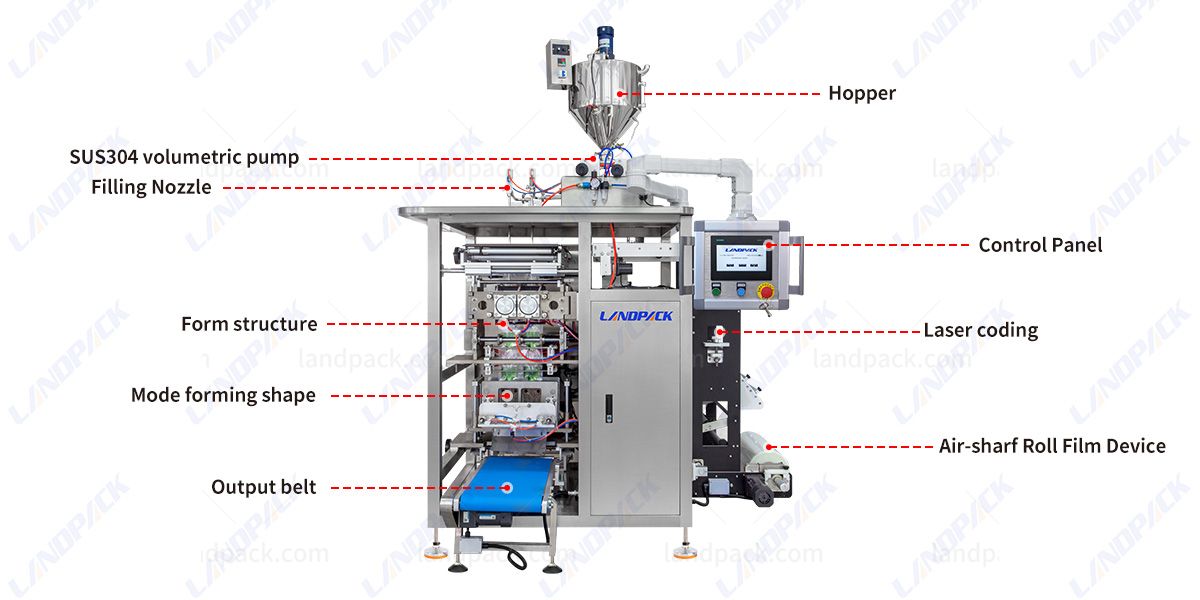

Key Component

Specification

Model	LDYX-480L	LDYX-620L
Track number	2-4 Tracks	2-4 Tracks
Filling Method	1. Piston pump, 2. Peristaltic pump
Production capacity	20-30 cycle/min
Bag Size	L: 50-170mm; W: 70-230mm	L: 50-170mm; W: 100-300mm
Film W&D	Max. 500mm; 0.07-0. 10mm	Max. 620 mm; 0.07–0.10 mm
Sealing Type	Irregularly shaped bag
Air & Power	220V/380V 50HZ, 5.0kw	220V/380V 50HZ, 5.5kw
Air Consumption	0.8mpa; 0.8m³/min	0.8mpa; 0.8m³/min
Weight	800 KG	900 KG
Machine size	260013502350 mm	260014502350 mm

Features:

Machine Image	Features

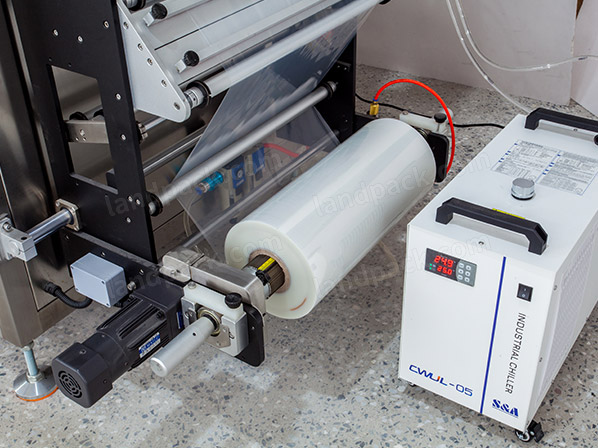

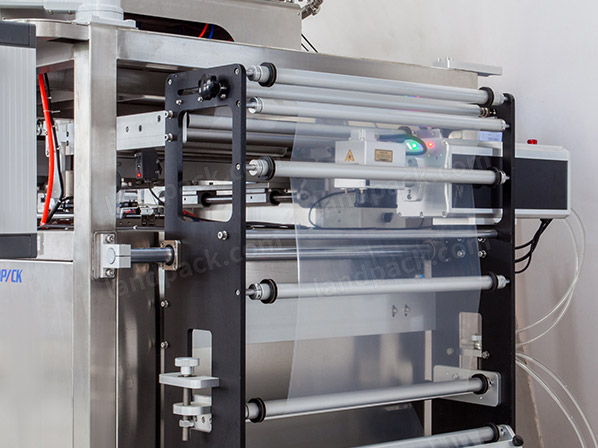

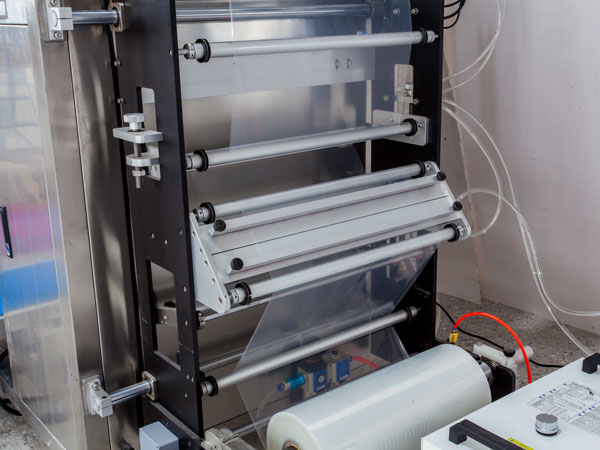

	Film Feeding & Positioning The machine uses a precise film feeding system to ensure accurate positioning of packaging material. With automatic alignment and tension control, it guarantees smooth operation, reduces film waste, and keeps the bag shape consistent for different customized pouch designs.

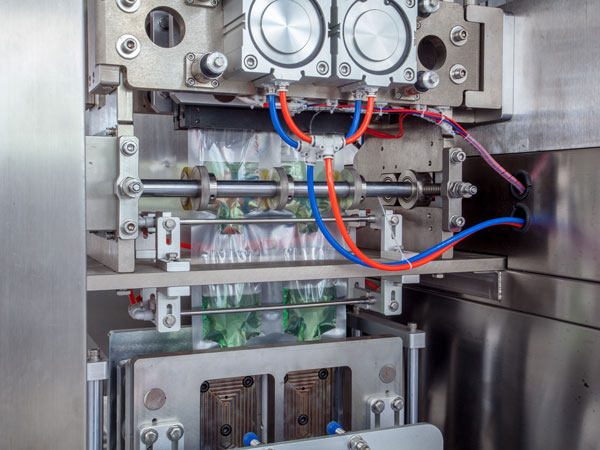

	Bag Forming & Edge Sealing Equipped with a multi-lane forming system, the machine shapes the film into two-column pouches with edge sealing. The heat-sealing mechanism ensures strong, leak-proof seams, making it suitable for powders, granules, or liquids with stable bag integrity.

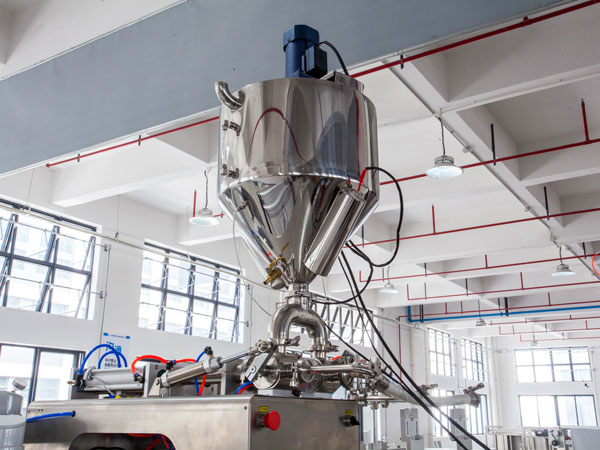

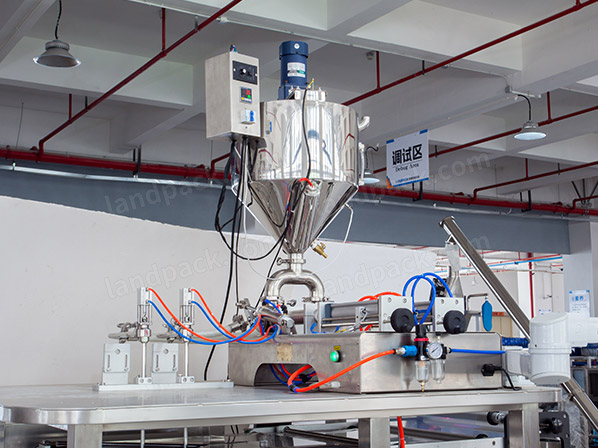

	Filling System The filling system can be customized for powders, granules, or liquids. With multi-head dosing, it provides high precision and uniform distribution across all lanes, ensuring accurate weight in each pouch while maintaining efficiency at multi-column production speeds.

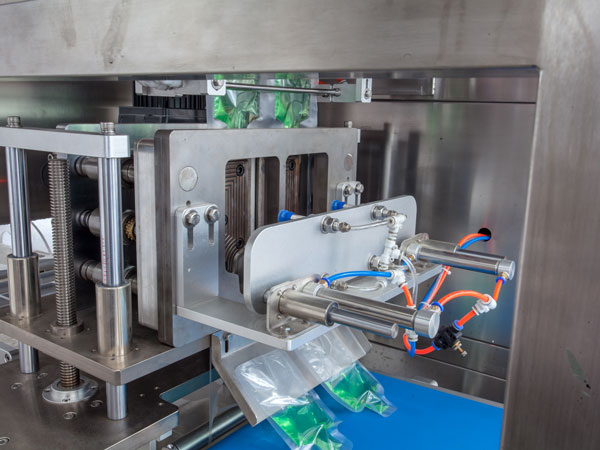

	Cutting & Shaping Specialized cutting blades create shaped pouches with smooth edges and consistent dimensions. The machine supports various pouch styles, including round corners or unique profiles, meeting market demands for attractive packaging with distinctive shelf appeal.

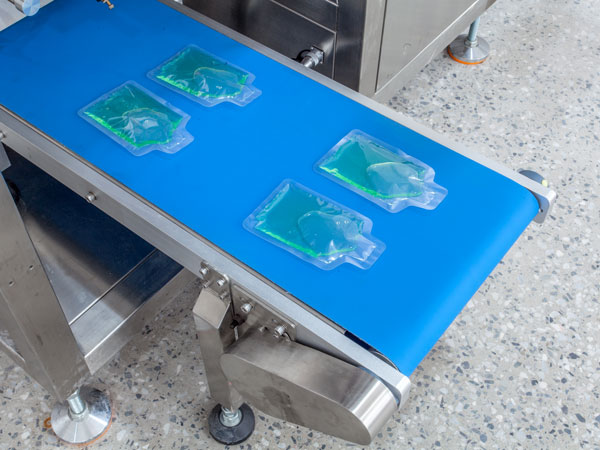

	Output & Collection Finished pouches are automatically discharged onto the conveyor for collection. With counting and sorting functions, the system ensures neat arrangement, reduces manual handling, and prepares products for downstream processes like cartoning or boxing.
