Multi Lane Liquid Irregular Shape Sachet Bag Packing Machine

Application:

This multi lane liquid irregular shape sachet bag packing machine, it is suitable for many kinds of liquid products, such as honey, vitamin drink, chili sauce, ketchup, peanut sauce, honey, oil, jelly, shampoo, facial cream, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Measure the liquid by peristaltic pump to improve the accuracy.

2.Rolls film for multi lane cutting and sealing, pulling the packing film with servo motor at the same time to let each lane sealing well.

3.Suits for different bag shape by changing different bag sealing models to meet the demand of the market.

4.Sealing the bag by the bag shape models, pick up the bags by suckers to output the finished packages more smoothly.

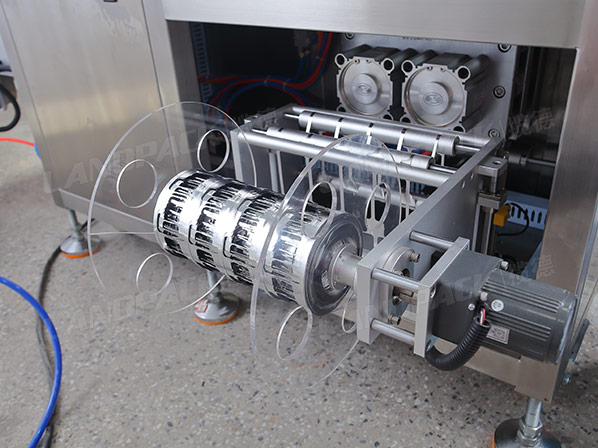

5.To keep environment cleaning and meet the GMP production standard, the machine will collect the waste film automatically.

6.To reduce the error rate of counting bag by workers, you could match the suckers structure to help you arrange and count bags automatically.

7.Accept to customize the different bag shapes , allow one lane one bag shape and change different bag models, which let the machine meet demand of product designing and flexible requirement.

8.To match bags packing into the cartons, the designing of the machine support to output finished bags in front.

9.The whole set of machine is made of 304 stainless steel.

Application:

This multi lane liquid irregular shape sachet bag packing machine, it is suitable for many kinds of liquid products, such as honey, vitamin drink, chili sauce, ketchup, peanut sauce, honey, oil, jelly, shampoo, facial cream, etc.

Videos Introduction:

Specification:

Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4~6 Track	4~10 Track	4~12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L:45--120mm; W:35-60mm	L:45--120mm; W:35-90mm	L:45--120mm; W:35-120mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa 0.8m³/min; 2.8kw	0.8 mpa 0.8m³/min; 4.1kw	0.8 mpa 0.8m³/min; 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Workflow:

Pulling film by servo motor→Measure by peristaltic pump→Pulling packing film→Sealing by bag shape models→Filling→Cutting by bag shape models→Picking up bags by suckers→Collecting waste film automatically.
