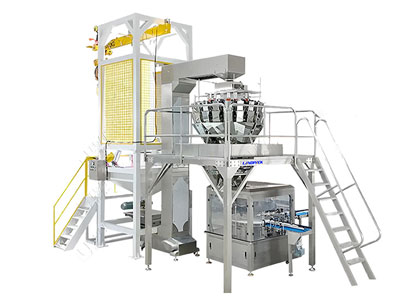

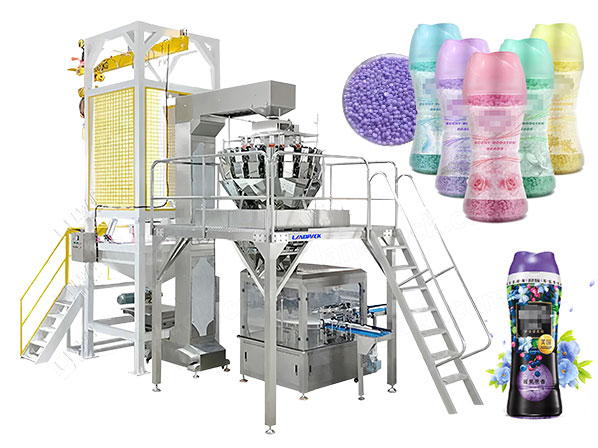

Fully Automatic Air Freshener Beads Filling Machine for Bottle Jar

Application:

The air freshener beads filling machine is a rotary granular filling system is mainly used for household care products such as laundry fragrance beads, scent boosters, deodorizing beads, and wardrobe freshening pellets, and can also be applied to other granular products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The machine is designed to work with rigid containers, which are primarily containers that support bottles and jars made of glass or plastic. It can be used with square or round containers, allowing exact granule filling, and secure capping and sealing.

Wide Application Range

This fragrance beads filling machine is specially designed for accurate bottle filling of free-flowing granules, featuring multihead weighing and stable rotary filling to ensure consistent dosing, high efficiency, and clean operation. It is widely used across multiple industries:

Home care industry

• Fragrance beads, laundry scent boosters, deodorizing granules, and air-freshener beads..

Chemical industry

• Detergent pellets, cleaning agent granules, and industrial absorbent beads.

Food industry

• Popcorn, groundnuts, peanuts, snacks, chocolate, nuts, seeds, potato chips.

Machine Details:

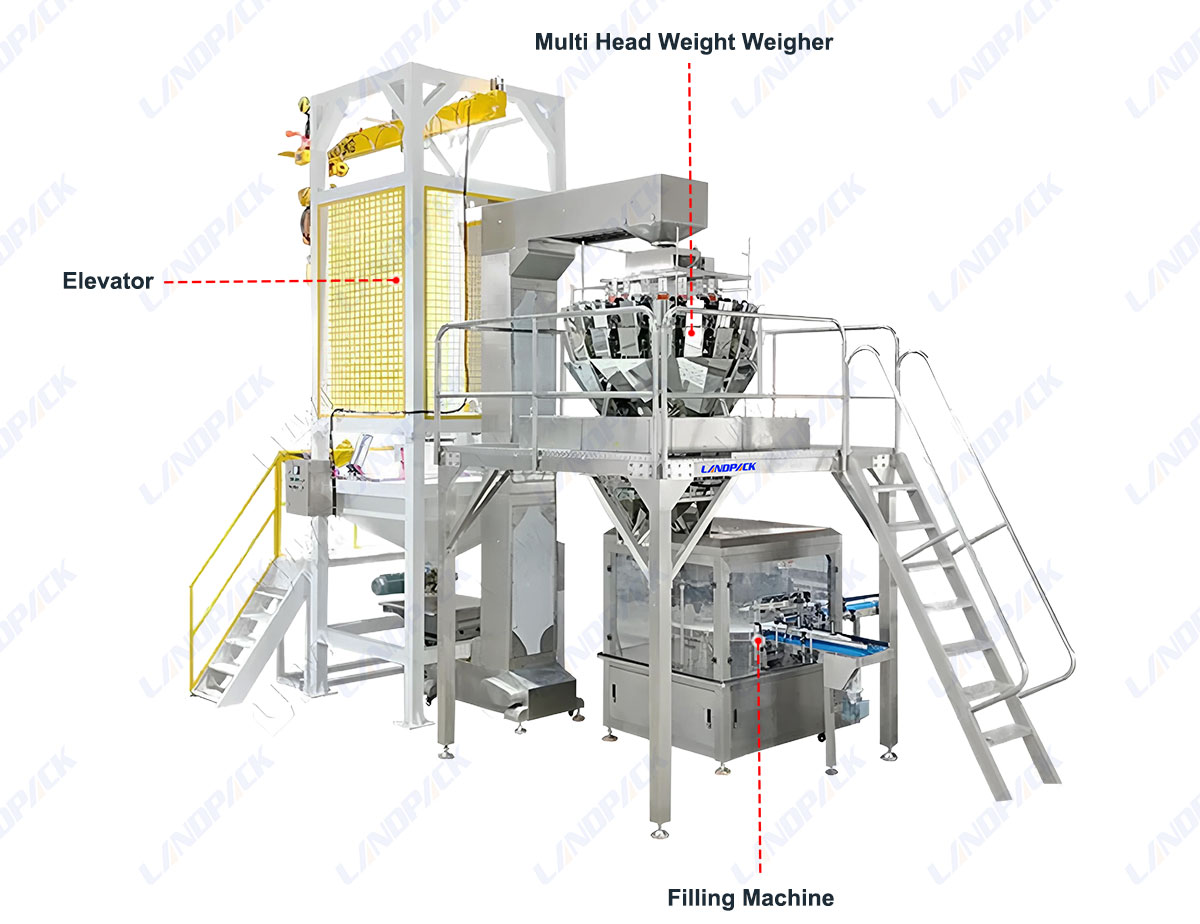

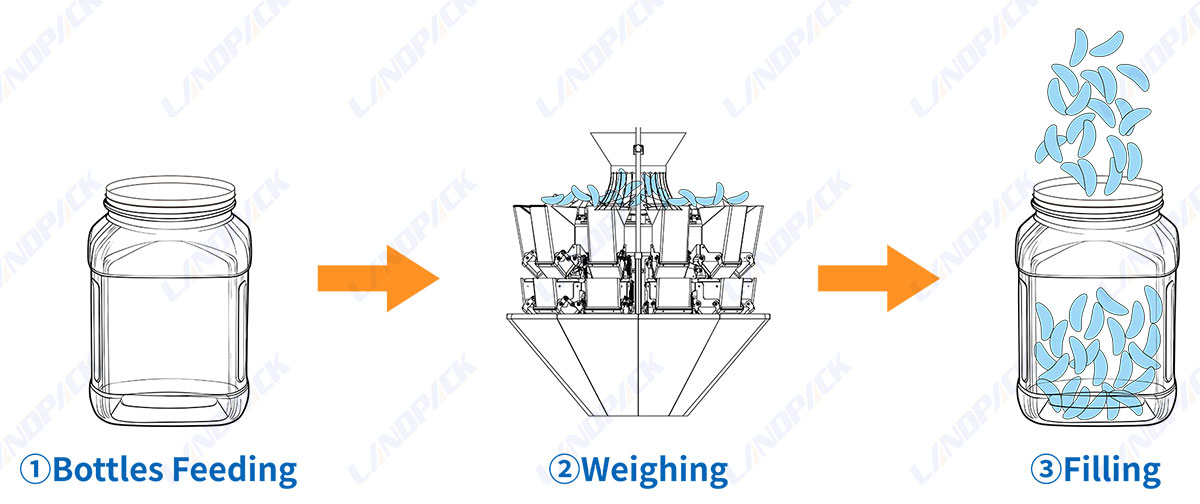

Working Process

1. Bottle Unscrambling → 2. Product Feeding & Measuring → 3. Granule Filling

Key Component

Specification

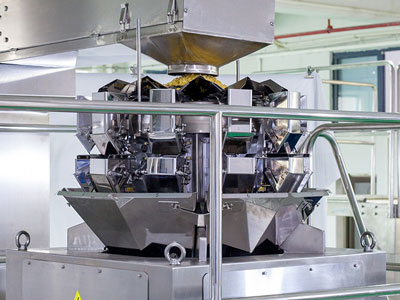

Multi-heads weigher

Model LD-14 LD-16 LD-12 LD-10 LD-8

Number of weighing heads 14 16 12 10 8

Per weighing range 10-2000g 10-1000G

Weighing Accuracy ±0.3-1.5g ±0.3-1.5g ±0.3-1.5g ±0.3-1.5g ±0.3-1.5g

Weighing Speed 120bag/min 180bag/min 100bag/min 70bag/min 60bag/min

Hopper capacity 1300ml 1300ml 1700ml 1300ml 1300ml

Hopper type Double row unrecorded bucket Double row unrecorded bucket single row bucket Double row unrecorded bucket Double row unrecorded bucket

Product default mode 99 modes

Control element 10.4-inch LCD aiming screen

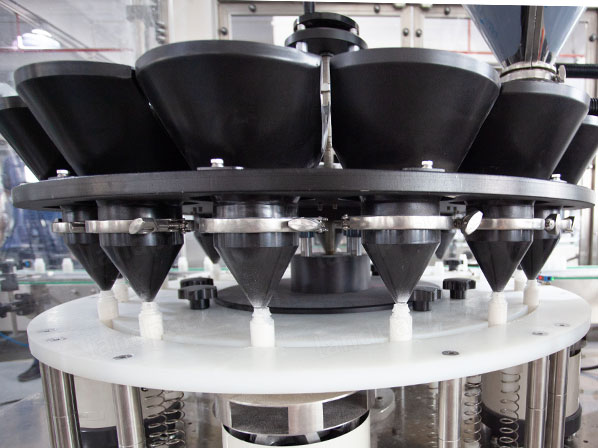

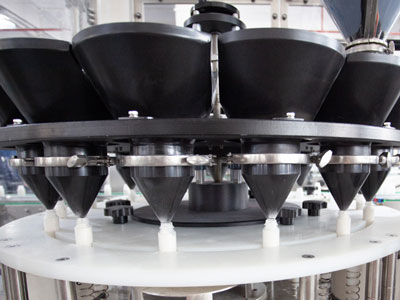

Accuracy weighing and filling

Model LF-ZP-10

Output 20-30 bottles/min

Bottle diameter Φ30mm-Φ135mm (customizable)

Bottle height 40mm-200mm (customizable)

Power 750W,220V,50Hz

Weight 200kg

Features:

Machine Image	Benefits
	High-Efficiency Automated Filling System Created for continuous and high-speed production of granular fragrance beads, this machine increases throughput using only minimal manual work, which helps companies increase output while ensuring consistent quality.

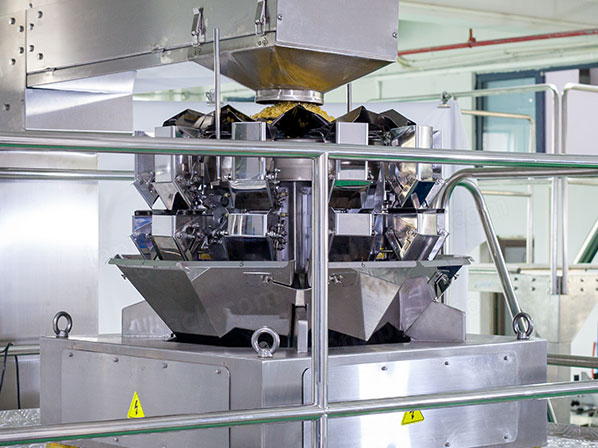

	Precision Multi-Head Weigher for Accurate Dosing A combination weighter integrated offers highly precise portioning, which ensures the same fill levels for every container, and decreasing waste even in the case of irregular granules.
	Robust Stainless Steel Construction All components used in product contact are made of foods-grade SS316 stainless steel, which provides high-end sanitation, corrosion resistance and a long-lasting service life.

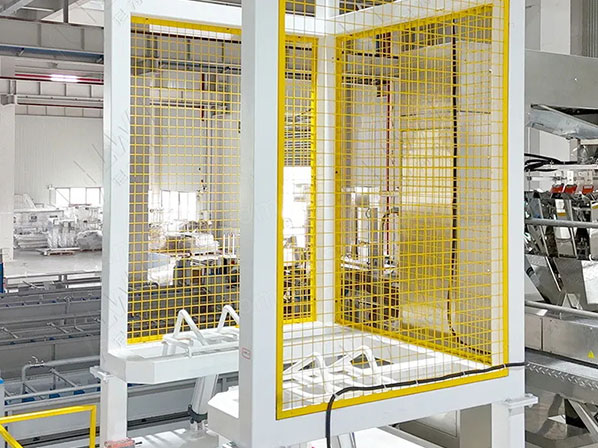

	Z-Type Feeder for Smooth Material Transfer A reliable Z-type conveyor allows smooth transfer of granules from the feed hoppers to filling and weighing machines that allow continuous production .
	Modular & Expandable Configuration The line can be integrated with downstream and upstream systems such for big bags handling caps, tray conveying, cap feeding and capping modules.

Learn More:

1.If you need more Detergent Packing Machine for your product , read our-- Detergent Packing Machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

Accuracy weighing and filling
Model	LF-ZP-10
Output	20-30 bottles/min
Bottle diameter	Φ30mm-Φ135mm (customizable)
Bottle height	40mm-200mm (customizable)
Power	750W,220V,50Hz
Weight	200kg
