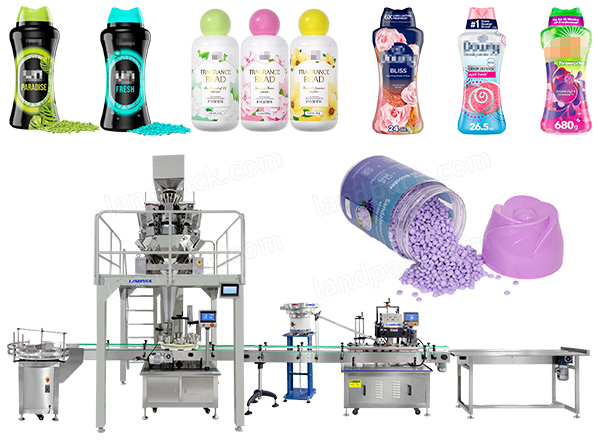

Automatic Fragrance Beads Filling Machine Plastic Bottles Jar Laundry Scent Beads Filling Machine

Application:

It is widely used for packaging laundry and home care products, such as laundry scent booster beads, wardrobe fragrance beads, and air-freshening granules.also for food product such as nut, dry fruit,popcorn.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This filling line is designed for rigid containers, mainly bottles and jars made of plastic or glass. It supports various container shapes and sizes, including round, square, and customized bottles

Wide Application Range

This fragrance beads filling machine integrates a bottle unscrambler, multi-head weigher, rotary granule filling machine, capper, and collection table, making it suitable for a wide range of free-flowing granular products that require accurate weighing and stable bottle filling:

Household & daily chemical sector

• Fragrance beads, laundry scent boosters, deodorant granules, moisture absorbers, and air-freshener pellets.

Food industry

• Sugar, candy, seasoning granules, chocolate crisps, and dry food

Health & personal care products

• bath salts, foot soak granules, herbal pellets, and wellness beads.

Machine Details:

Working Process

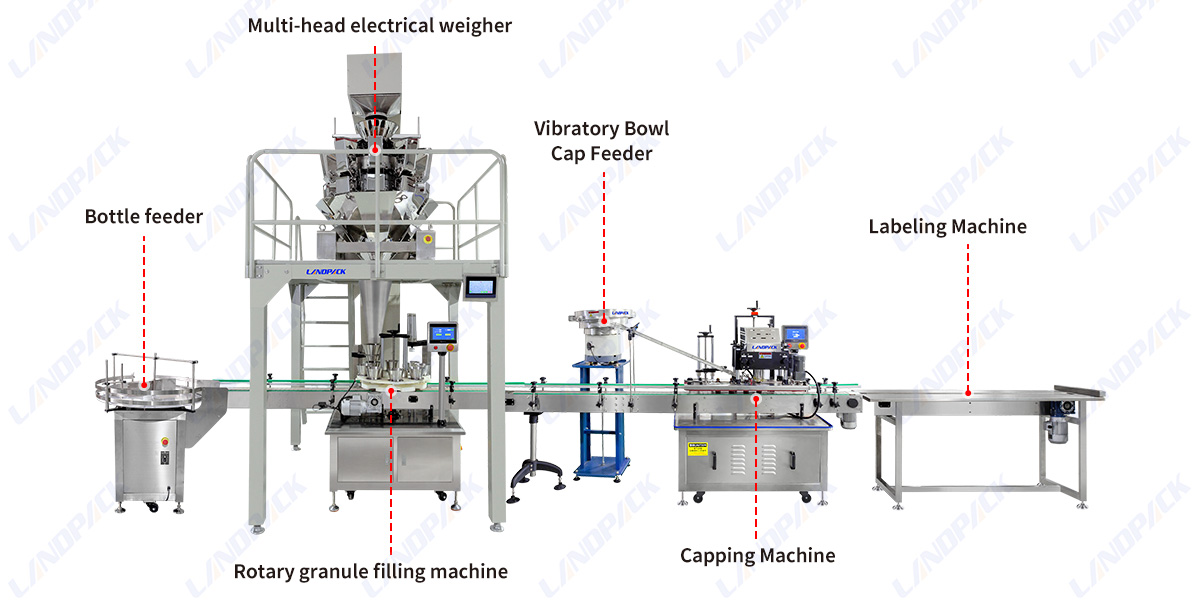

1. Bottle Unscrambling → 2. Product Feeding & Measuring → 3. Granule Filling → 4. Capping → 5. Labeling → 6. Finished Product Collection

Key Component

Specification

Automatic Bottle Unscrambler

Machine Model LD-LP800N

Power Supply 220V/110V, 50-60Hz, 200W

Turntable Diameter 800mm

Suitable Bottle Diameter 20-100mm

Suitable Bottle Height 30-320mm

Working Speed 40-60bottles/min(depending on bottle size)

Package Size 1230*1010*1260mm

Gross Weight 141kg

Multi-heads weigher

Model LD-14 LD-16 LD-12 LD-10 LD-8

Number of weighing heads 14 16 12 10 8

Per weighing range 10-2000g 10-1000G

Weighing Accuracy ±0.3-1.5g ±0.3-1.5g ±0.3-1.5g ±0.3-1.5g ±0.3-1.5g

Weighing Speed 120bag/min 180bag/min 100bag/min 70bag/min 60bag/min

Hopper capacity 1300ml 1300ml 1700ml 1300ml 1300ml

Hopper type Double row unrecorded bucket Double row unrecorded bucket single row bucket Double row unrecorded bucket Double row unrecorded bucket

Product default mode 99 modes

Control element 10.4-inch LCD aiming screen

Accuracy weighing and filling

Model LF-ZP-10

Output 20-30 bottles/min

Bottle diameter Φ30mm-Φ135mm (customizable)

Bottle height 40mm-200mm (customizable)

Power 750W,220V,50Hz

Weight 200kg

Automatic capping machine

Model LFX-JX-01(Four wheel capping) LFX-GS-150(Eight wheel capping) LFX-GS-250(Six wheel capping)

Capacity 20-50Bottles/min 40-100Bottles/min 30-80Bottles/min

Bottle cap diameter Φ22mm-Φ80mm（Could be customized） Φ18mm-Φ80mm（Could be customized） Φ18mm-Φ80mm（Could be customized）

Bottle diameter Φ35mm-Φ140mm（Could be customized） Φ35mm-Φ140mm（Could be customized） Φ35mm-Φ140mm（Could be customized）

Bottle sealing height 38mm-300mm（Could be customized） 38mm-300mm（Could be customized） 38mm-300mm（Could be customized）

Power 1.5KW 2KW 1.5KW

Voltage 220V、50HZ 220V、50HZ 220V、50HZ

Air pressure 0.6-0.8Mpa 0.6-0.8Mpa 0.5-0.7Mpa

weight 250kg 350kg 300kg

Dimensions H3000*W800*L1600mm H3120*W1544*L2122 H3100*W1244*L2122

Features:

Machine Image	Benefits
	High-Accuracy Multi-Head Weighing The multi-head weighter allows accurate and consistent doses for granular substances like fragrance beads, which helps in decreasing weight shift and product distribution.
	Rotary Granular Filling Structure The rotary filling device is specifically designed for granules with free flow with a stable filling rate and a gentle handling of the materials, and durable performance over the long term.
	Automatic Bottle Handling The automatic bottle unscrambler organizes and feeds the bottles into the line, decreasing any manual effort and enhancing the overall effectiveness.
	Reliable Capping and Finished Product Output The capping machine that is automated ensures the caps are uniform and tight, while the collection table permits an orderly discharge of the finished product
	Compact, Hygienic, and Easy to Operate With a small layout and an easy-to-use control system The line is simple to clean, operate, and maintain, which makes it ideal for the continuous production of granular materials.

Learn More:

1.If you need more Detergent Packing Machine for your product , read our-- Detergent Packing Machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Automatic Bottle Unscrambler
Machine Model	LD-LP800N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm
Suitable Bottle Diameter	20-100mm
Suitable Bottle Height	30-320mm
Working Speed	40-60bottles/min(depending on bottle size)
Package Size	123010101260mm
Gross Weight	141kg

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

Accuracy weighing and filling
Model	LF-ZP-10
Output	20-30 bottles/min
Bottle diameter	Φ30mm-Φ135mm (customizable)
Bottle height	40mm-200mm (customizable)
Power	750W,220V,50Hz
Weight	200kg

Automatic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122
