Automatic Vffs Vertical Packing Machine For Fragrance Beads

Application:

It is widely used for packaging laundry and home care products, such as laundry scent booster beads, wardrobe fragrance beads, and air-freshening granules.also for food product such as nut, dry fruit,popcorn.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This fragrance beads packing machine is designed to flexibly support multiple pouch formats to meet different product positioning and market needs. It is compatible with pillow pouches, back sealing pouches, gusset pouches, and sachets.

Wide Application Range

The vertical packing machine for fragrance beads is widely used across multiple industries thanks to its stable weighing system, precise film forming, and efficient automatic packaging structure.

Household care industry

• Fragrance beads, laundry scent boosters, washing machine freshener granules, deodorizing beads.

Daily chemical industry

• Aroma beads, desiccant granules, air-freshener particles, scented polymer beads.

Food industry

• Sugar, Candy beads, Dry fruit, Flavored Salt Granules.

Machine Details:

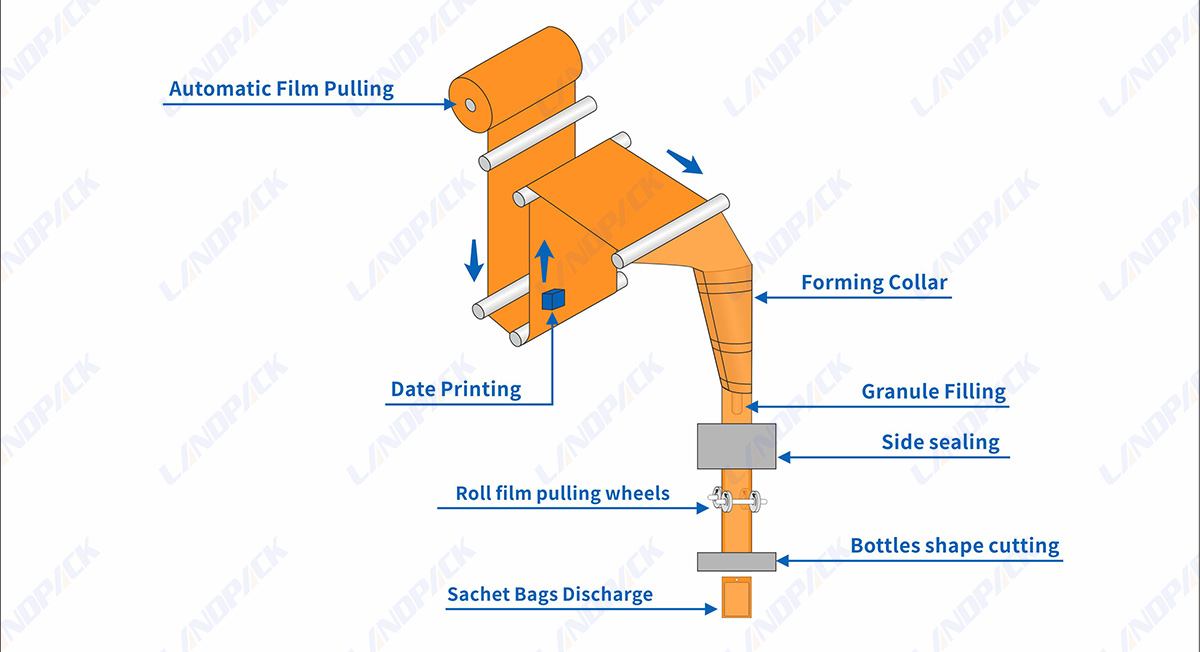

Working Process

1. Material Feeding → 2. Bag Forming → 3. Granule Filling → 4. Sealing → 5. Cutting & Discharge → 6. Finished Product Collection

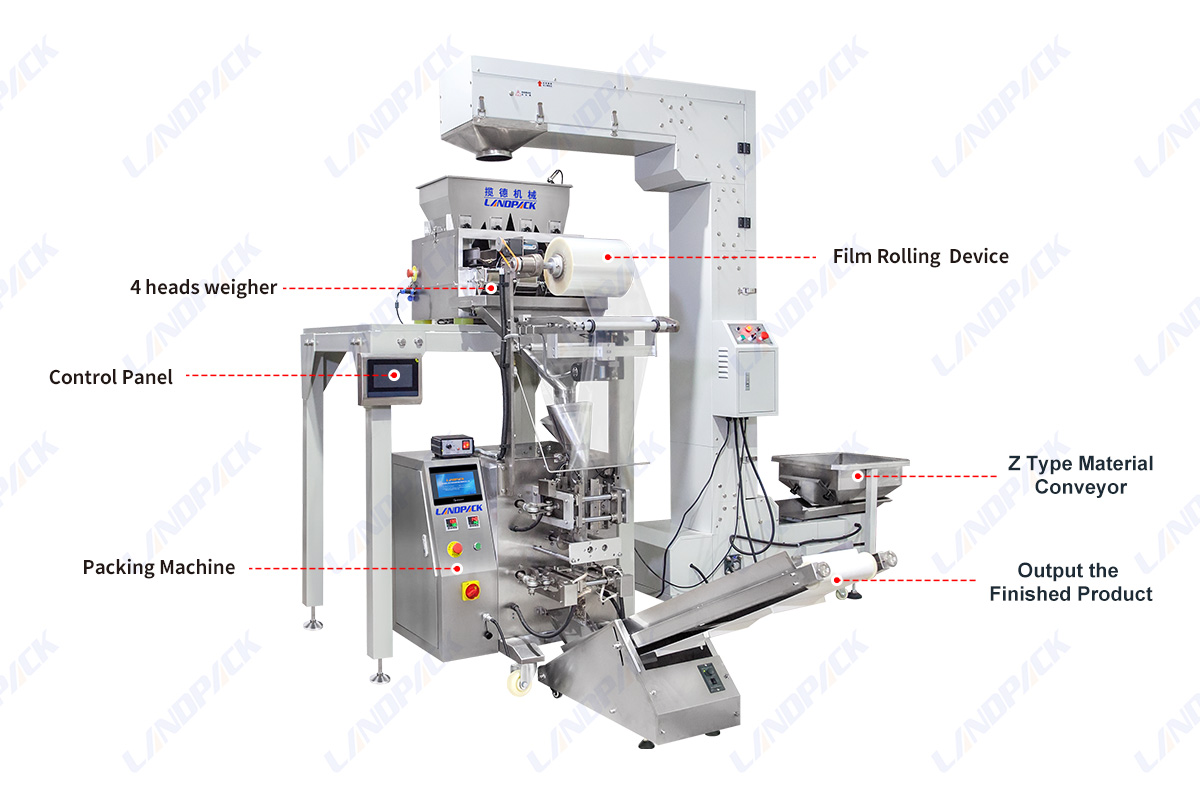

Key Component

Specification

Model LD-320AS

Capacity 20-100 bag/min

Bag size L:50—170mm， W:50—150mm

Film width 120mm—320mm

Film thickness 0.05—0.12mm

Control system PLC+Servo Motor+Color Touch Screen; PLC+Servo+Touch screen

Power supply 1N+PE/50HZ/AC220V 4KW

Airconsumption 0.6—0.8Mpa, 0.3—0.5㎥/h

Dimension L1350*W900*H1400mm

Equipment Material Main body 3mm thickness 304 stainless steel frame

Weight 350kg

Description of Main Packaging Process Pulling film-coding-bag making-measurement-filling (inflating)-sealing (punching)-cutting-packaging finished product output.

Features:

Machine Image	Benefits

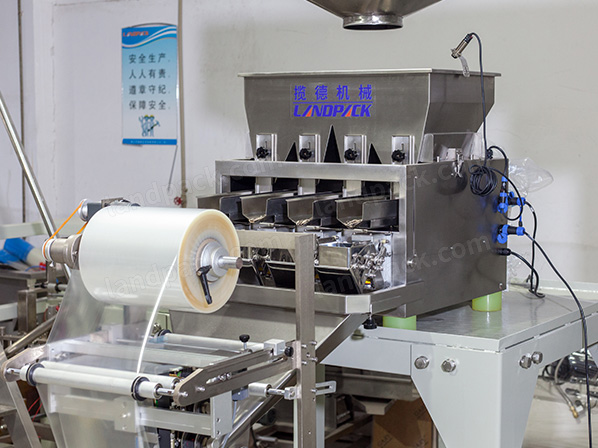

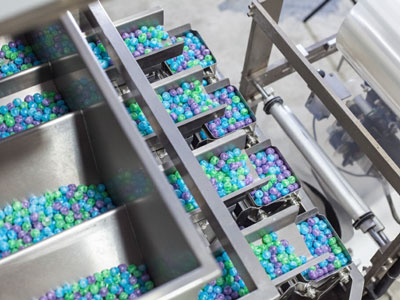

	4 Heads Linear Weigher The 4-head linear weigher is reliable and precise weighing for fragrance beads as well as other granules with free-flowing properties. It guarantees the same dosage for every pack

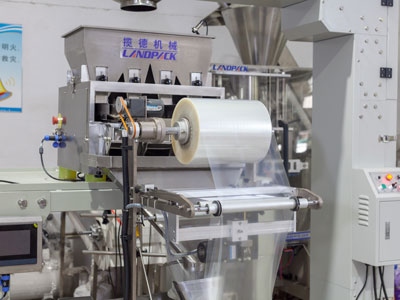

	Film Rolling Device The system for rolling film allows packaging film to be fed quickly and consistently and ensures accurate alignment of the film and stable bag formation.

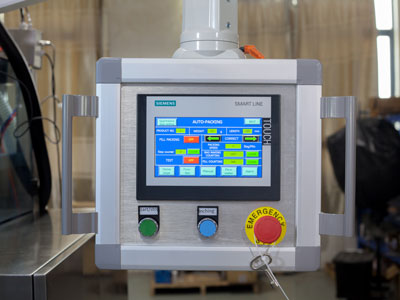

	Control Panel A user-friendly control panel that incorporates a PLC system allows simple setting of parameters, monitoring in real-time and fast adjustments.

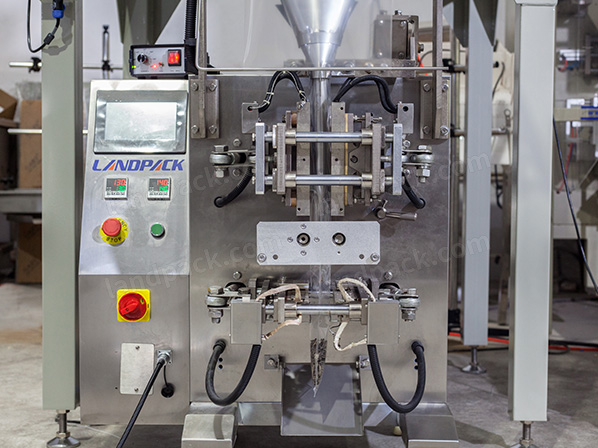

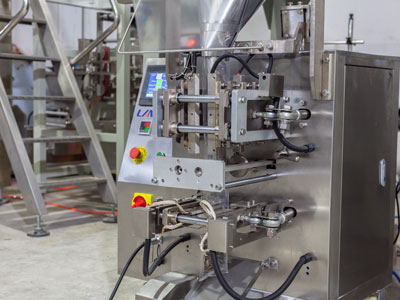

	Packing Machine Vertical packing machines integrate making the bag, filling it, sealing and cutting into a compact design. It provides steady performance, a tidy appearance of bags

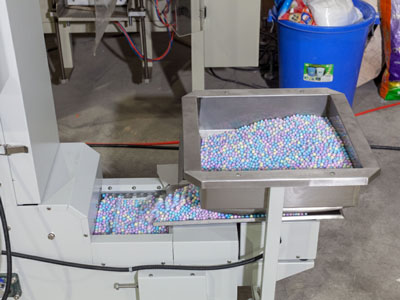

	Z Type Material Conveyor With a small layout and an easy-to-use control system The line is simple to clean, operate, and maintain, which makes it ideal for the continuous production of granular materials.
	Finished Product Output The final product output system discharges bags that are completed in a neat way ready to be collected or for additional packaging.

Learn More:

1.If you need more Detergent Packing Machine for your product , read our-- Detergent Packing Machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Model	LD-320AS
Capacity	20-100 bag/min
Bag size	L:50—170mm， W:50—150mm
Film width	120mm—320mm
Film thickness	0.05—0.12mm
Control system	PLC+Servo Motor+Color Touch Screen; PLC+Servo+Touch screen
Power supply	1N+PE/50HZ/AC220V 4KW
Airconsumption	0.6—0.8Mpa, 0.3—0.5㎥/h
Dimension	L1350W900H1400mm
Equipment Material	Main body 3mm thickness 304 stainless steel frame
Weight	350kg
Description of Main Packaging Process	Pulling film-coding-bag making-measurement-filling (inflating)-sealing (punching)-cutting-packaging finished product output.
