2kg 3kg 5kg Detergent Powder Packing Machine – High-Speed Automatic Filler

1. Full-automatic inside/outside thermal transfer coding prints batch numbers, dates, and logos on both sides of the bag for full traceability and consistent branding.

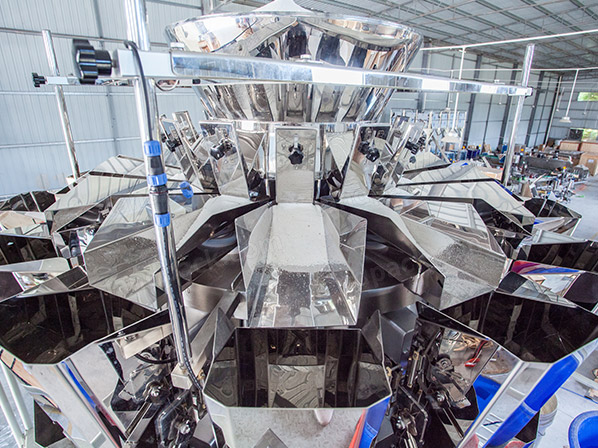

2. 14-head electronic weighing system with 7.5 L volumetric hoppers ensures high-speed, highly accurate dosing to minimize giveaway and maintain uniform fill weights.

3. Supports bag widths up to 450 mm, ideal for heavy-weight and large-volume packaging of washing powder, fertilizers, animal feed, and more.

4. PLC-controlled servo-driven film transport guarantees precise film alignment and fast operation, with auto-tracking and dust-extraction for hygienic sealing.

5. Intuitive HMI touchscreen enables one-click start, real-time process monitoring, and fast changeovers between different bag sizes and materials.

6. Integrated dust collection system at filling and sealing zones maintains a clean environment and prevents cross-contamination.

7. Modular stainless-steel construction with quick-release components allows for easy cleaning and maintenance, meeting strict food and pharmaceutical hygiene standards.

8. Inline conveyor and finished-product display facilitate continuous flow and convenient visual inspection before dispatch.

9. Optional multi-auger dosing capability for simultaneously filling different powders into one bag, expanding application versatility.

10. Heavy-duty frame with adjustable footings ensures stability and minimal vibration even when running up to 90 bags per minute.

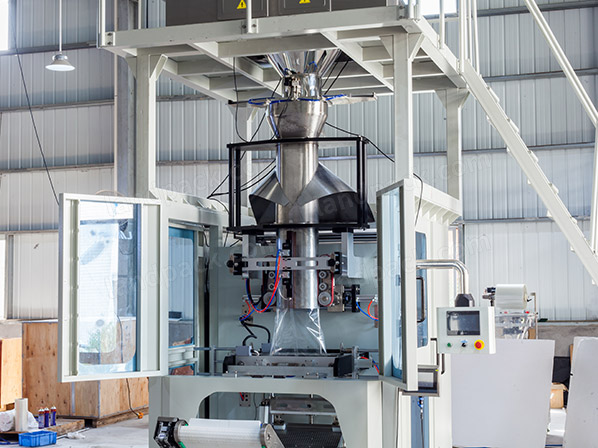

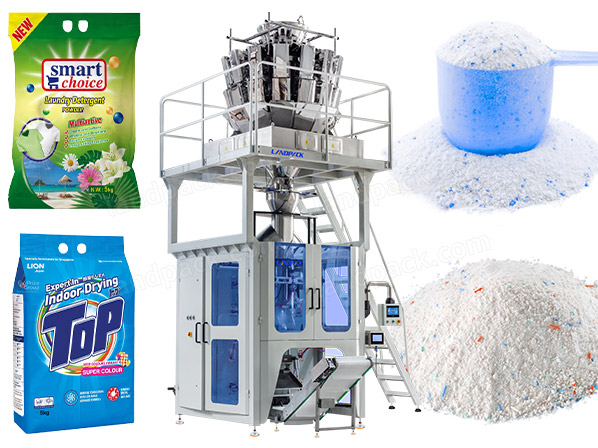

The Big Bag Washing Powder Packaging Line is engineered for heavy-weight packing of non-liquid powders across chemical, food and agricultural sectors. Featuring full-automatic inside/outside thermal transfer coding, a 14-head 7.5 L electronic weigher for high-speed precision, and pouch widths up to 450 mm, it’s perfect for bulk detergent, fertilizer, animal feed, spice blends, coffee creamer and similar products.

1. Automatic feeding system lifts bulk powder via elevator to the distributor hopper, ensuring constant, even supply.

2. Thermal transfer printer applies production details (batch, date, logo) onto the inner and outer layers of the film before bag formation.

3. Multi-head electronic weigher precisely meters powder into the forming tube according to programmed recipes.

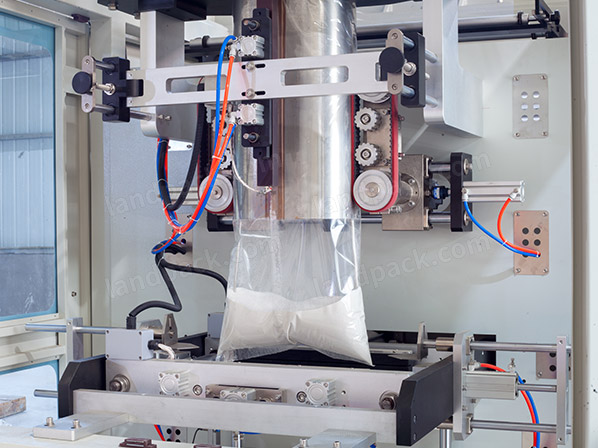

4. Vertical form-fill-seal (VFFS) unit shapes and seals pillow bags from roll-fed film using servo drives for consistent bag dimensions.

5. Dust extraction module captures loose particles to maintain hygiene, with optional nitrogen flushing to preserve product freshness.

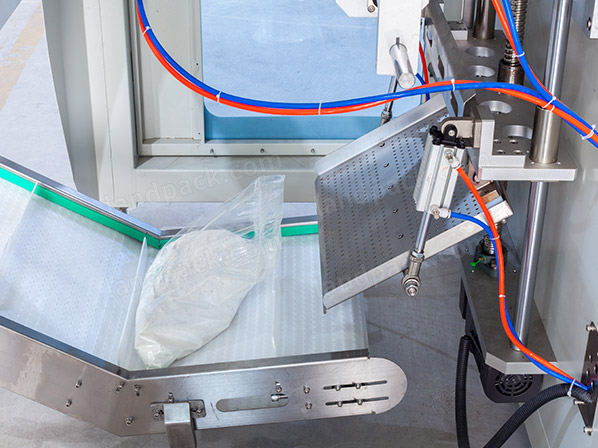

6. Finished bags discharge onto the conveyor, passing any inline inspection stations (e.g., metal detection) for quality control.

7. Final grouping and display organizes filled bags on a table or feeds them to an automatic palletizer for onward handling.
