High Accuracy Pharma Packaging Line Tablet Drug Medicine Bottle Filling Machine

Application:

The Automatic Pharma Packaging Line is designed for tablets, hard capsules, soft capsules, pills, coated tablets, pharmaceutical supplements, Vitamin tablets, calcium tablets, probiotics, fish oil capsules, nutritional products, Herbal tablets, health care products, and dietary supplements.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

The Automatic Pharma Packaging Line is suitable for HDPE bottles, PET bottles, glass bottles, plastic medicine bottles and customized pharmaceutical containers.

Videos Introduction:

Working Process

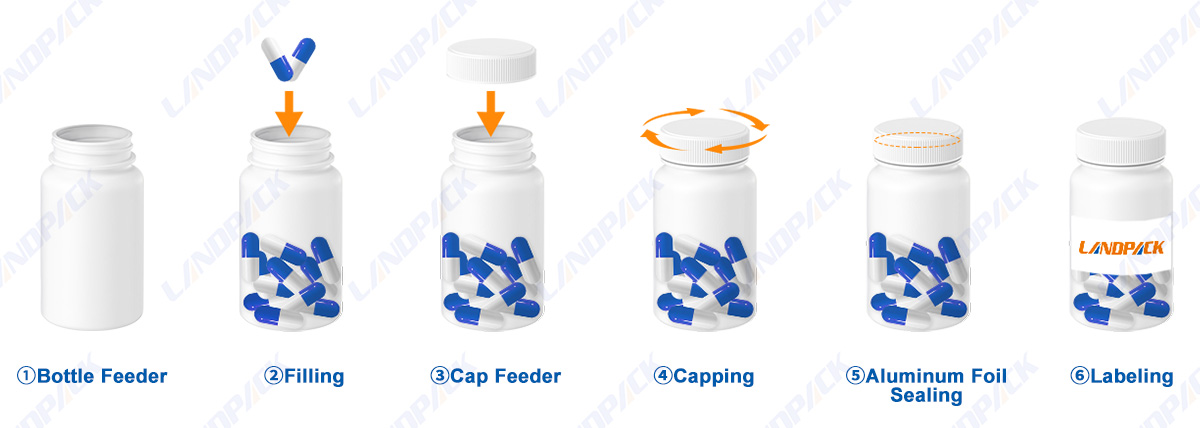

1. Bottle Feeding → Electronic Counting → Bottle Filling → Cap Feeding → Capping → Foil Sealing → Labeling → Finished Product Output

Key Component

Specification

Machine Type	Automatic Capsule and Tablet Counting Bottling Line
Counting Channels	8 Channels
Applicable Products	Hard Capsules, Softgel Capsules, Tablets, Pills and Similar Solid Products
Counting Range	1–9,999 Pieces per Bottle
Packaging Speed	10–40 Bottles/Min
Counting Accuracy	≥99.8%
Applicable Bottle Diameter	30–100 mm
Applicable Bottle Height	50–180 mm
Applicable Cap Type	Plastic Screw Caps
Sealing Method	Electromagnetic Induction Aluminum Foil Sealing
Label Type	Self-Adhesive Labels
Control System	PLC and Touchscreen Control
Power Supply	220V/380V, 50/60Hz
Air Pressure	0.5–0.7 MPa
Machine Material	SUS304 Stainless Steel

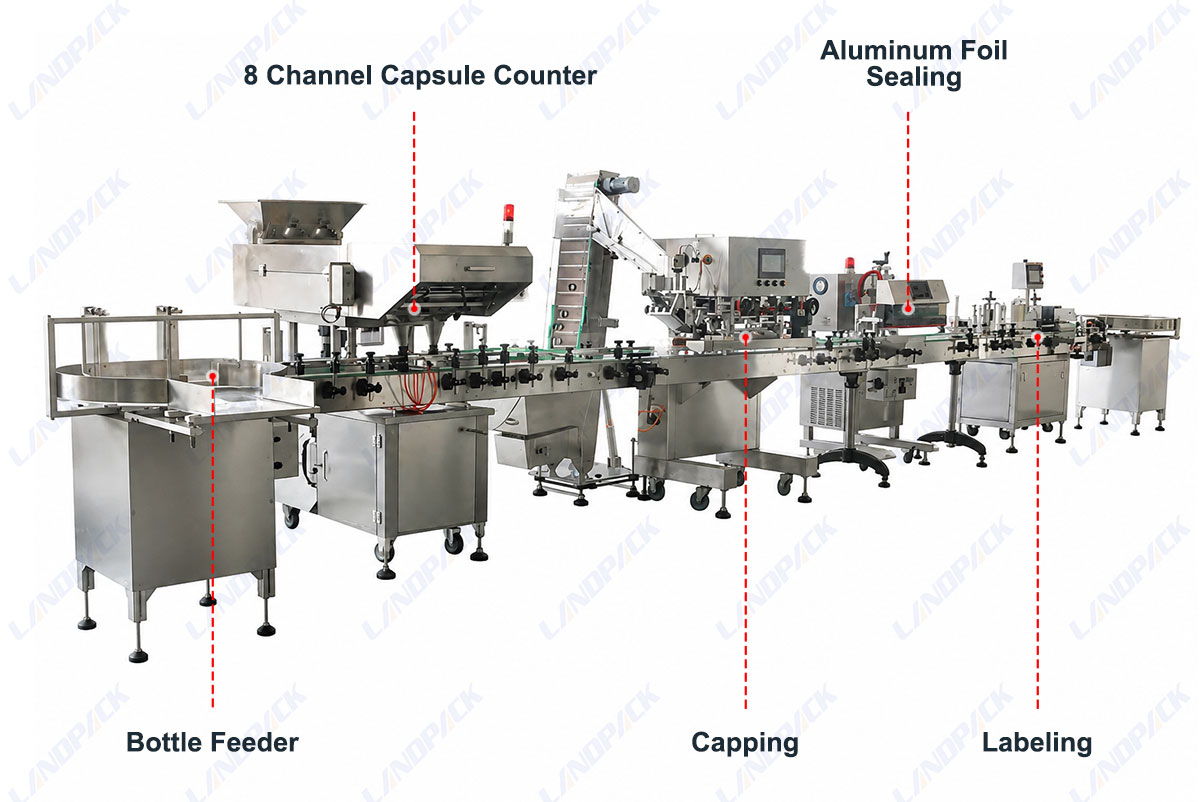

Line Configuration	Bottle Feeder, 8-Channel Counter, Cap Feeder, Capping Machine, Induction Sealer and Labeling Machine
Overall Dimensions	Customized According to Line Configuration
Total Power	Customized According to Machine Configuration

Features:

1. GMP-standard automatic bottling line integrates counting, filling, capping, sealing and labeling processes.

2. 8-channel counting system provides accurate tablet and capsule counting with low error rate.

3. Automatic bottle feeder arranges empty bottles and ensures continuous production flow.

4. Cap feeding and capping system complete automatic bottle closing with stable sealing performance.

5. Induction foil sealing machine provides hygienic and tamper-evident bottle sealing.

6. Automatic labeling system improves product appearance and labeling consistency.

7. Modular conveyor design connects each station for efficient and smooth bottle transfer.

8. PLC touchscreen control enables easy operation, parameter adjustment and production management.
