High Accuracy Capsule Tablet Pharmaceutical Bottle Packaging Line

Application:

The capsule filling production line is widely applied in the pharmaceutical, nutraceutical, and healthcare industries for bottling various solid dosage products. It is ideal for hard capsules, softgel capsules, tablets, and chewable supplements, ensuring precise counting and contamination-free filling. Common products include Vitamin C capsules, Fish Oil softgels, Calcium and Zinc tablets.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This capsule filling production line is compatible with a wide range of bottle types and materials, including round, square, oval, flat, and irregular-shaped bottles made of PET, HDPE, PP, and amber or clear glass. It supports various cap styles, such as screw caps, press-on caps, child-resistant caps, and aluminum foil induction seals, ensuring secure and tamper-evident closure.

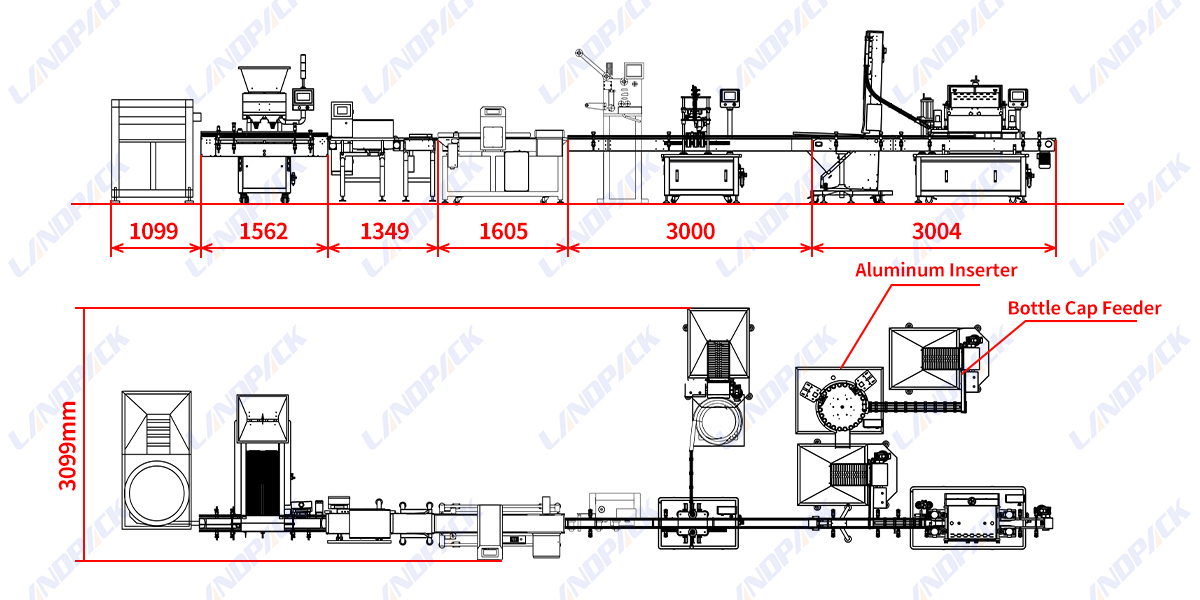

Machine Details:

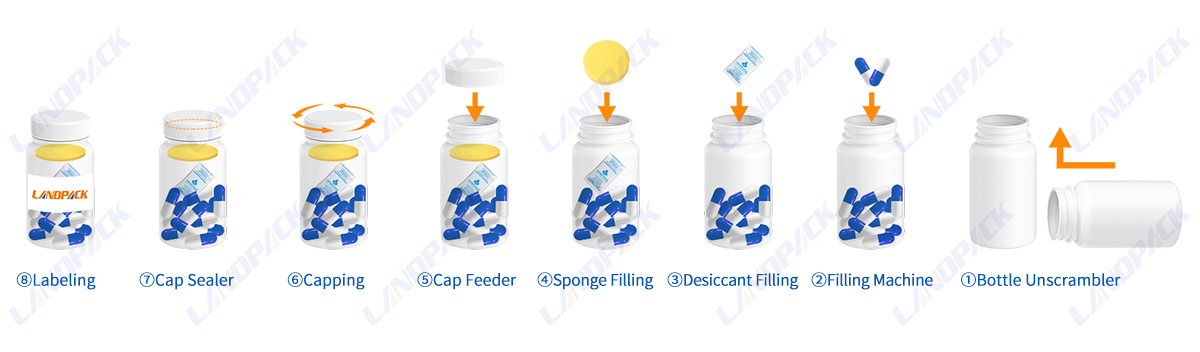

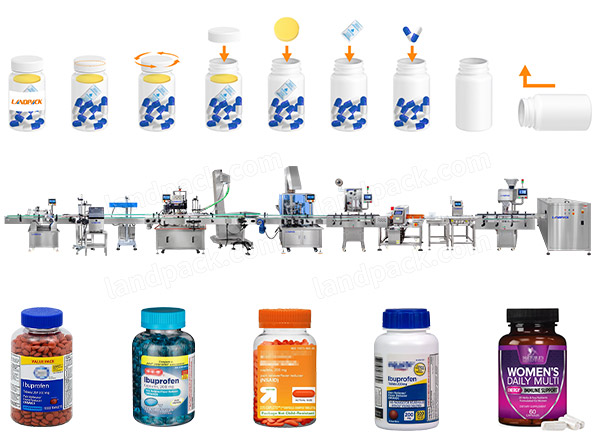

Working Process

1. Bottle Unscrambler

2. Filling Machine

3. Desiccant Filling

4. Sponge Filing

5. Cap Feeder

6. Capping

7. Cap Sealer

8. Labeling

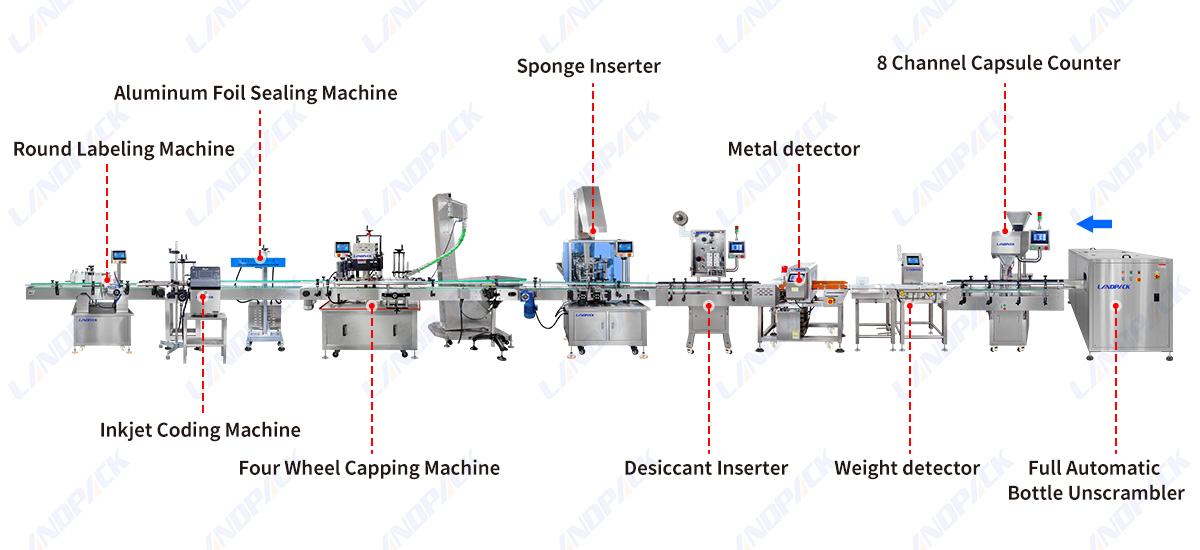

Key Component

Specification

Automatic Bottle Unscrambler
Bottle size range	15-300 ml
Power	0.50 KW
Air pressure/supply	0.5 MPa / 0.2 m³/h
Dimensions (L×W×H)	1006×1506×1200 mm
Weight	260 kg
Bottle diameter range	30-85 mm
Output	up to 260 bottles/min
Power consumption	3.4 KW
Compressed air	3.5 cfm (≈ 100 L/min)
8-Channel Capsule Counting Machine
Output / Bottles per min	up to 50 bottles/min
Counting Accuracy / Precision	> 99.80 %
Power / Voltage	0.6 kW, 380 / 220 V, 50 Hz Richpacking
Net Weight	360 kg
Capacity	10–30 bottles/min
Counting range	1–999 grains
Tablet / Capsule size	Tablet: 3–22 mm, Capsule: 00–5
Air pressure & consumption	0.4–0.6 MPa, ~120 L/min
Overall size	180013001600 mm
Desiccant Bag Dispenser
Insertion Speed	60-150 bottles/min (depending on model & sachet size)
Sachet Type	Single strip or continuous roll, paper/film sachets
Sachet Size Range	Length 20-60 mm; Width 15-30 mm (customizable)
Bottle Size Range	Diameter 30-120 mm; Height up to 250 mm
Cutting & Feeding	Automatic sachet cutting, positioning, and inserting
Insertion Accuracy	≥ 99.8%
Control System	PLC with touch screen operation
Power Supply	AC 220 V, 50/60 Hz, 1.0 kW
Air Requirement	0.4-0.6 MPa, ~100 L/min
Machine Weight	300-400 kg
Metal Detector
Metal detection tunnel size	200 mm (W) × 150 mm (H)
Continuous weighing range	6-600 g
Weighing accuracy	±0.3 g
Max throughput	120 containers/min
Detection sensitivity (no product)	Fe ≥ 0.8 mm, Non-Fe ≥ 1.0 mm, SS ≥ 1.2 mm
Checkweigher range	20-5,000 g
Accuracy	±0.02 g
Max product width/height	up to 290 mm width, 5-280 mm height
Weight detector
Weighing Range	1 g - 6,000 g
Accuracy	±0.2 - ±0.5 g (depending on product & speed)
Max Throughput	100 - 400 pcs/min
Conveyor Speed	2 - 60 m/min, adjustable
Conveyor Width	50 - 600 mm (customizable)
Resolution	0.01 g / 0.1 g / 0.5 g (optional)
Reject Mechanism	Air blast, pusher, drop gate, or swing arm
Power Supply	AC 220 V, 50/60 Hz
Air Requirement	0.5 - 0.7 MPa (for reject device)
Machine Dimensions	Approx 1200 × 710 × 750 mm
Sponge dispenser
Insertion speed	e.g. 100-200 bottles/min
Insertion accuracy	e.g. ±1 mm or better
Bottle neck/mouth diameter range	customizable, e.g. 15–50 mm
Power & pneumatic	e.g. 220 V / 50 Hz, air 0.4–0.6 MPa

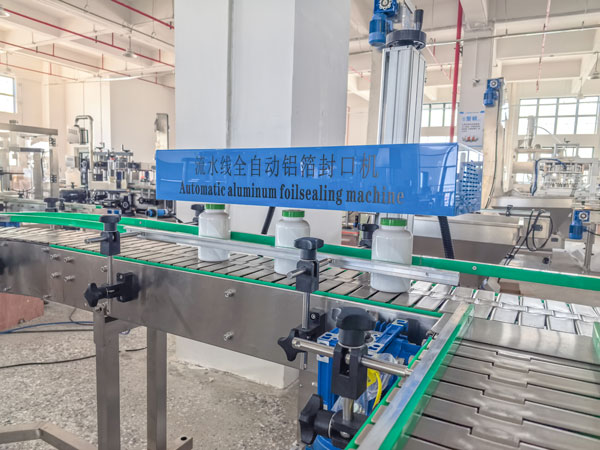

Aluminum foil sealing machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm (Could be customized)	Φ10-200mm (Could be customized)
Applicable bottle height	H:40-300mm (Could be customized)	H:40-300mm (Could be customized)
Speed	0-30 bottles/min	0-10 bottles/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm
Bottom Inkjet Coding Machine
Printing speed	1024 seconds(5*7)
Power	220V/50HZ,150VA
Printing direction	Positive sequence/reverse order/reverse/reverse
Printing distance	The nozzle and the object to be sprayed are kept within 3cm
Store information	The system can store 1000 print information
Ink consumption	70 million words per print
Machine weight	48kg
Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm

Features:

Machine Image	Benefits
	Full Process Automation for Higher Efficiency The entire bottling process — from sorting to sealing — is fully automated, greatly reducing manual labor and production cost. Each module is seamlessly linked, ensuring continuous, stable operation with minimal downtime and increased output efficiency.

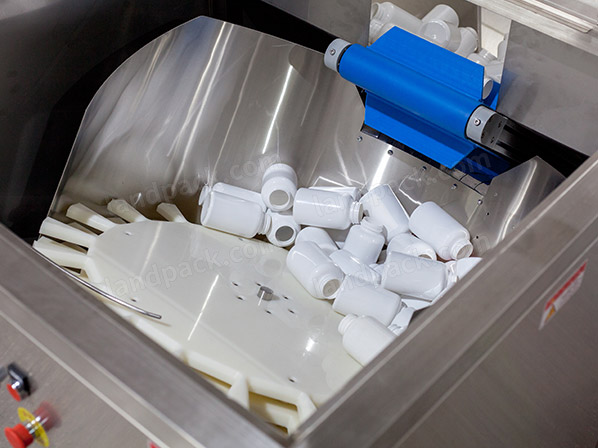

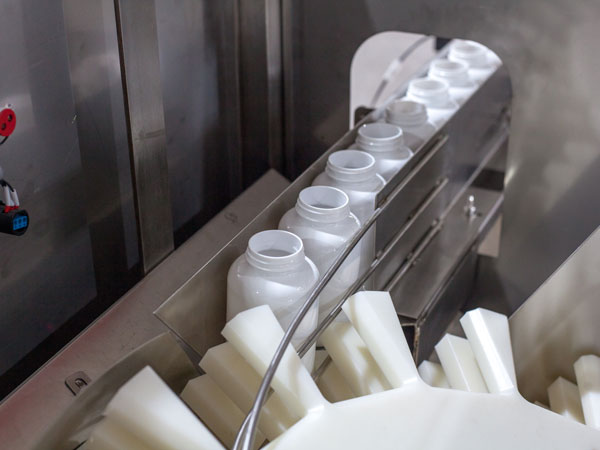

	Automatic Bottle Sorting and Directional Conveying The intelligent unscrambler automatically arranges and orients empty bottles before feeding them onto the line. It replaces manual bottle placement, achieving smooth, orderly conveying and consistent flow at high production speed.

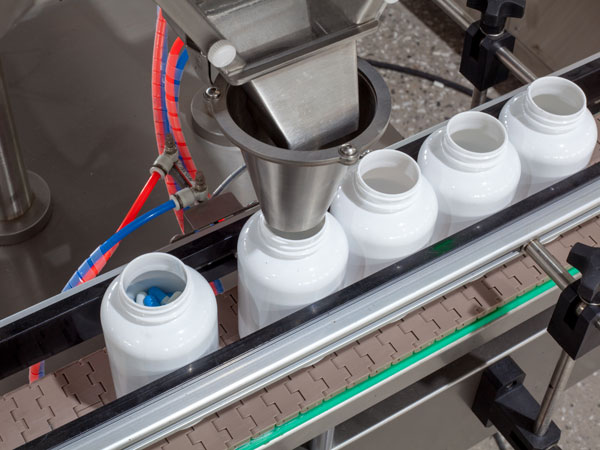

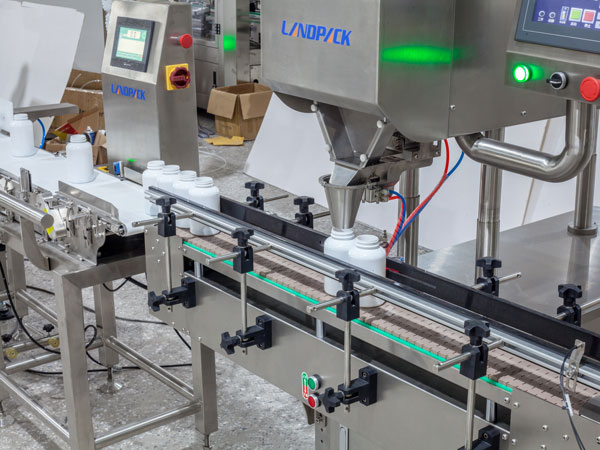

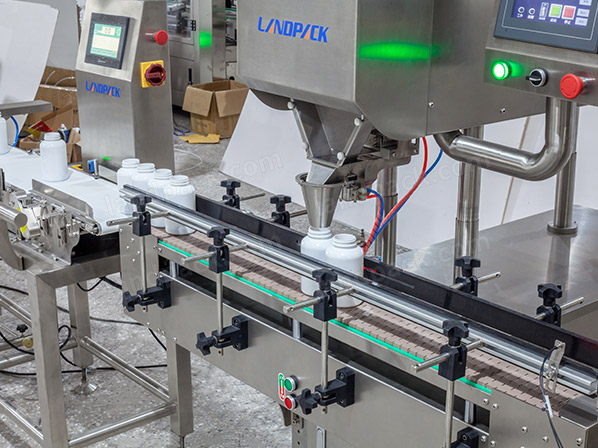

	Precise Counting and Fast Filling System The 8-channel electronic counting machine allows capsule quantities to be set directly through the touchscreen interface. It guarantees accurate, synchronized counting and rapid filling of each bottle, preventing miscounts or product loss.

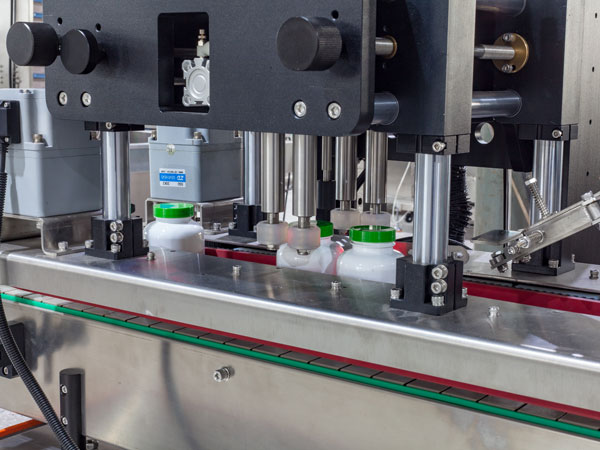

	Smart Insertion and Multi-Function Capping Section The line integrates automatic aluminum foil inserting, cap feeding, pressing, and screwing in one station. The 4-wheel capping machine ensures uniform torque and secure sealing, providing both efficiency and reliability for diverse bottle types.
	Metal Detection, Checkweighing, and Induction Sealing Advanced sensors detect metal contaminants and verify correct weight before sealing. The induction sealer ensures airtight, tamper-evident closure with aluminum foil, maintaining product safety and extended shelf life.

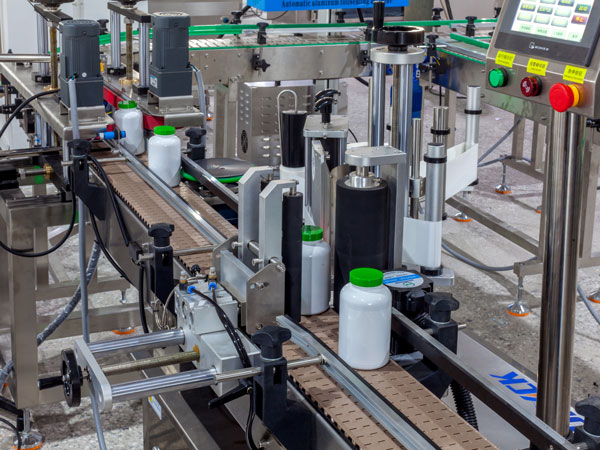

	Labeling and Traceability Coding System The bottom inkjet printer marks production dates, batch numbers, or barcodes clearly, followed by a high-speed labeling unit that applies wrap-around or dual-side labels. Optional vision inspection guarantees accurate labeling and a professional final presentation.
