High Precision Pharmaceutical Tablet Capsule Electronic Counting and Bottling Line

Application:

The pharma packaging line is an automatic bottle packaging solution designed for pharmaceutical, nutraceutical and healthcare product manufacturers. Equipped with high-speed electronic counting technology and intelligent control systems, this line accurately handles tablets, hard capsules, softgels and pills.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Videos Introduction:

Working Process

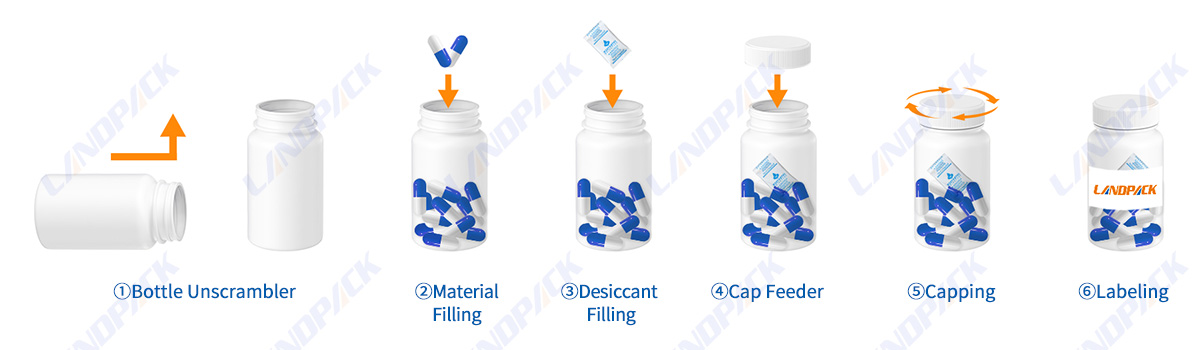

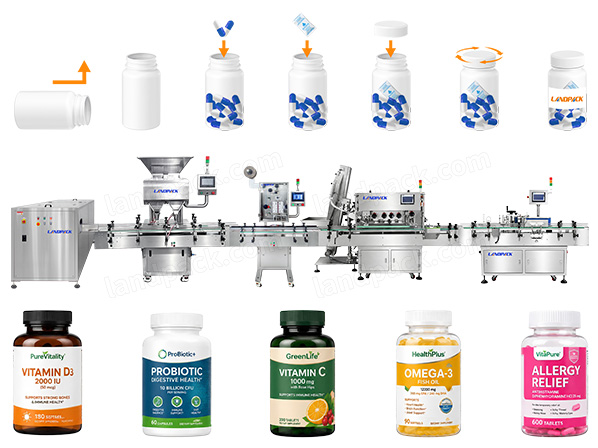

1. Bottle Unscrambling → Electronic Counting → Product Filling → Desiccant Insertion → Capping → Labeling → Finished Bottle Output

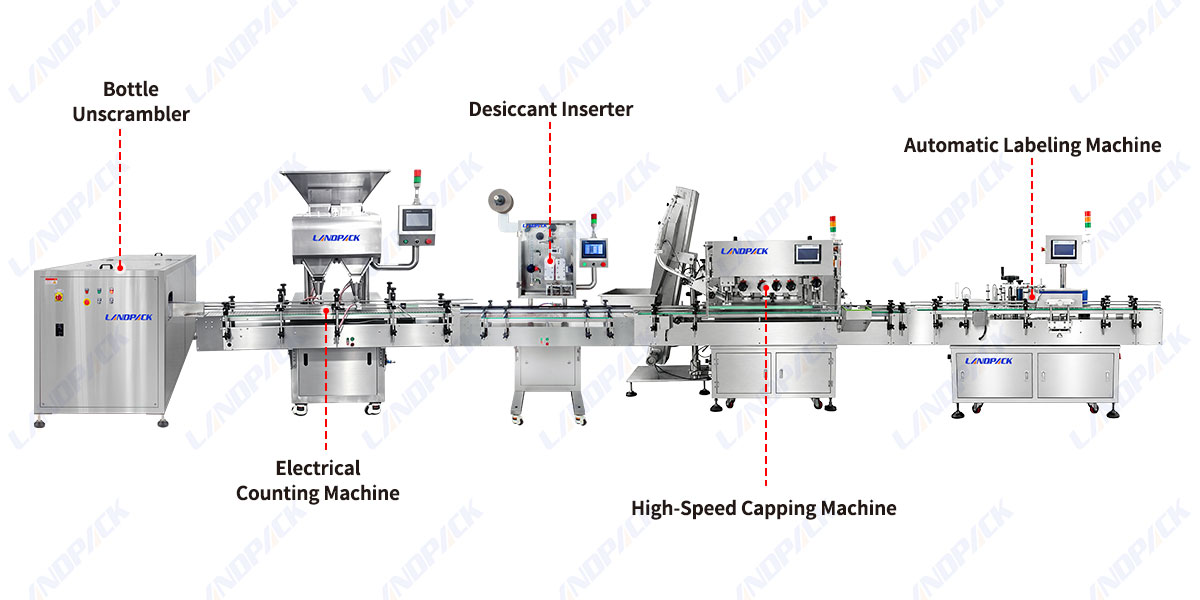

Key Component

Specification

Automatic Bottle Unscrambler
Bottle size range	15-300 ml
Power	0.50 KW
Air pressure/supply	0.5 MPa / 0.2 m³/h
Dimensions (L×W×H)	1006×1506×1200 mm
Weight	260 kg
Bottle diameter range	30-85 mm
Output	up to 260 bottles/min
Power consumption	3.4 KW
Compressed air	3.5 cfm (≈ 100 L/min)

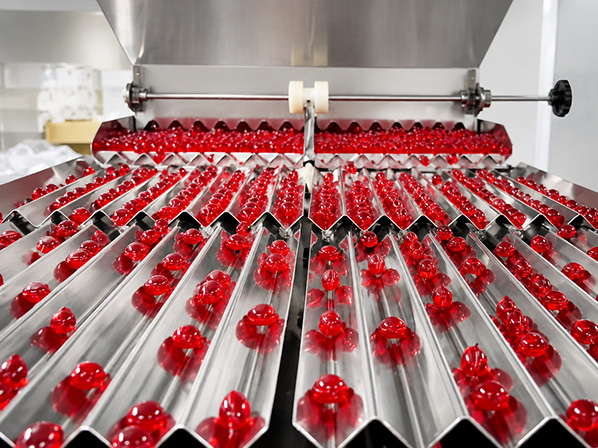

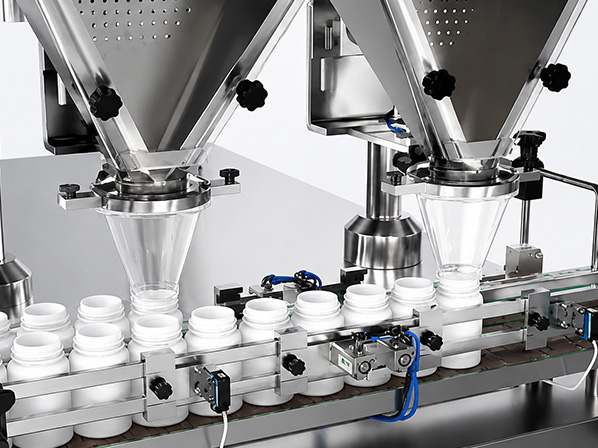

16-Channel Capsule Counting Machine
Output / Bottles per min	up to 80 bottles/min
Counting Accuracy / Precision	> 99.80 %
Power / Voltage	0.6 kW, 380 / 220 V, 50 Hz Richpacking
Net Weight	360 kg
Capacity	30–60 bottles/min
Counting range	1–999 grains
Tablet / Capsule size	Tablet: 3–22 mm, Capsule: 00–5
Air pressure & consumption	0.4–0.6 MPa, ~120 L/min
Overall size	180013001600 mm
Desiccant Bag Dispenser
Insertion Speed	60-150 bottles/min (depending on model & sachet size)
Sachet Type	Single strip or continuous roll, paper/film sachets
Sachet Size Range	Length 20-60 mm; Width 15-30 mm (customizable)
Bottle Size Range	Diameter 30-120 mm; Height up to 250 mm
Cutting & Feeding	Automatic sachet cutting, positioning, and inserting
Insertion Accuracy	≥ 99.8%
Control System	PLC with touch screen operation
Power Supply	AC 220 V, 50/60 Hz, 1.0 kW
Air Requirement	0.4-0.6 MPa, ~100 L/min
Machine Weight	300-400 kg
Automatic Bottle Capping Machine
Model	LFX-JX-01(Four wheel capping
Capacity	20-50 bottles/min
Bottle cap diameter	Ф22mm-Ф80mm
Bottle diameter	Ф35mm-Ф140mm
Bottle sealing height	38mm-300mm
Power	1.5KW
Voltage	220V, 50HZ
Air pressure	0.6-0.8Mpa
Weight	250kg
Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm

Features:

1. Photoelectric linkage technology with anti-dust design ensures stable operation in high-dust production environments.

2. Compatible with tablets, capsules, softgels, pills, candies, nuts and other solid products.

3. Intelligent PLC and touchscreen control support multiple languages and simple operation.

4. High-precision counting and filling system ensures consistent product quantity in each package.

5. Compact structure requires less than 30㎡ installation space with low energy consumption.

6. Easy adjustment, cleaning and maintenance reduce daily operating costs.

7. Multiple self-checking and alarm functions improve production safety and equipment reliability.

8. Modular design enables smooth connection with filling, sealing and labeling systems.
