Fully Automatic Gummy Pharmaceutical Tablet Capsule Counting and Bottling Line with Capping and Labeling Machine

Application:

The pharma packaging line is suitable for tablets, hard capsules, soft capsules, pills, coated tablets, Vitamins, calcium tablets, probiotics, fish oil capsules, dietary supplements, Gummy candies, vitamin gummies, functional gummies, and soft chew supplements.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

The pharma packaging line is suitable for HDPE bottles, PET bottles, plastic bottles, glass bottles, and pharmaceutical containers with screw caps, flip caps or customized closures.

Videos Introduction:

Working Process

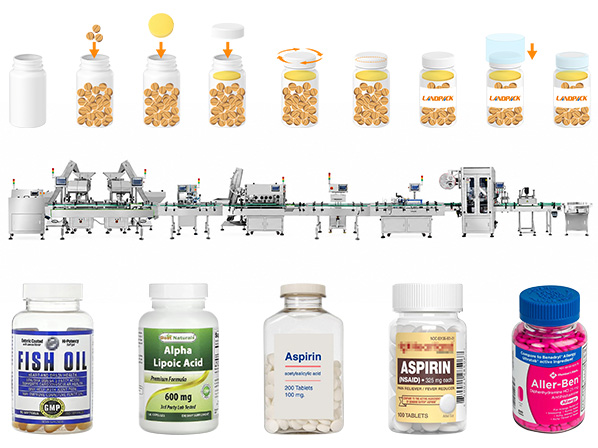

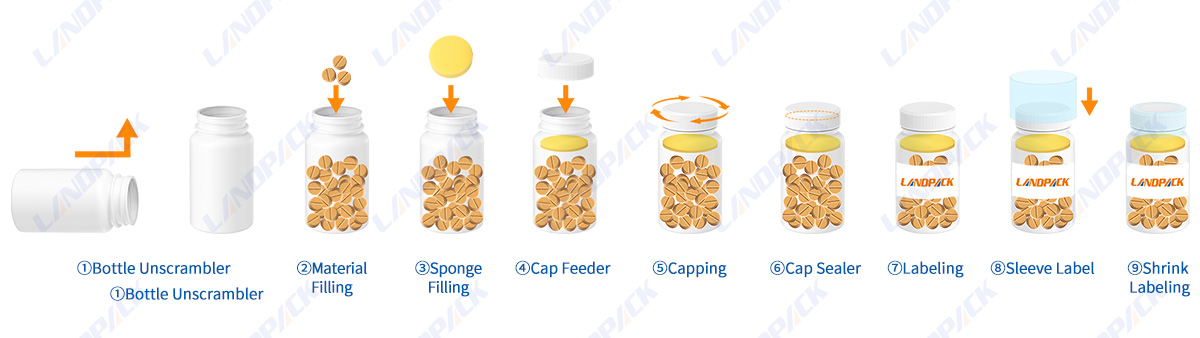

1. Bottle Feeding → Product Counting → Bottle Filling → Capping → Foil Sealing → Labeling → Finished Bottle Output

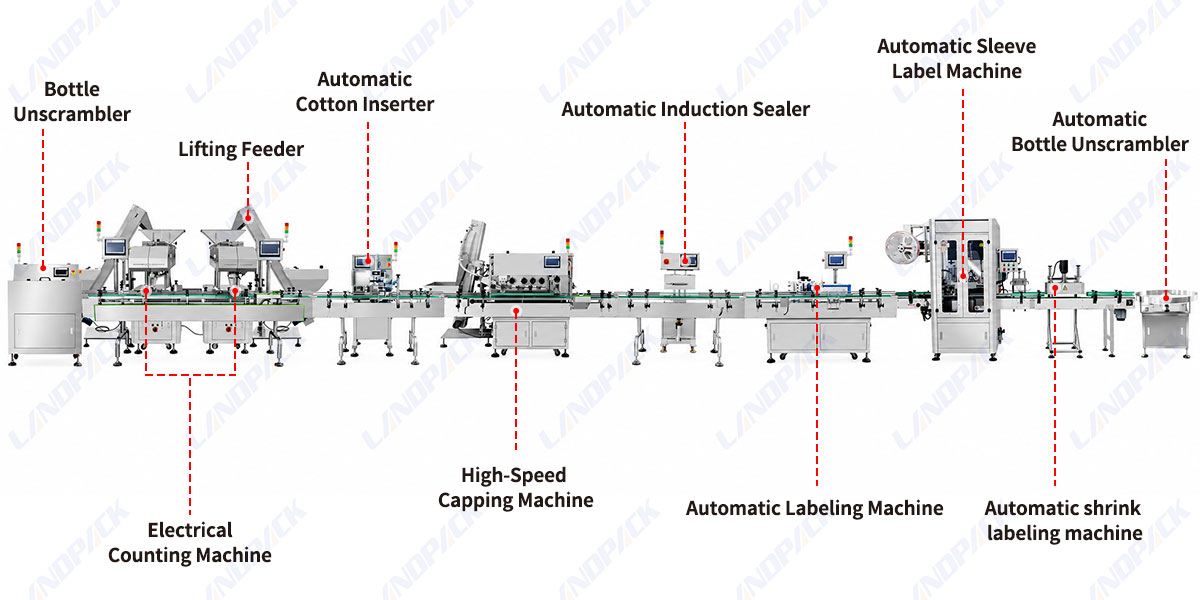

Key Component

Specification

Bottle Unscrambler
Max. output	150 bottles/min
Bottle size	15-300 mL
Voltage	220V /50 Hz
Power	0.5kW
Air pressure	0.3~0.6 MPa
Dimension( L×W×H)	1100×1740×1200 mm
Weight	337kg

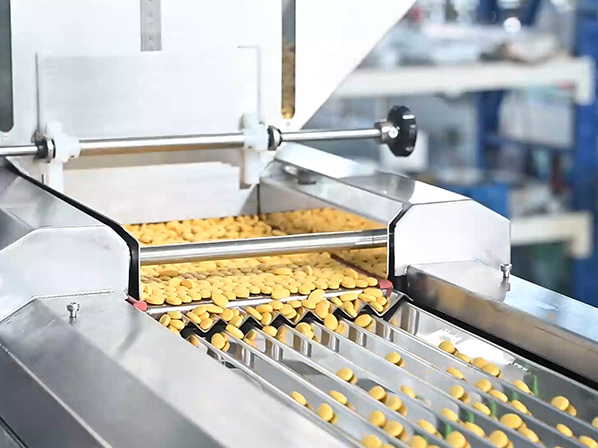

Electrical Counting Filling Machine
Num. of channel	8	12	16	24
Max. capacity(count/min)	4000	6000	8000	12000
Fill qty	1~1000
Product size(mm)	Thinkness:3～10mm; Diameter:3～13mm ; Length:3～21mm
Container size(mm)	Dia.:20～100mm Height:40～240mm
Power	AC 220V 50/60Hz
Power consumption	1.0kW	1.2kW	1.5kW	1.8kW
Compressed air supply (MPa)	0.6MPa
Compressed air consumption (L/min)	Approximately 100L/minClean air	130	200	260
Measurement (L×W ×H)(mm)	1325×1610×1770	1325×1610×1770	1580×1680×1770	1666×1610×1770
Hopper capacity (L)	28	34	50	60
Weight (kg)	600	600	700	800
Cotton Inserter
Bottling speed	10-60 bottles/min
Cotton length	5- 180 mm
Overall dimension	850 mm × 650 mm × 1350 mm
Conveyor belt length	1800 mm
Bottle dia	Ф 20～ Ф 100 mm
Bottle height	30-250 mm
Net weight	100 kg
Noise	≤ 75dB (a)
Compressed air	0.5MPa
Power supply	AC 220 V, 50 Hz
Power	400W
High-Speed Capping Machine
Max output	150 bottles/min
Suitable size range	15~300mL
Dia of Cap	15~65mm
Dia of bottle body	20~100mm
Bottle height	45~220mm
Voltage/Frequency	AC 220V/50Hz
Power consumption	1.50kW
Dimensions（LxWxH）	2600x1060x1950mm
Weight	613kg
Induction Sealing Machine Labeling Machine
Bottle neck diameter	20mm-60mm / 50-120mm(customizable)
Bottle height	0mm-450mm
Flow packing line speed	0-35 m/min
Sealing speed	0-400 bottles/min
Max power	4000W
Electricity power	220V，50/60Hz
Induction sensor size	450mm200mm90mm
Machine size(LWH)	510mm750mm1380mm
Machine net weight	85kg
Packaged size	600mm560mm700mm, 930mm830mm280mm
Package weight	120kg
Labeling Machine
Max output	180 bottles/min
Length of labels	20~250mm
Width of labels	20~75mm
Suitable bottle range	15~300mL
Height of bottles	30~150mm
Voltage/Frequency	AC 220V/50Hz
Power consumption	2kW
Dimensions(LxWxH)	1950x1060x1300mm
Weight	237kg
Collecting Table
Conveying Capacity	30-45 bottles/min
Power Supply	220V 50Hz
Total Power	0.5kW
Rotary Plate Dimension	Φ1000 ×1000 (mm)

Features:

1. Electronic counting system supports tablets, capsules, pills, softgels and various shaped products with high accuracy.

2. Counting speed reaches up to 12,000 pieces/min depending on product size and channel configuration.

3. Bottle unscrambler supports round, square, oval and flat bottles with flexible adjustment.

4. No-bottle no-fill function and photoelectric sensors improve packaging accuracy and reduce waste.

5. Automatic desiccant and cotton insertion systems improve product protection during transportation.

6. Adjustable capping system provides stable torque control for different bottle caps and neck sizes.

7. Induction sealing and labeling systems ensure secure sealing and professional package appearance.

8. PLC touchscreen control enables easy operation and integration with complete packaging lines.
