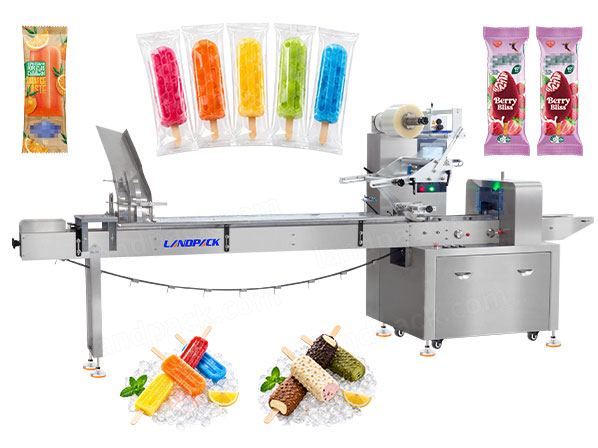

Automatic Popsicle Horizontal Flow Wrapping Machine with Feeding System

Application:

Automatic ice pop and popsicle flow packing machine with upper film feeding, automatic product loading, pillow bag forming, date printing, sealing and cutting.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

It can be used in frozen food, dairy dessert, ice cream and frozen beverage production lines where automatic product feeding, roll film wrapping, fin sealing, end sealing and cutting are required. Such as fruit ice pops, chocolate-coated ice cream bars, juice popsicles, yogurt ice bars, coconut milk bars, jelly ice pops, milk popsicles, bean ice pops, frozen fruit bars, flavored water ice pops and sandwich ice cream bars.

Machine Details:

Working Process

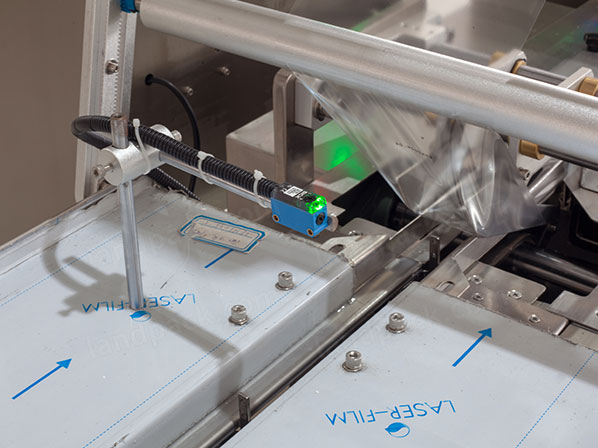

1. Popsicle Feeding → 2. Product Conveying → 3. Position Detection → 4. Ink-Roll Coding → 5. Upper Film Feeding → 6. Bag Forming → 7. Longitudinal Sealing → 8. End Sealing and Cutting → 9. Finished Product Output

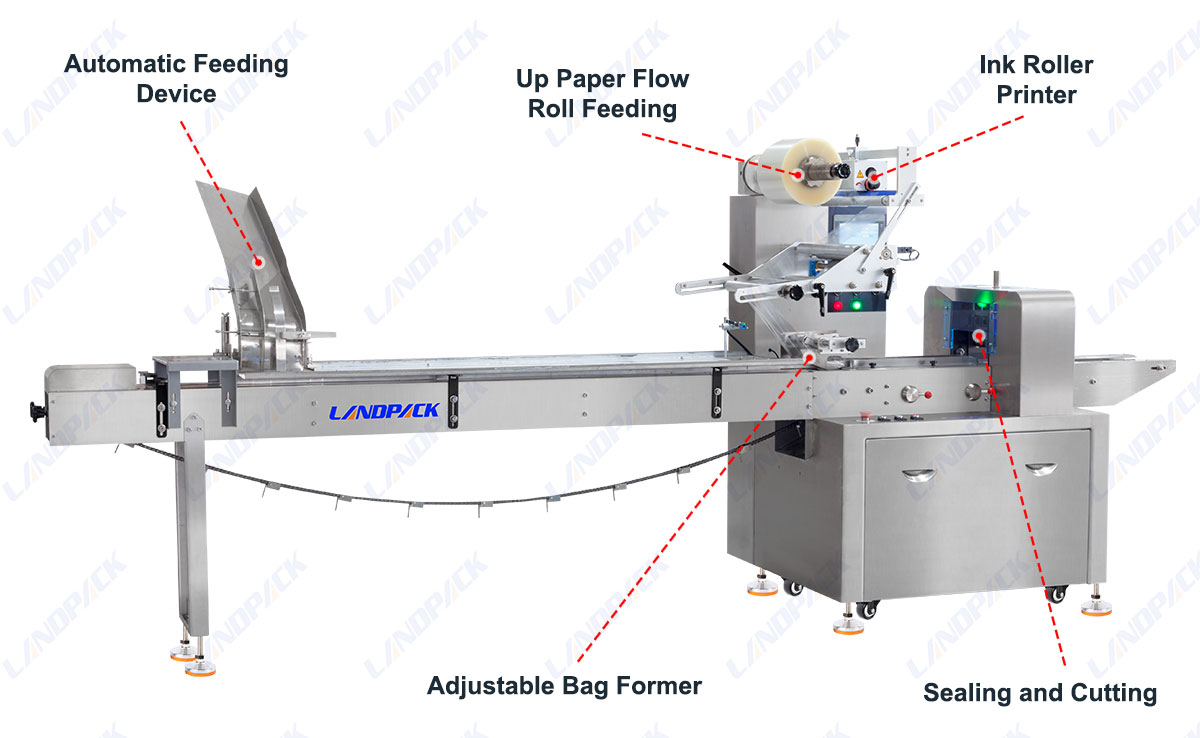

Key Component

Specification

Model	LP-350	LP-420	LP-450	LP-600	LP-700
Film Width	Max.350mm	Max.420mm	Max.450mm	Max.600mm	Max.700mm
Bag Length	65-330mm	150-420mm	150-450mm	160-500mm	180-600mm
Bag Width	50-160mm	50-180mm	50-180mm	100-280mm	100-330mm
Products High	Max.60mm	Max.65mm	Max.75mm	Max.110mm	Max.110mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	Max.320mm	Max.320mm
Packing Speed	40-180 bags/min	30-150 bags/min	30-150 bags/min	20-150 bags/min	20-130 bags/min
Power	220V, 50/60Hz, 2.6KW	220V, 50/60Hz, 2.8KW	220V, 50/60Hz, 2.8KW	220V, 50/60Hz, 2.8KW	220V, 50/60Hz, 2.8KW

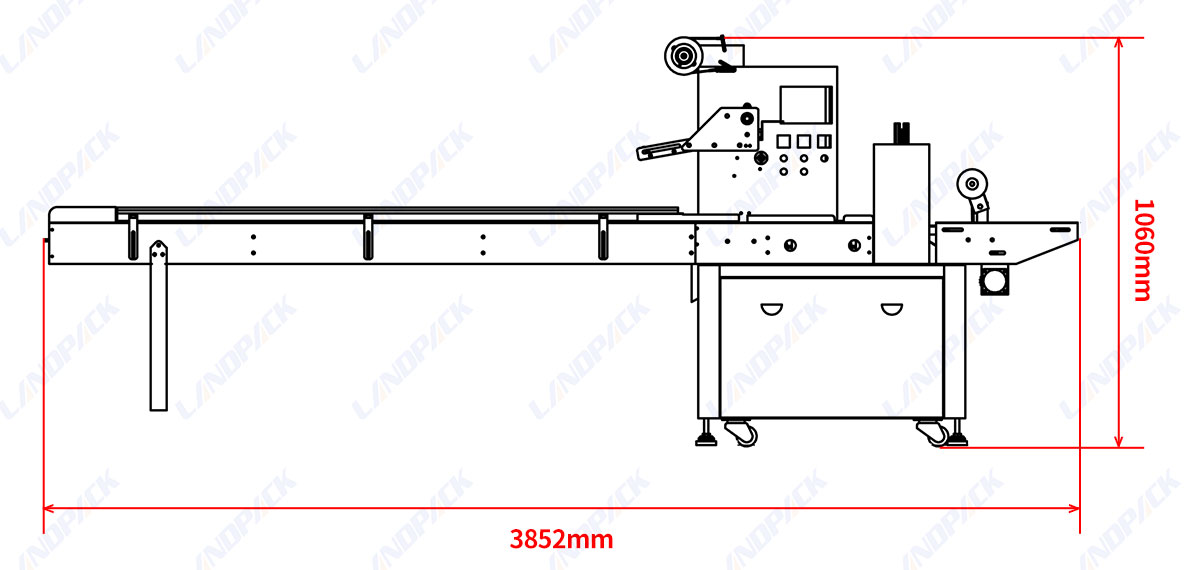

Machine Size(LWH)	40307701420 mm	40307701420 mm	40308201420 mm	40309701500 mm	403010701500 mm
Machine Weight	About 580kg	About 600kg	About 650kg	About 680kg	About 720kg
Optional Devices	1. Lateral feed device, 2. Straight feed device, 3. Belt material conveyor, 4. End sealing auxiliary conveyor, 5. Auxiliary material feeding device, 6. Material cut prevention device, 7. Perforating device, 8. Angle folding device, 9. Date Printer, 10.Labeling machine

Features:

1. Automatic ice pop feeding device places products onto the conveyor at controlled intervals.

2. Chain infeed conveyor keeps each ice pop separated and positioned before entering the bag former.

3. Upper roll film feeding structure guides the packaging film smoothly above the product conveying section.

4. Adjustable bag former can be changed according to different ice pop widths and packaging dimensions.

5. Film pressing wheels guide the wrapped film and help maintain consistent film movement.

6. Fin seal wheels complete the longitudinal back seal while the product moves continuously through the machine.

7. Horizontal sealing and cutting unit seals both ends of the package and separates each finished bag.

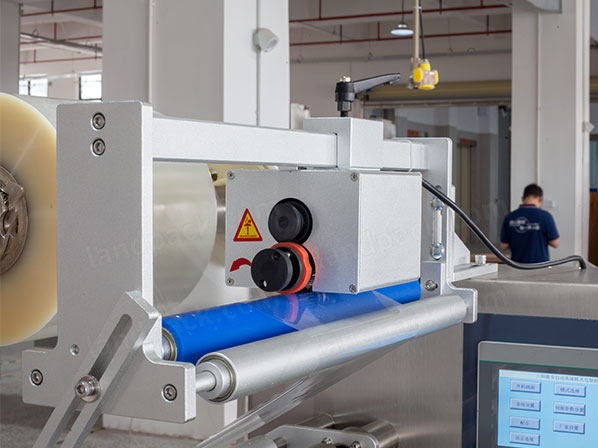

8. Ink roller printer can print the production date, batch number or other basic coding information on the film.

9. Conveyor speed, bag length and sealing temperature can be adjusted according to the product and film specifications.

10. The machine can be connected with upstream freezing equipment or downstream collection and cartoning systems.
