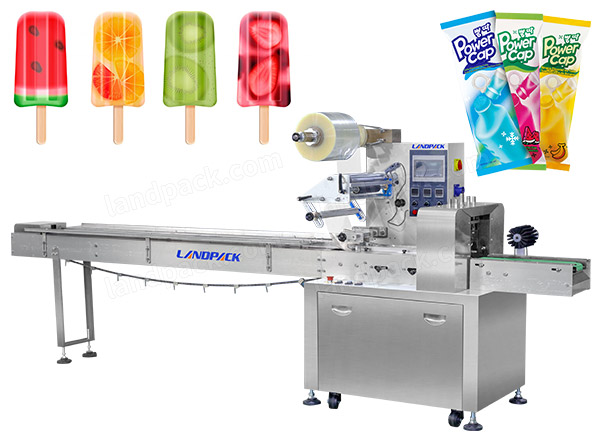

Automatic Ice Cream Popsicle Packing Machine Ice Lolly Wrapping Flow Pillow Packaging Machinery

Application:

Multi-Product Compatibility: Adjustable settings to handle diverse shapes and sizes, including cones (sugar/waffle), biscuits,lollies (stick-based), and popsicles (50–200g range).

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. High Efficiency – Delivers fast packaging speeds of 60–120 packs per minute, perfectly suited for small to medium-scale production lines.

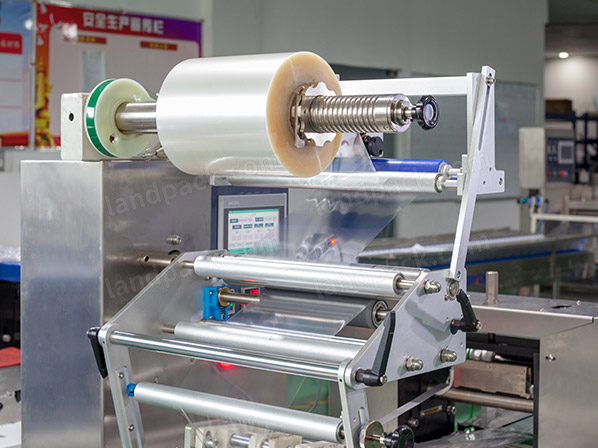

2. Precision Control – Servo-driven film feeding and cutting system ensures precise alignment, reducing film waste and enhancing packaging accuracy.

3. User-Friendly Operation – Intuitive touchscreen HMI allows quick parameter adjustments, recipe management, and real-time monitoring of speed, temperature, and fault alerts.

4. Hygienic & Food-Safe Design – Features stainless steel contact components, easy-to-clean surfaces, and meets international food-grade standards such as CE and FDA.

5. Flexible Add-ons Available – Optional features include date coding, nitrogen gas flushing to extend shelf life, and automatic feeding systems for fully integrated production.

6. Automatic fault detection – Self-diagnosis function ensures safe operation and protects the machine from damage.

Application:

Multi-Product Compatibility: Adjustable settings to handle diverse shapes and sizes, including cones (sugar/waffle), biscuits,lollies (stick-based), and popsicles (50–200g range).

Videos Introduction:

Specification:

Model	LP-450X	LP-600X	LP-700X	LP-800X	LP-900X
Film width	Max.450mm	Max.600mm	Max.700mm	Max.800 mm	Max.900mm
Bag length	150-450mm	160-500mm	180-600 mm	210-650mm	240-700mm
Bag width	50-180mm	100-280mm	100-330 mm	120-350mm	150-400mm
Product height	Max.80mm	Max.110mm	Max.110 mm	Max.130 mm	Max.150mm
Film roll diameter	Max.320mm
Packaging rate	40-150 bags/min	20-150 bags/min	20-130 bags/min	20-120 bags/min	20-100 bags/min
Power	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 4.5kw	220V, 50/60Hz, 4.5kw
Machine size	(L)4150(W)820(H)1450mm	(L)4300(W)920(H)1460mm	(L)4380(W)980(L)1480mm	(L)4100(W)1170(H)1550mm	(L)4300(W)1270(H)1550mm
Machine quality	About650kg	About680kg	About720kg	About800kg	About 850kg
Remarks	Optional air filling device/optional angle folding
Film material）	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

Working Process:

1.Popsicle Feeder

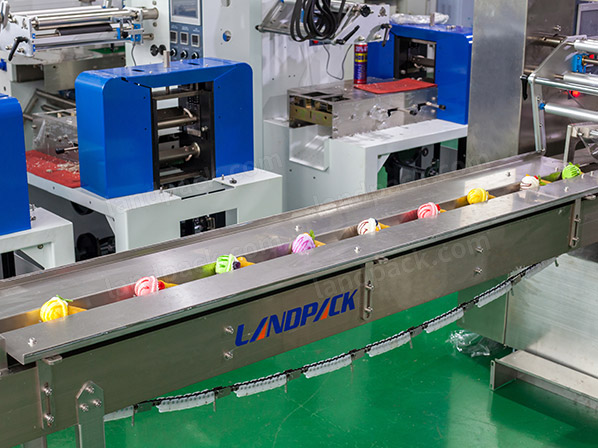

2.Transport the popsicle

3.Pull the packing film

4.Seal the popsicle into bag.
