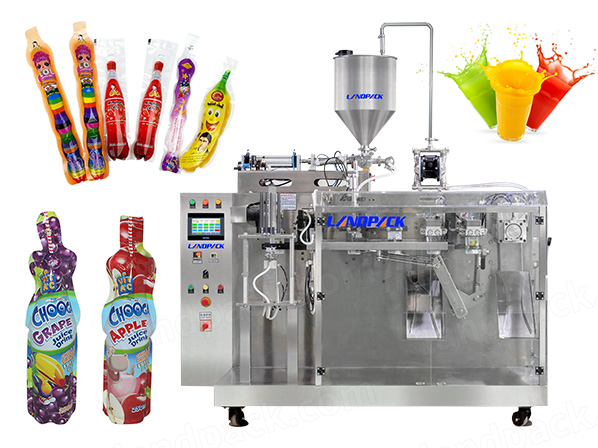

Automatic Doypack Bag Sprout Liquid Juice Popsicle Ice Lolly Packing Machine

Application:

It is suitable for differernt kinds of liquid products like juice, ketchup, sauce, oil, soup, laundry detergent, liquid soap, softener, shampoo ect. automatic metering, filling, sealing and packing into premade bags.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Quick Bag Size Adjustment – Bag width can be automatically adjusted at the touch of a button, enabling rapid changeover between specifications.

2. Single Shaft with CAM Design – Enhances packaging speed and operational stability while reducing maintenance needs and lowering the defect rate.

3. Modular Heating System – Ensures precise temperature control with real-time fault alarms for safe and reliable sealing performance.

4. Optimized Mechanical Design – Minimizes material waste, enhances equipment stability, and prolongs service life.

5. User-Friendly Control System – Advanced PLC with POD (touch screen) interface enables intuitive operation and smooth man-machine interaction.

Application:

It is suitable for differernt kinds of liquid products like juice, ketchup, sauce, oil, soup, laundry detergent, liquid soap, softener, shampoo ect. automatic metering, filling, sealing and packing into premade bags.

Videos Introduction:

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

Technology:

1.Giving bag;

2. Pick up the bag(coding);

3.Open the bag up and down;

4.Filling;

5.Heating sealing;

6.Output of product;
