High Speed Flow Popsicle Ice Cream Automatic Horizontal Pillow Packaging Machine

Application:

Horizontal flow packing machine is suitable for different kinds of product packing into roll film bags. Such as popsicle, chocolate, protein bars, bakery food of cake, biscuit, bread, instant noodle, leafy vegetables, fruit and non-food products like hardware parts, daily supplies, hotel supplies, medical products, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Equipped with trusted brand PLC and inverter – Ensures stable performance and enhanced reliability of the entire system.

2. 7-inch branded touch screen – User-friendly interface with intelligent system control for easier operation.

3. Independent temperature control – High-precision temperature management with an accuracy of ±1°C for consistent sealing quality.

4. Photocell sensor for film tracking – Automatically corrects film deviation to ensure accurate cutting and packaging

5. Simple and intuitive interface – Streamlined system design allows easy parameter settings and quick adjustments.

6. Automatic fault detection – Self-diagnosis function ensures safe operation and protects the machine from damage.

Application:

THorizontal flow packing machine is suitable for different kinds of product packing into roll film bags. Such as popsicle, chocolate, protein bars, bakery food of cake, biscuit, bread, instant noodle, leafy vegetables, fruit and non-food products like hardware parts, daily supplies, hotel supplies, medical products, etc.

Videos Introduction:

Specification:

Model	LP-450X	LP-600X	LP-700X	LP-800X	LP-900X
Film width	Max.450mm	Max.600mm	Max.700mm	Max.800 mm	Max.900mm
Bag length	150-450mm	160-500mm	180-600 mm	210-650mm	240-700mm
Bag width	50-180mm	100-280mm	100-330 mm	120-350mm	150-400mm
Product height	Max.80mm	Max.110mm	Max.110 mm	Max.130 mm	Max.150mm
Film roll diameter	Max.320mm
Packaging rate	40-150 bags/min	20-150 bags/min	20-130 bags/min	20-120 bags/min	20-100 bags/min
Power	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 4.5kw	220V, 50/60Hz, 4.5kw
Machine size	(L)4150(W)820(H)1450mm	(L)4300(W)920(H)1460mm	(L)4380(W)980(L)1480mm	(L)4100(W)1170(H)1550mm	(L)4300(W)1270(H)1550mm
Machine quality	About650kg	About680kg	About720kg	About800kg	About 850kg
Remarks	Optional air filling device/optional angle folding
Film material）	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

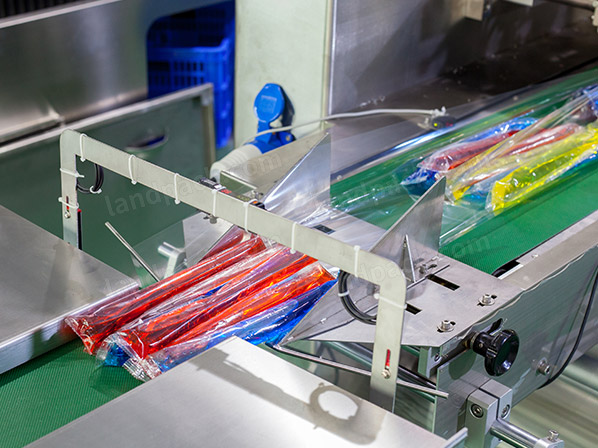

Working Process:

1.Popsicle Feeder

2.Transport the popsicle

3.Pull the packing film

4.Seal the popsicle into bag.
