★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.
Specification
|
Model
|
LP-350
|
LP-420
|
LP-450
|
LP-600
|
LP-700
|
|
Film Width
|
Max.350mm
|
Max.420mm
|
Max.450mm
|
Max.600mm
|
Max.700mm
|
|
Bag Length
|
65-330mm
|
150-420mm
|
150-450mm
|
160-500mm
|
180-600mm
|
|
Bag Width
|
50-160mm
|
50-180mm
|
50-180mm
|
100-280mm
|
100-330mm
|
|
Products High
|
Max.60mm
|
Max.65mm
|
Max.75mm
|
Max.110mm
|
Max.110mm
|
|
Film Roll Diameter
|
Max.320mm
|
Max.320mm
|
Max.320mm
|
Max.320mm
|
Max.320mm
|
|
Packing Speed
|
40-180 bags/min
|
30-150 bags/min
|
30-150 bags/min
|
20-150 bags/min
|
20-130 bags/min
|
|
Power
|
220V, 50/60Hz, 2.6KW
|
220V, 50/60Hz, 2.8KW
|
220V, 50/60Hz, 2.8KW
|
220V, 50/60Hz, 2.8KW
|
220V, 50/60Hz, 2.8KW
|
|

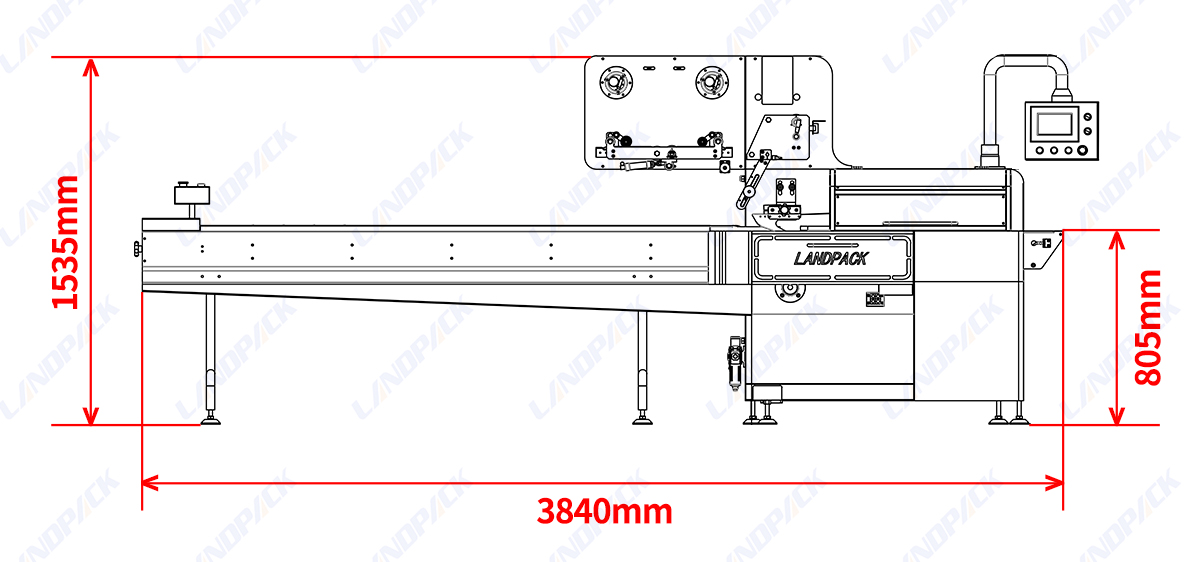

Machine Size(L*W*H)mm
|
4030*770*1420
|
4030*770*1420
|
4030*820*1420
|
4030*970*1500
|
4030*1070*1500
|
|
Machine Weight
|
About 580kg
|
About 600kg
|
About 650kg
|
About 680kg
|
About 720kg
|
|
Optional Devices
|
1. Lateral feed device, 2. Straight feed device, 3. Belt material conveyor, 4. End sealing auxiliary conveyor, 5. Auxiliary material feeding device, 6. Materia cut prevent device, 7. Perforating device, 8. Angle folding device, 9. Date Printer, 10.Labeling machine
|
