High Accuracy Multi Lanes Medical Chemical Powder Sachet Bag Packing Machine

Application:

It is suitable to pack powder materials in the fields of pharmacy industry, food industry and daily industry. Such as protein powder, milk powder, drug powder, bone-stronger powder, lotus powder and much more.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Packing type:

Features:

1. Full material is 304 stainless steel.

2. Heavy-duty design suits for high-speed operation.

3. No waste of film design, no reserved film edge required.

4. Motorized Roller type film dividing device.

5. PLC & Touch screen HMI control.

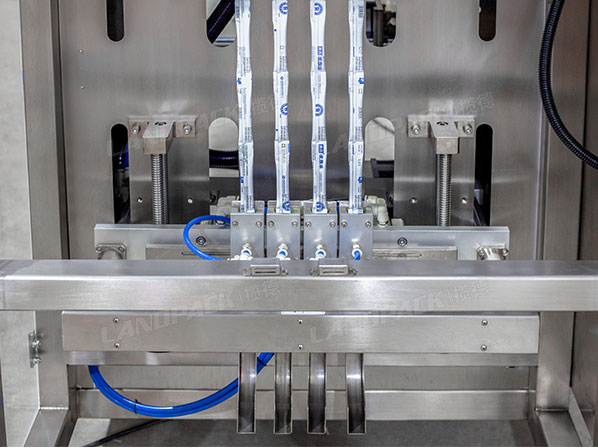

6. Guided servo motorized film pulling device integrated with horizontal seal.

7. Individual servo auger dosing for each lane and automatic dosing range adjustment by PLC.

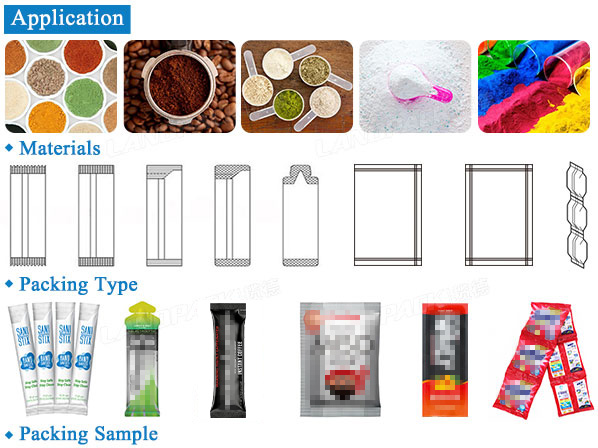

Application:

By configuring with different accessories, suitable for measuring normal or even free-flowing powders, such as milk powder, rice flour, protein powder, powdery drugs, powder additives, glucose, dyeing Ingredients, flavors, spices, etc.

Videos Introduction:

Specification:

Model	LD-280BF	LD-560BF
Lane number	4-6 Line	8-12 Line
Filling Method	Auger filling by servo motor
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw
Dimension & weight	13859182005mm;350kg	168513002005mm;550kg

Packing type:

1.Sealing type:4 sides sealing;

2.Cutting type:Straight cutting; Zig zag cutting; Round cutting; Irregular
