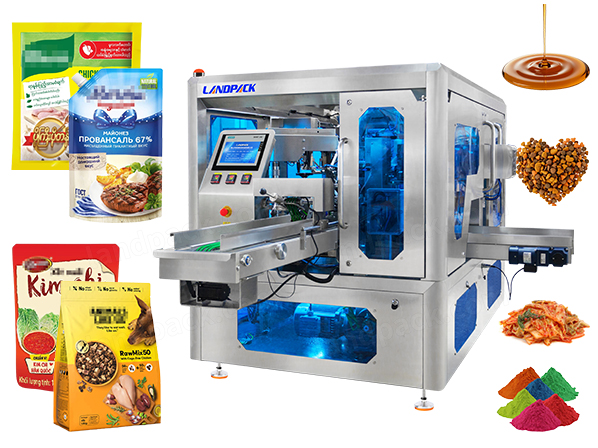

Automatic Rotary Premade Pouch Stand up Pouch Doypack Packing Machine

Application:

This rotary packing machine is suitable for premade pouch and doypack packaging of various granule, powder, liquid and products. Such as nuts, beans, candy, gummy, jerky, pet food, milk powder, detergent, sauce, juice, seasoning and similar products. It runs continuously at speeds up to 60 bags/min, supporting different type pouch sizes and shapes.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This Automatic Rotary Premade Pouch Stand up Pouch Doypack Packing Machine is suitable for premade pouch and doypack packaging of various granule, powder, liquid and products. Such as nuts, beans, candy, gummy, jerky, pet food, milk powder, detergent, sauce, juice, seasoning and similar products. It runs continuously at speeds up to 60 bags/min, supporting different type pouch sizes and shapes. suitable for stand-up pouches, zipper pouches, spout pouches, and other customized pouches.

Machine Details:

Working Process

1. Pouch Feeding → 2. Pouch Opening → 3. Granule Filling → 4. Heat Sealing → 5. Date Coding → 6. Finished Pouch Output

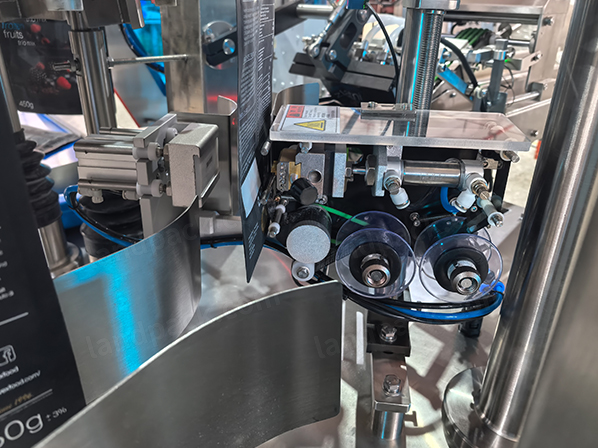

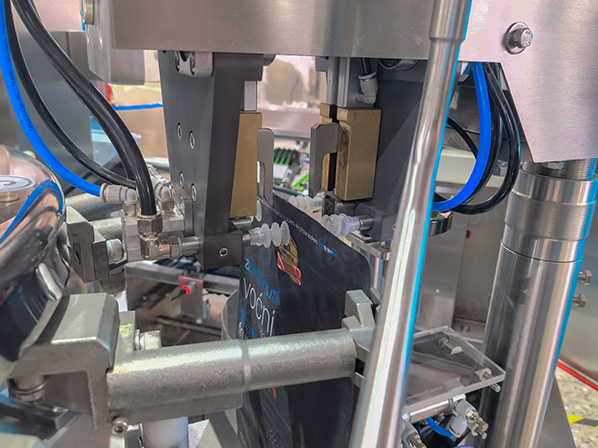

Key Component

Specification

ITEM	LD-8200	LD-8250	LD-8300
BAG SPEED	max 60 bags/min (Depanding on the quality of the packing film,packaging materials,packaging weight ect.)
BAG SIZE	L100-300mm W70-200mm	L100-350mm W130-250mm	L150-450mm W200-300mm
BAG TYPE	Pre-made bags,Stand-up bag,Four-side bas,Three-side bag,Special-shaped bag
WEIGHING RANGE	10G-1KG	10G-2KG	10G-3KG
MEASUREMENT ACCURACY	≤±0.5~1%，（Depanding on the measurement equipment and materials）
MAXIMUM BAG WIDTH	200mm	250mm	300mm
GAS CONSUMPTION	0.8pa 0.3m³/min
TOTAL POWDER/VOLTAGE	1.5KW 380V 50/60HZ	1.8KW 380V 50/60HZ	2KW 380V 50/60HZ
AIR COMPRESS	Not less than 1 CBM
DIMENSION	L1900W1400H1450		L2000W1500H1550
MACHINE WEIGHT	1300KG		1500KG

Features:

1. Custom-designed, patent-pending design of a rotary packing machine with a solid structure.

2. The entire frame of the machine is comprised of stainless steel with a chamfered, brushed and chamfered surface.

3. The doypack's eight stations can support different sizes of pouches using a single button pouch width adjustments.

4. The zipper's servo-controlled opening permits an easy adjustment of the pouch's opening angle.

5. The poking device and the mouthwashing function of bags guarantee a tidy, neat sealing.

6. Siemens PLC as well as 10-inch touchscreen screen, along with security doors, alarm system and a separate electrical design.
