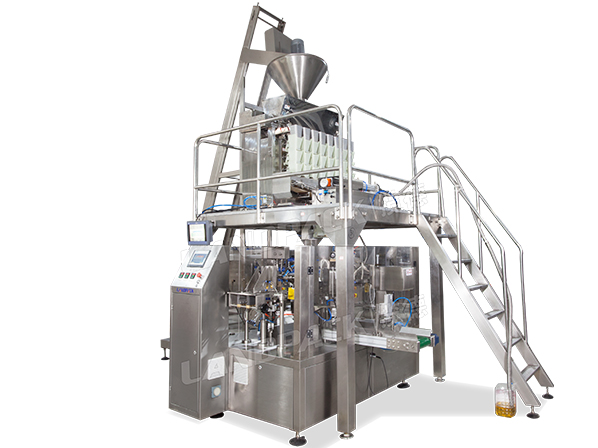

Premade Pouch (Doypack) Filling and Sealing Machine (8 Working Stations)

Application:

This 8 working stations premade pouch (doypack) filling and sealing machine is an automated packaging machine designed to efficiently fill premade pouches with various products and seal them securely. The machine is widely used in the food, beverage, pharmaceutical, and other industries for packaging a variety of products, including powders, liquids, solids, and granules.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Stainless steel appearance, beautiful and high-grade, stable operation;

2. Replace manual packaging, the production efficiency is increased, and the production cost is greatly reduced;

3. Adopt PLC control, touch screen operation, a wide range of use, set the speed of operation according to production capacity requirements;

4. Changing the size of the bags quickly and easily which can be adjusted by handle;

5. Automatic detection function, the pouch can be recycle used if these situation happens: bags can not open or open the bag incomplete, no feeding, no heat sealing;

6. It can be used in doypack bags, handbags, zipper bags, four-sided bags, three-sided bags, paper bags, M-shaped bags and other composite bags;

7. It can automatically perform the functions of suction bag, date printing, bag opening, materials filling, bag sealing, finished product output.

Application:

1. Block: chocolate, candies, cereal, biscuits, cakes, puffed food, etc; 2. Granule: nuts, capsules, seeds; 3. Powder: seasoning, milk powder, washing powder, fine sugar, etc; 4. Liquid/ Sauce：detergent, juice, beverage, ketchup, jam; 5. Pickles: carrots, etc.

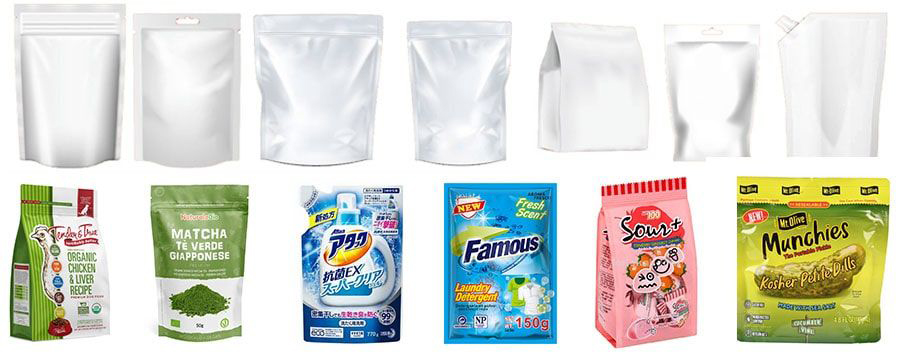

1. Doypack pouch; 2. Resealable zipper pouch; 3. Quad seal stand up pouch; 4. Spouted pouch; 5. Pouch with hanging hole; 6. Other customized premade pouch.

Videos Introduction:

Specification:

The Main Technical Parameters
Model	LD 8200D/ 8300D
Bag Size	Width:80-210/200-300mm, Length:100-300/100-350mm
Filling Volume	5-2500g (Depending on type of products)
Capacity	30-60bags/min (The speed depends on type of products and packaging material used)
Capacity	25-45bags/min (For zipper bag)
Package Accuracy	Error≤±1%
Total Power	2.5KW (220V/380V,3PH,50HZ)
Demension	171015051640 (LWH)
Weight	1480KGS
Compress Air Requirement	≥0.8m³/min supply by user
We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.

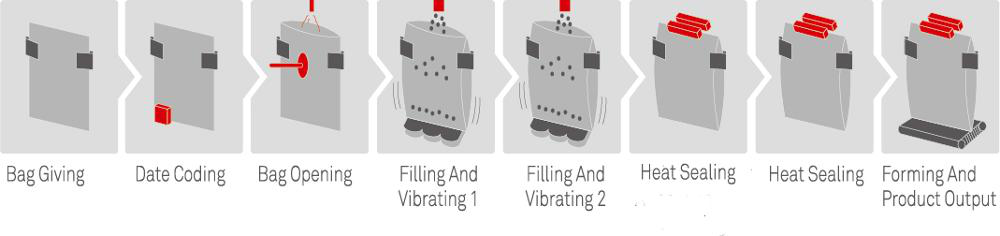

Workflow:

1. Bag giving;

2. Date coding;

3. Bag opening;

4. Filling and vibrating 1;

5. Filling and vibrating 2;

6. Product settling after filling by vibrating;

7. Heat sealing;

8. Forming and product output.
