Nuts Packing Machine| Vertical Form Fill Seal

Description:

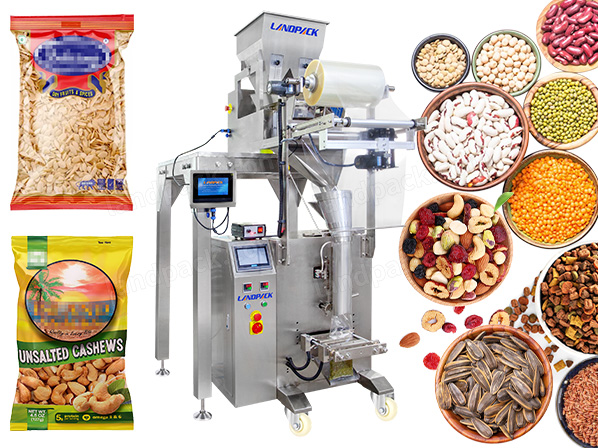

This vertical packing machine is ideal for peanuts, almonds, cashews, pistachios, walnuts, macadamias, and mixed nuts, as well as flavored or roasted varieties such as salted, honey-roasted, or spiced nuts.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The nut packing machine supports multiple flexible pouch types for nut packaging, including pillow pouches, back sealing pouches, and gusseted pouches, allowing manufacturers to choose the most suitable style for nut products.

Wide Application Range

The LD-380AS vertical packing machine combined with a 2-head linear weigher is ideal for efficiently packaging various types of granule products:

Nut Products

• salted nuts, honey-roasted nuts, spiced nuts, coated nuts.

Roasted & Flavored Nuts

• Pumpkin Puree, Sweet Potato Paste, Carrot Puree

Dry Food Granules

• chickpeas, broad beans, dried peas, dehydrated beans.

Machine Details:

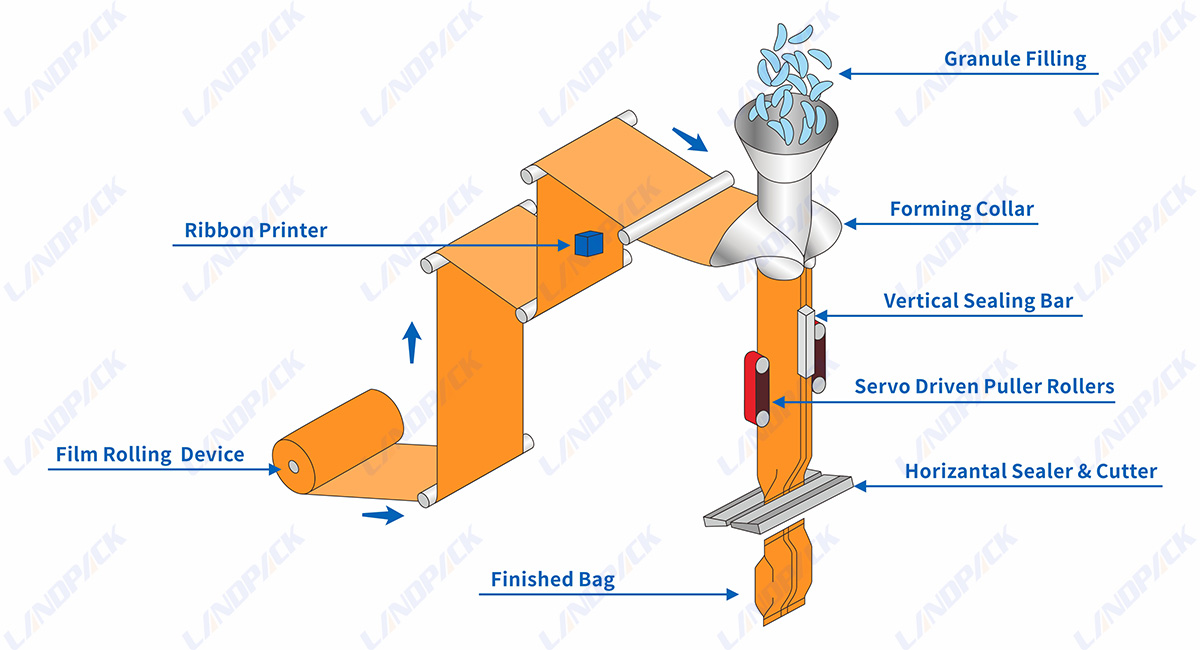

Working Process

1. Product Feeding → 2. 2 heads linear weigher measuring → 3. Bag forming → 4. Automatic filling → 5. Hot sealing → 6. Output

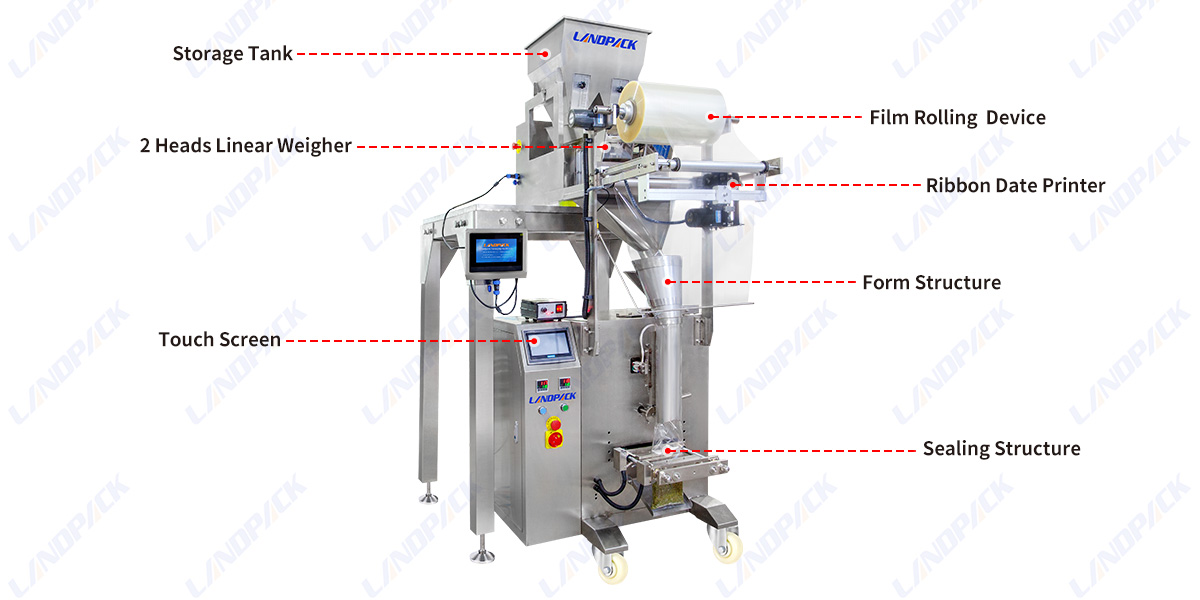

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Model LD-420 LD-520 LD-720 LD-900 LD-1050 LD-1200

Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm

Bag Length 80-300mm 80-350mm 100-500mm 100-600mm 100-800mm 100-1000mm

Bag Width 60-200mm 100-250mm 180-350mm 260-430mm 290-505mm 290-580mm

Film Roll Diameter Max.320mm Max.320mm Max.320mm 400mm 400mm 400mm

Pakaging Rate 5-60bag/min 5-60bag/min 5-55bag/min 5-20bag/min 5-20bag/min 5-20bag/min

Film Width Max.420mm Max.520mm 150-Max.720mm Max.900mm Max.900mm Max.1200mm

Measurement Range 150-1500ml 5-2000ml 4000ml 1-25L 1-25L 1.5L-45L

Features:

Machine Image	Benefits

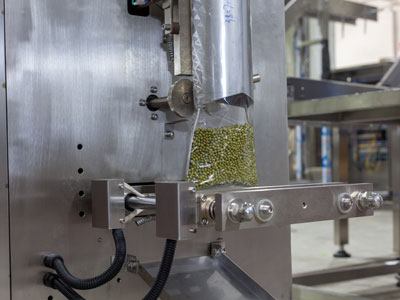

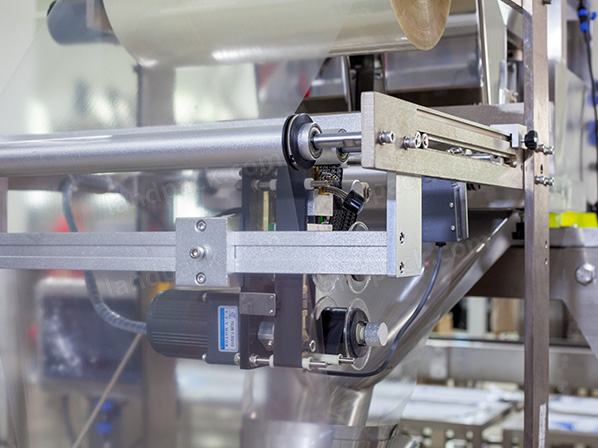

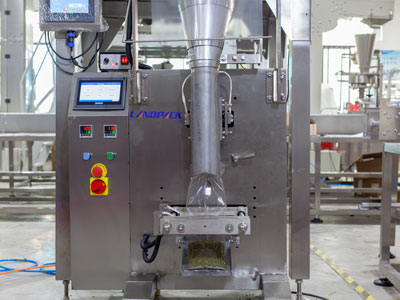

	Stable Film Pulling & Precise Bag Forming The LD-380AS utilizes an efficient servo-driven film pulling system for reliable bag forming. This ensures smooth bag forming, consistent sealing quality and stable operation during long production runs.

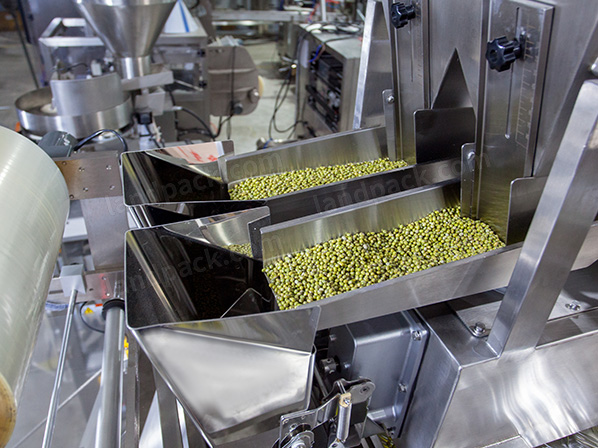

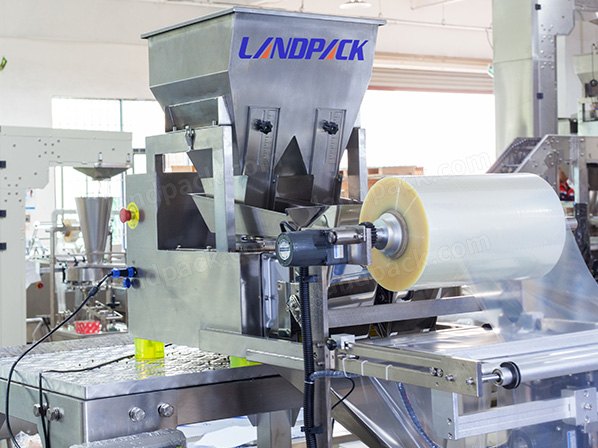

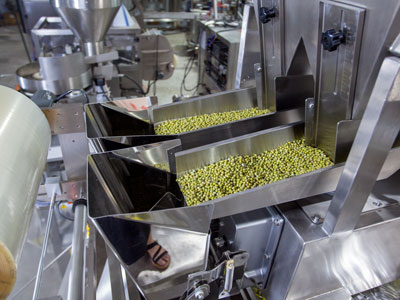

	Accurate Dual-Head Linear Weighing System This 2-head linear weigher ensures accurate dosing for various nut sizes and densities with minimum variation between weight readings
	Flexible Pouch Size & Filling Capacity This machine supports multiple pouch dimensions, giving manufacturers access to an extensive product lineup--from single serve packs, small retail bags or family snack packs

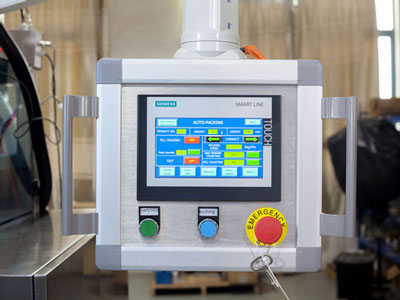

	User-Friendly Touchscreen Control System Equipped with an easy to use PLC interface, operators can effortlessly set parameters, monitor performance and quickly switch recipes for different nut products.
	Hygienic Construction for Food Safety Constructed using stainless steel contact surfaces and an open frame design, the machine meets food safety standards while simplifying daily cleaning and maintenance operations.

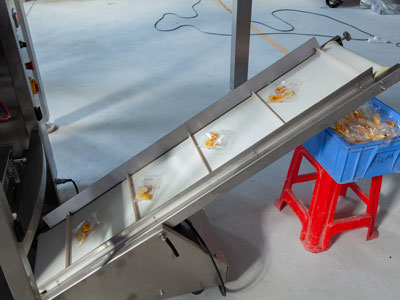

	Integral Output Conveyor for Continuous Production Our finished product conveyor ensures smooth discharge of packed nut bags into downstream processes like checkweighing, metal detection, and cartoning.

Learn More:

1.If you need more Nut packing Machinee for your product , read our-- Nuts Cashew Peanut Packing Machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L
