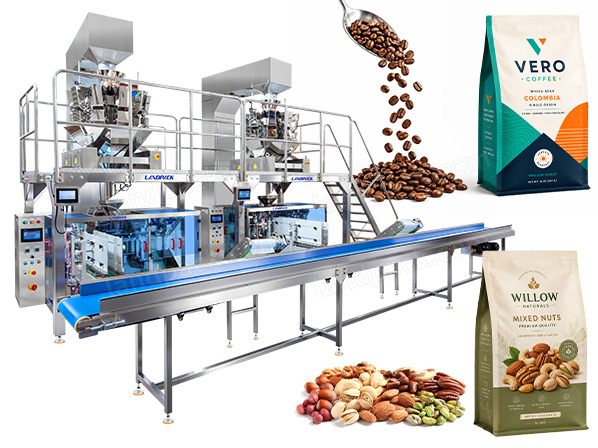

Automatic Peanut Mixed Nuts Cashew Packing Machine Premade Pouch Packaging Line

Application:

The Automatic Peanut Mixed Nuts Cashew Premade Pouch Packaging Line is suitable for Peanuts, cashews, almonds, walnuts, pistachios, macadamia nuts, mixed nuts, nut combinations, snack assortments, roasted snack products, Sunflower seeds, pumpkin seeds, melon seeds, edible seeds, dried fruits, beans, grains, pet snacks.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

The Automatic Peanut Mixed Nuts Cashew Premade Pouch Packaging Line is suitable for premade pouch, zipper pouches, stand-up pouches, flat bottom bags, doy packs and customized retail pouches. Compatible with different pouch materials including PET/PE, BOPP/CPP, PET/AL/PE and laminated composite films.

Videos Introduction:

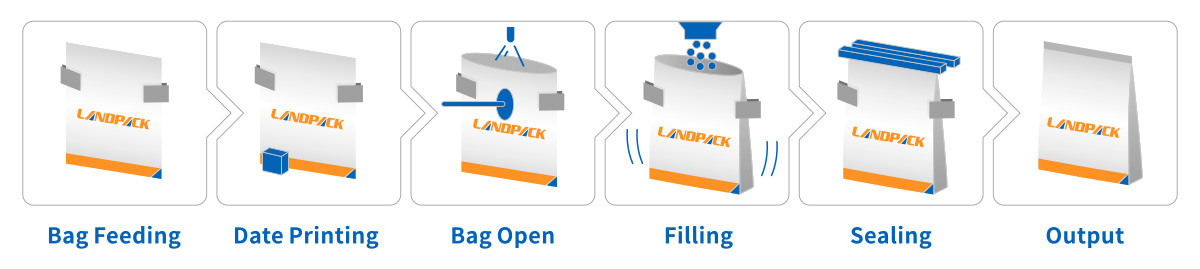

Working Process

1. Material Feeding → Multihead Weighing → Pouch Feeding → Bag Opening → Product Filling → Heat Sealing → Finished Bag Conveying

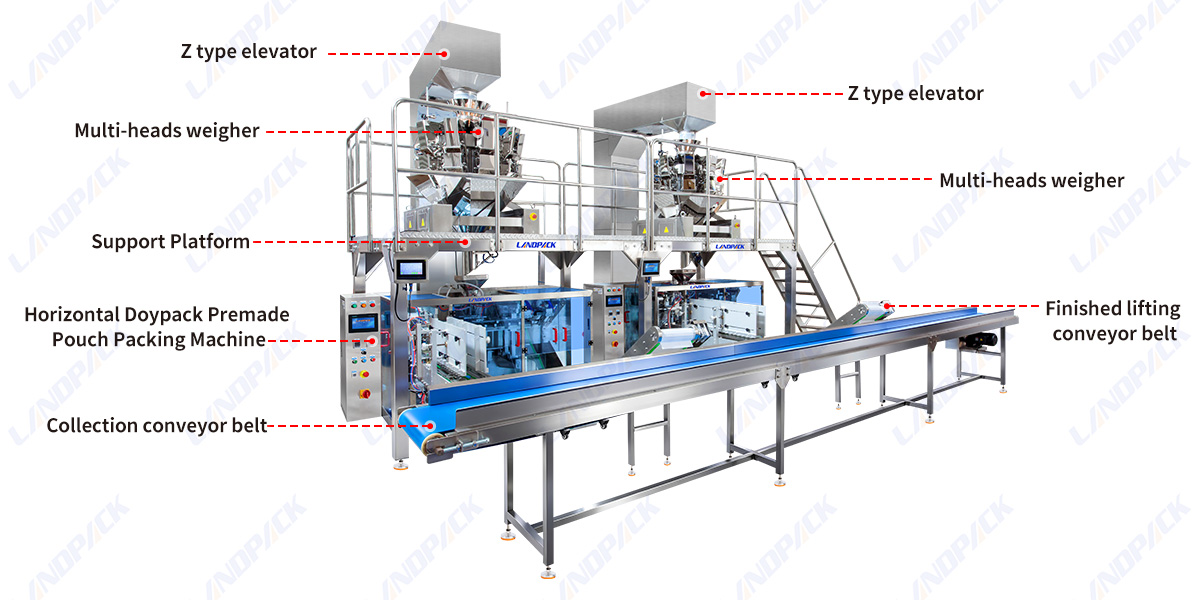

Key Component

Specification

Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	Stand-up Pouch, M-shape Pouch, Flat Pouch, Zipper Pouch, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45 bags/min	20-50 bags/min	20-50 bags/min
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of the product
Dimensions	175012851360mm(LWH)	214013661360mm(LWH)	214013661360mm(LWH)
Collocation	Screw metering, screw elevator

Features:

1. Two horizontal pouch machines operate independently, improving overall production capacity.

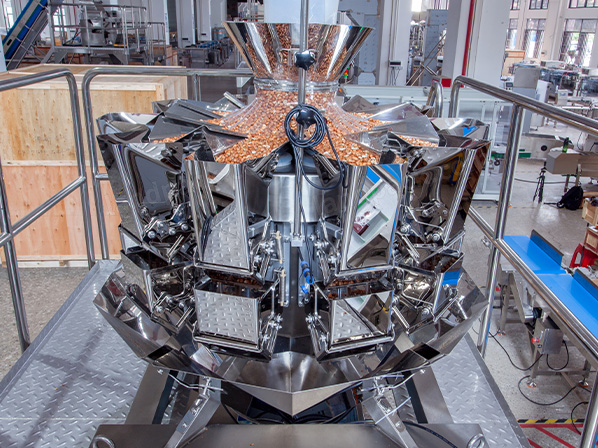

2. Dual 10-head weighers provide accurate filling weight control for each packaging line.

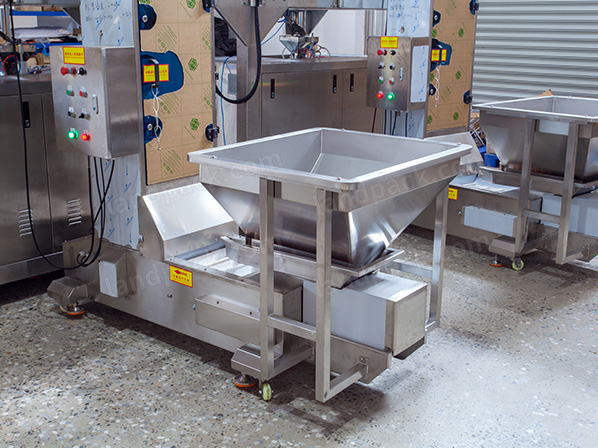

3. Z-type elevators ensure continuous nut feeding and reduce manual loading requirements.

4. Automatic pouch magazine system enables stable premade pouch supply.

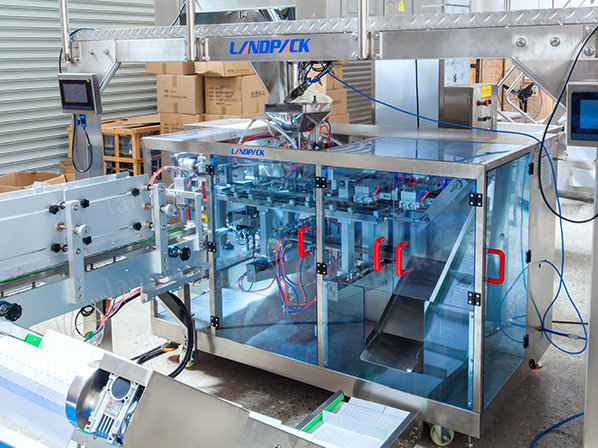

5. Horizontal pouch conveying structure supports smooth filling and sealing of block-bottom bags.

6. Strong sealing system adapts to thick laminated pouches with reliable sealing performance.

7. Date coding system supports batch number, production date and expiry date printing.

8. Dual-line design allows flexible production with different products or package weights.
