| Model | LFGA-022 |
| Filling Speed | 10-20 Bottles / min |
| Bottle diameter | Φ30mm-Φ135mm(customizable) |
| Bottle height | 40mm-200mm(customizable) |
| Control system | PLC |
| Total lines power | 6.8KW |
| Power supply | 220V、50Hz |
| Airconsumption | 0.6m³/min |
| Equipment material | 304 stainless steel |
| Machine Image | Benefits |
![]() |

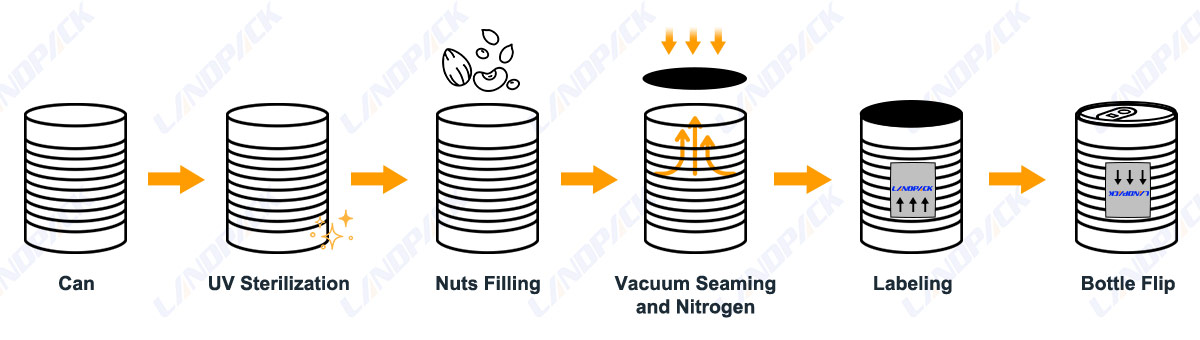

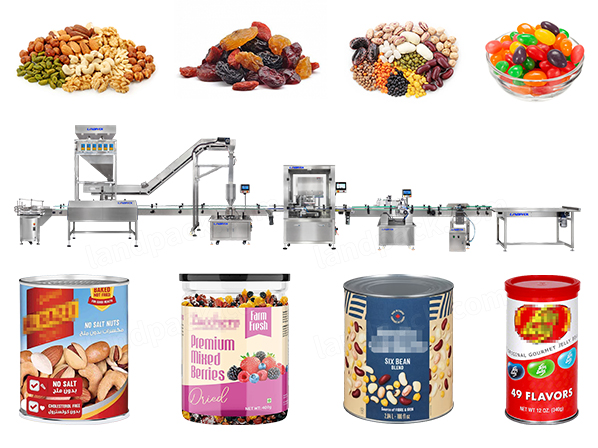

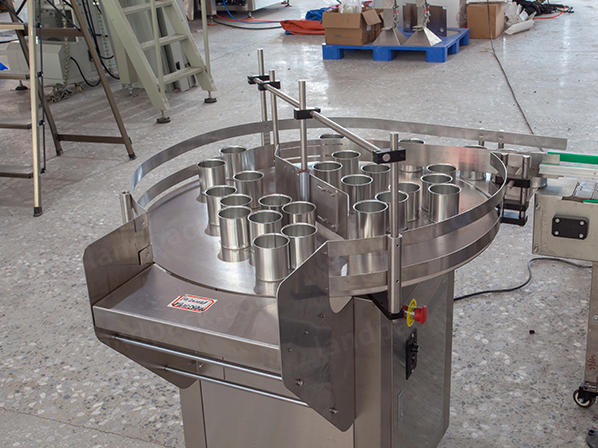

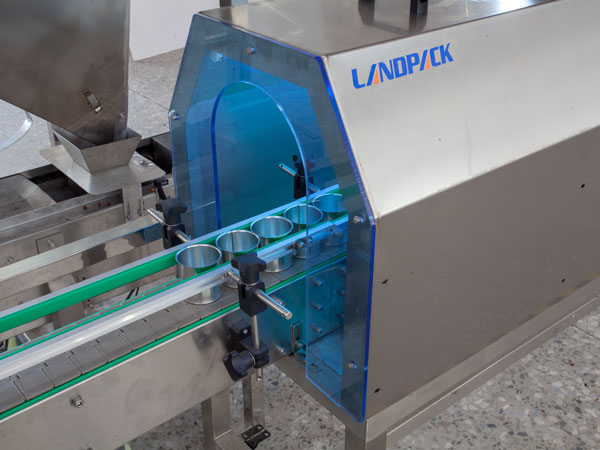

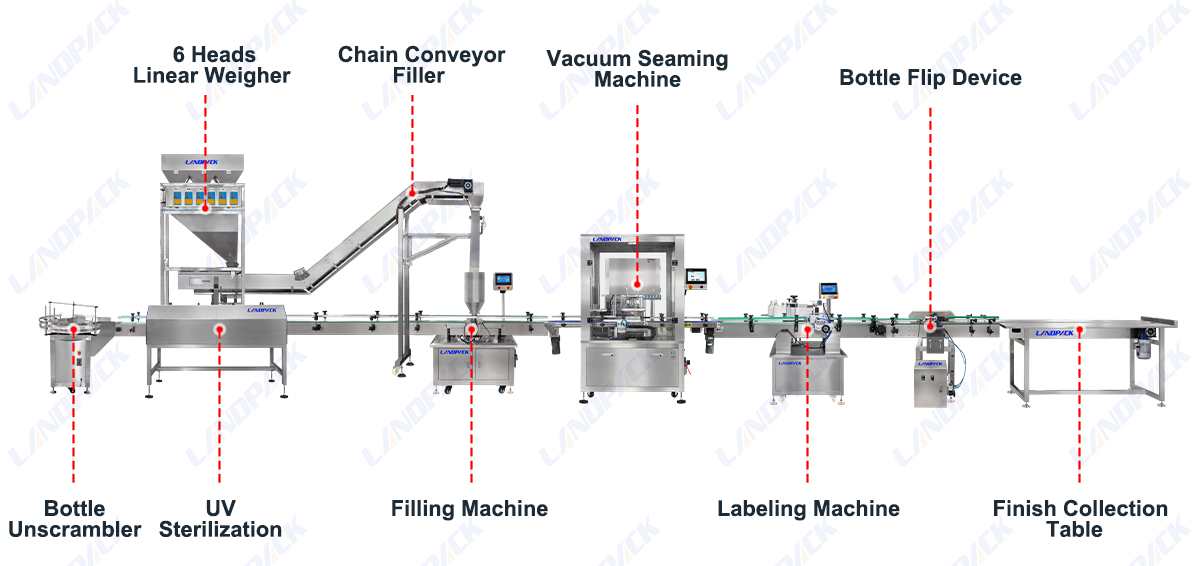

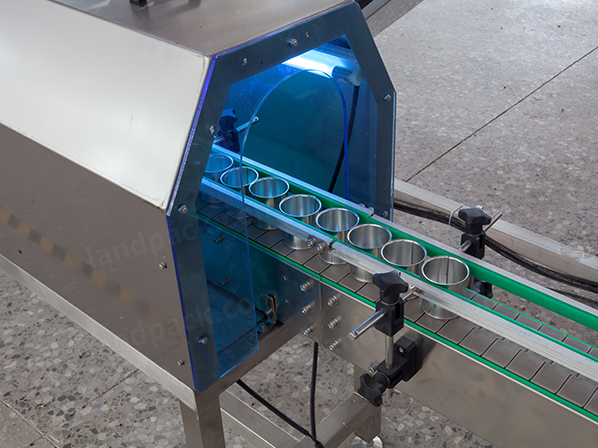

Automated Bottling & Sterilization Flow The line begins with a bottle arranging machine that sorts and feeds containers smoothly, followed by a UV sterilization tunnel that sanitizes bottles before filling. This ensures a clean, food-safe environment for premium nut products. |
![]() |

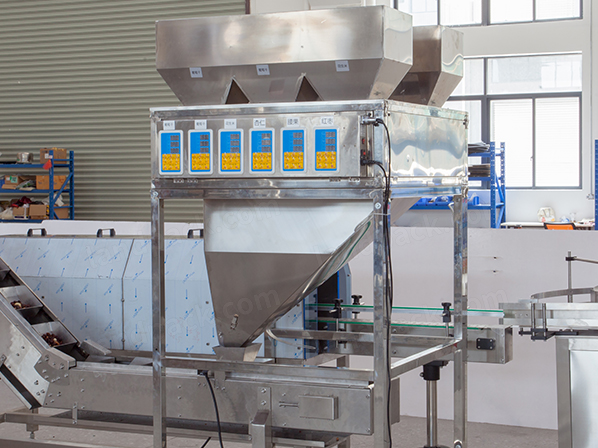

High-Precision Multi-Head Weighing System Equipped with a six-head 999 g weighing system, the line delivers accurate dosing for mixed nuts and granular foods. Each head operates independently to maintain speed and consistency, ideal for products with varied densities and shapes. |
![]() |
Efficient Product Elevation & Continuous Feeding The chain-bucket elevator transports nuts steadily to the filler, preventing breakage and maintaining product integrity. Its design supports continuous, high-capacity production with minimal manual intervention. |
![]() |

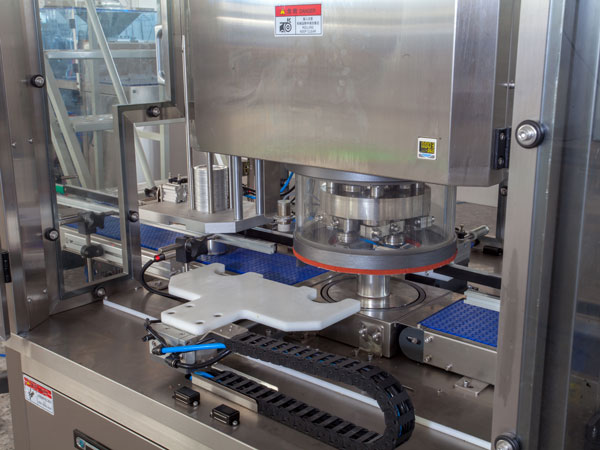

Vacuum Nitrogen Sealing for Long Shelf Life The vacuum nitrogen can sealer removes oxygen and flushes nitrogen into each container, preserving freshness, preventing oxidation, and extending product shelf life—essential for snack and nut applications. |
![]() |

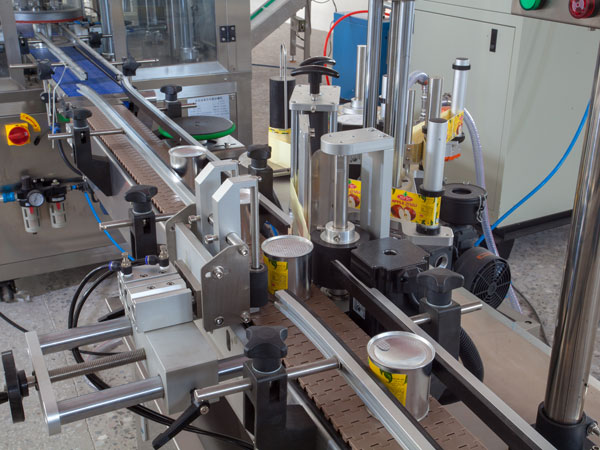

Integrated Labeling & Bottle Handling Mechanisms A round-bottle labeling machine applies labels neatly and consistently, while the flipping mechanism ensures proper bottle orientation for downstream processes. This combination improves packaging appearance and workflow reliability. |
![]() |

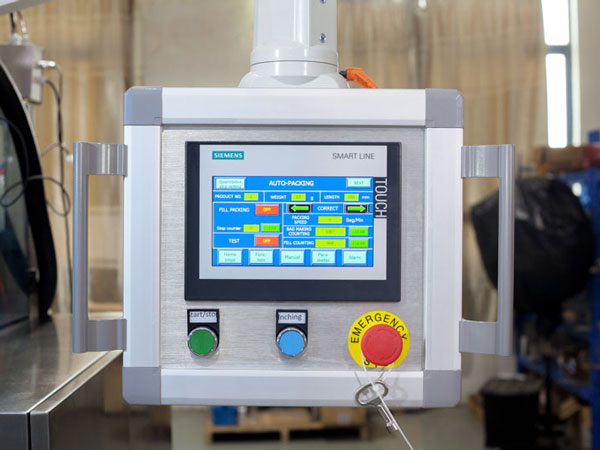

User-Friendly Operation & Clean Final Output The collection platform organizes finished products for easy packing and inspection. The entire line features intuitive controls, easy maintenance, and stable operation, designed for modern, efficient nut production. |
