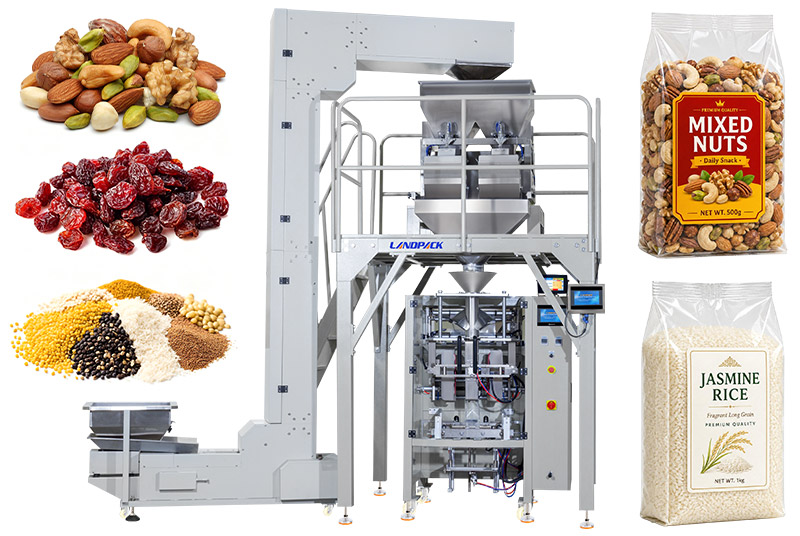

Fully Automatic Vertical VFFS Block Bottom Bag Packaging Machine For Nuts Cashew Peanut

Application:

This Nut Packaging Machine is designed for peanuts, cashews, almonds, pistachios, walnuts, macadamia nuts, mixed nuts, roasted nuts, coated nuts, sunflower seeds, pumpkin seeds, trail mixes, dried fruits, healthy snack blends, granola products, and other free-flowing granular food products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

This nut packaging machine is suitable for block bottom bags, square bottom bags, quad seal bags, gusset bags, pillow bags, stand-up style VFFS bags, laminated film bags, aluminum foil bags, transparent retail bags, and premium packaging types.

Videos Introduction:

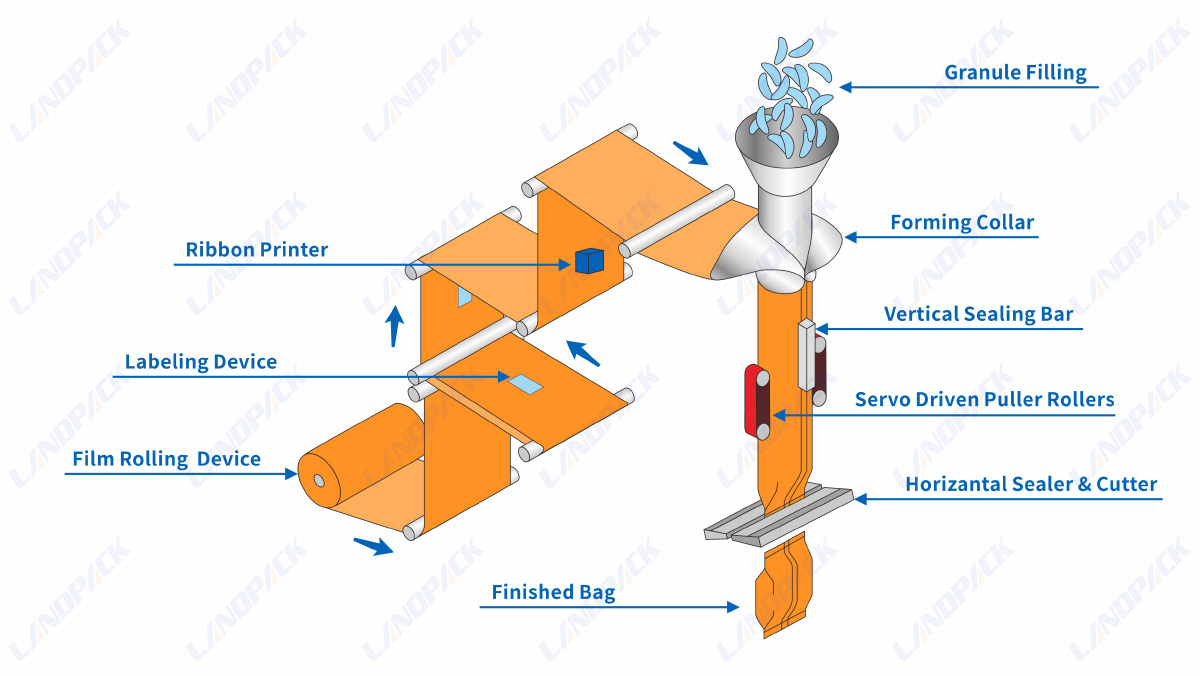

Working Process

1. Product Feeding → Linear Weigher Weighing → Block Bottom Bag Forming → Product Filling → Date Coding → Bag Sealing → Finished Product Output

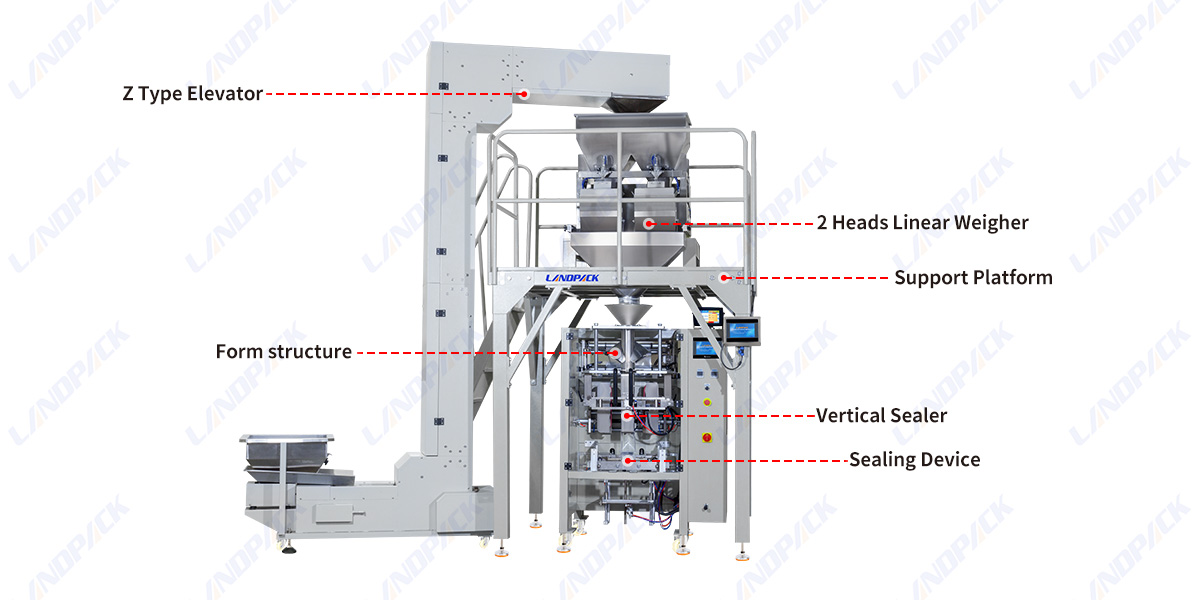

Key Component

Specification

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Features:

1. Z-Type bucket elevator automatically feeds nuts and snack products, reducing manual handling and improving production efficiency.

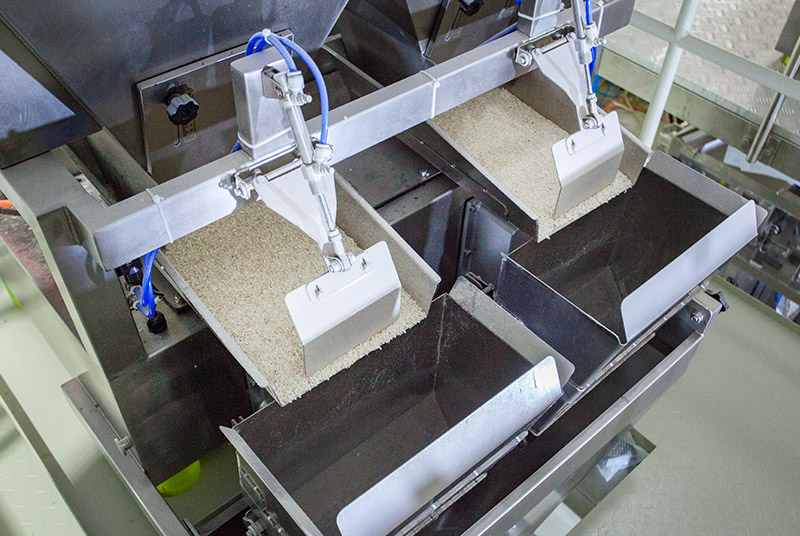

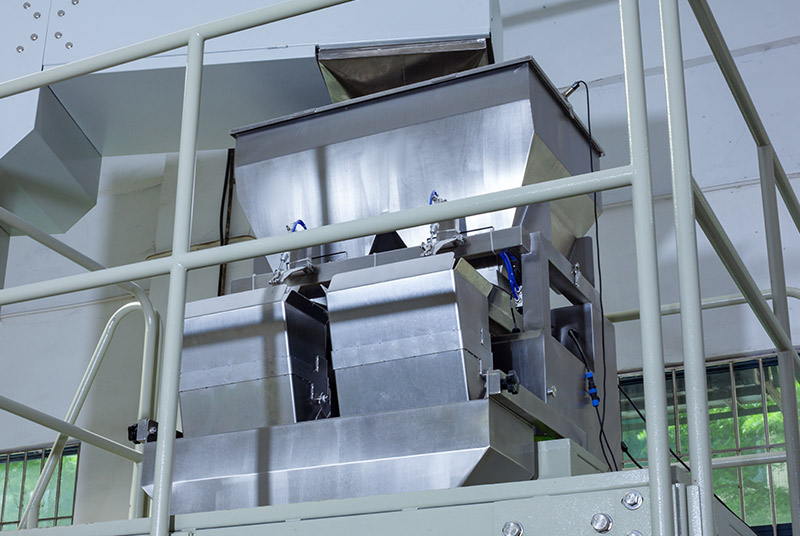

2. Linear weigher provides fast and accurate weighing performance for peanuts, cashews, almonds, mixed nuts, and other granular products.

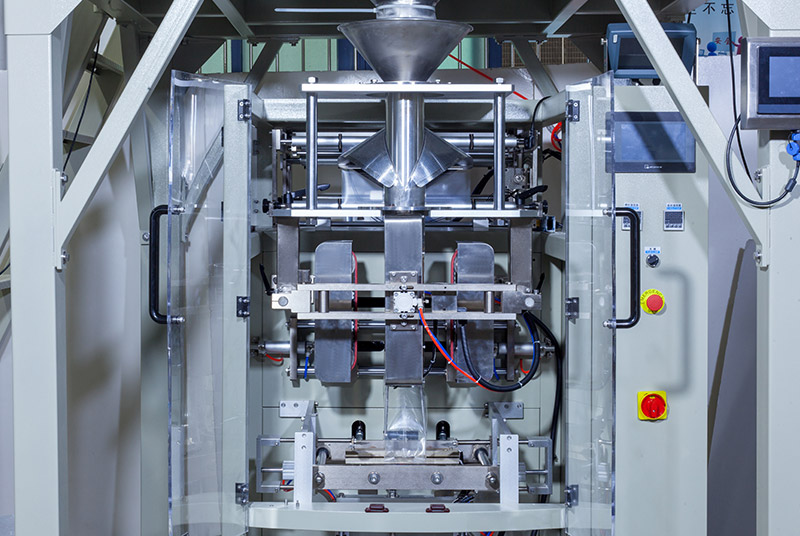

3. Servo-driven film pulling system ensures stable bag forming, accurate bag length, and smooth machine operation.

4. Block bottom bag design creates premium shelf-ready packages with excellent standing performance and retail appearance.

5. Quick-release bag former allows fast cleaning and bag size changeover, reducing production downtime.

6. Independent temperature-controlled sealing system delivers strong and consistent seals for various laminated packaging films.

7. Integrated ribbon date printer supports production date, batch number, and expiry date coding directly on the package.

8. Photoelectric film tracking and film-end detection system ensure precise positioning and reliable operation.
