Frozen Food Packaging Machine Multihead Weigher Vertical Form Fill Seal Packing Machine

Application:

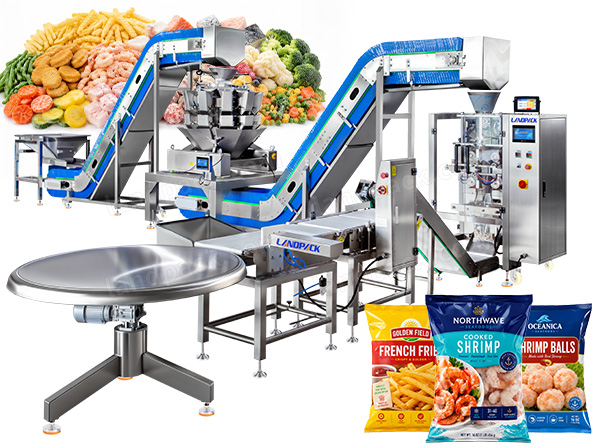

The line combines a skirt-edge inclined feeding conveyor, 10-head combination weigher, LD-520A vertical form fill seal machine, thermal transfer printer, second inclined conveyor, checkweigher and finished-product collecting turntable.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

Application:

It can be used in frozen meat, seafood, prepared food and frozen vegetable production lines where automatic feeding, weighing, bag forming, coding, sealing and weight inspection are required. Such as frozen food, pork meatballs, chicken meatballs, shrimp balls, fish balls, cuttlefish balls, chicken nuggets, sausage pieces, French fries, potato wedges, broccoli florets, mixed vegetables, green beans and frozen seafood mixes.

Videos Introduction:

Working Process

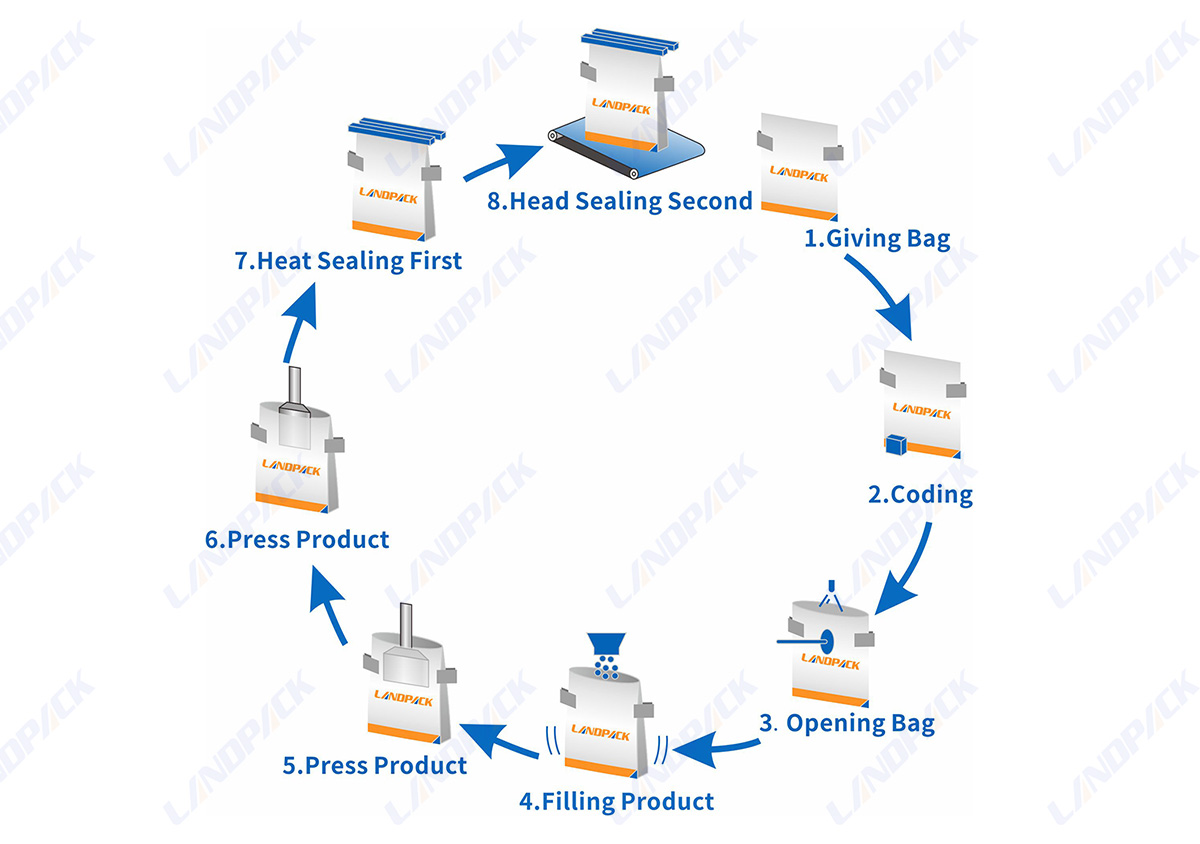

1. Pouch Feeding → Bag Opening → Product Counting → Filling → Weight Checking → Sealing → Date Coding → Finished Bag Output

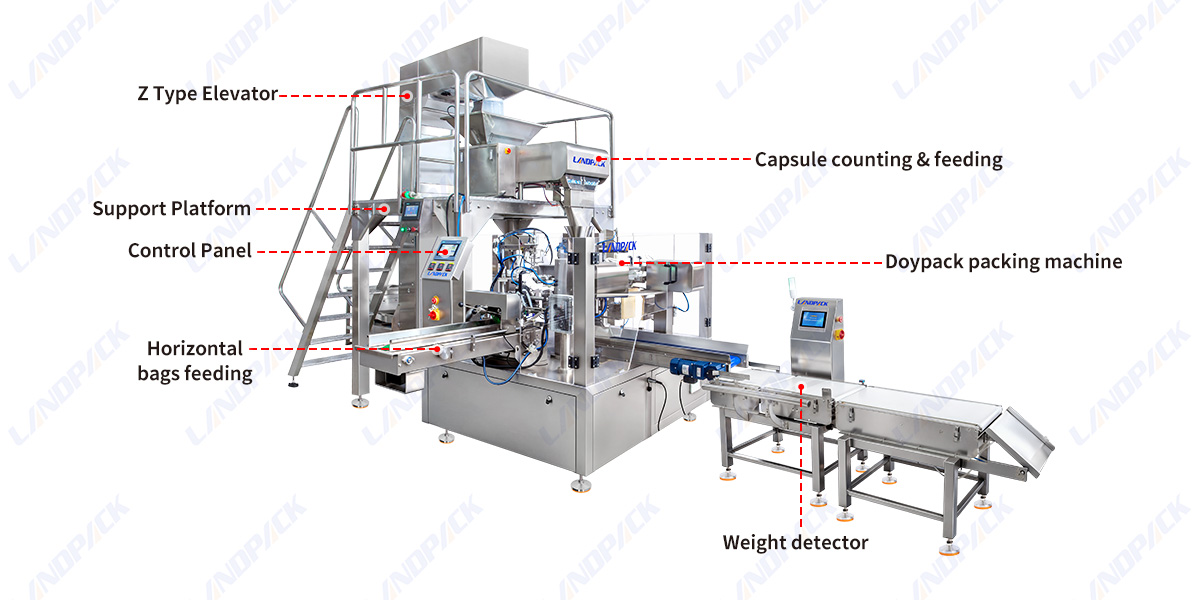

Key Component

Specification

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60 bags/min	5-60 bags/min	5-55 bags/min	5-20 bags/min	5-20 bags/min	5-20 bags/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Features:

1. Full SS304 machine frame handles wet and cold frozen-food production areas

2. Two-stage inclined conveying layout suits factories with limited ceiling height

3. Food-grade PU skirted belts carry frozen products between machine sections

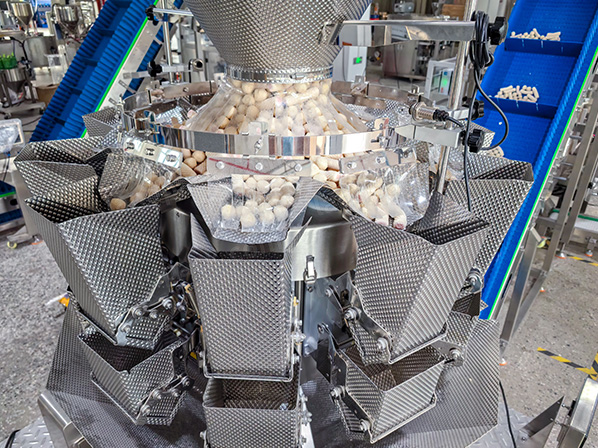

4. 10-head combination weigher portions frozen meatballs and seafood by weight

5. Patterned contact surfaces reduce sticking between frozen pieces and weighing parts

6. Vibrating transition hopper helps products pass into the bag former without piling up

7. Thermal transfer coder prints date, batch, and traceability information on the film

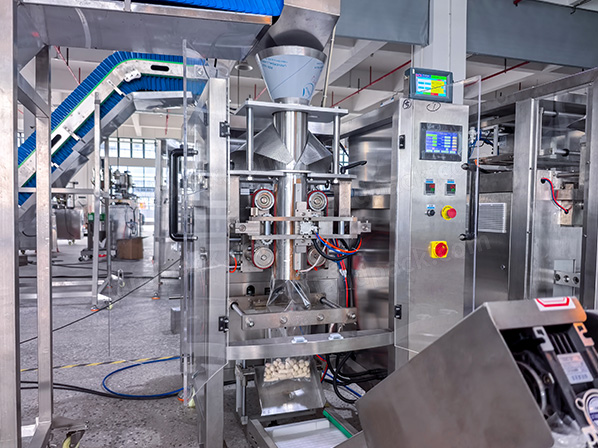

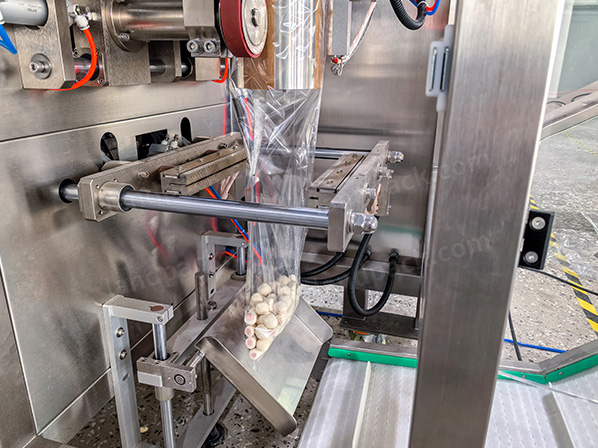

8. Vertical packer forms, fills, seals, and cuts bags directly from roll film

9. Finished-bag conveyor handles heavier frozen packs after sealing

10. Checkweigher checks every finished bag and removes packs outside the set range

11. Collection platform keeps accepted bags together for case packing
