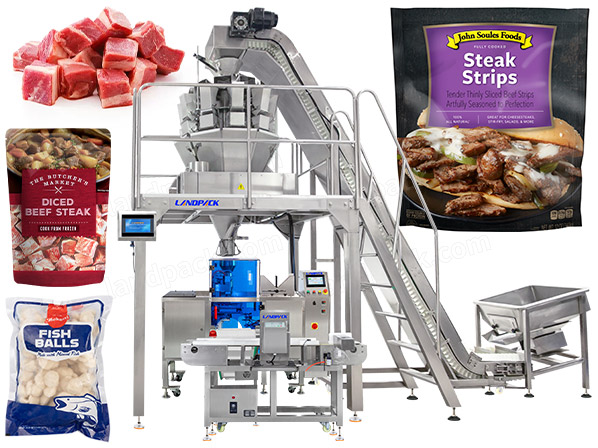

Automatic Frozen Food Mini Doypack Pouch Machine With Metal Detector

Application:

The frozen food packaging machine is ideal for efficiently packaging a variety of frozen foods, including meatballs, shrimp, sliced meat, dumplings, shellfish, chicken wings, beef, fries, tofu puffs, and more. It ensures precise weighing, sealing, vegetable, fruit and preservation to maintain product freshness and quality.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Compact vertical design minimizes floor space, making it ideal for small production areas while maintaining high efficiency.

2. Handles challenging materials like sticky or irregularly shaped products with smooth feeding and precise weighing capabilities.

3. Integrated metal detection ensures food safety compliance by automatically identifying and removing contaminants during packaging.

4. User-friendly touchscreen interface allows quick parameter adjustments (e.g., temperature, speed) and real-time monitoring.

5. Delivers consistent, airtight seals and clean cuts with servo-driven heat control for professional-grade packaging.

6. Stainless steel construction meets hygiene standards, offering durability and easy cleaning for food/pharmaceutical applications.

Application:

The frozen food packaging machine is ideal for efficiently packaging a variety of frozen foods, including meatballs, shrimp, sliced meat, dumplings, shellfish, chicken wings, beef, fries, tofu puffs, and more. It ensures precise weighing, sealing, vegetable, fruit and preservation to maintain product freshness and quality.

Videos Introduction:

Specification:

Model	LDB-200	LDB-300	LDB-430
Bag Material	Multilayer Composite Premade Bag (e.g.: PET/PE)
Premade Bag Type	3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type	Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
Bag Size	70mm≤W<150mm, 70mm≤L≤150mm	80mm≤W≤300mm, 100mm≤L≤300mm	80mm≤W≤300mm, 100mm≤L≤430mm
Speed	5-60 bags/min	5-15 bags/min
Sealing Type	Straight grain, the pitch is 1mm (Optional reticulate)
Sealing Width	10mm (5-20mm can be customized)
Voltage	220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3m³/min (Standard machine, no additional function)
Body Dimension	17706001230mm	17706001230mm	17706001360mm
Machine Weight	300kgs	350kgs	450kgs

Working Process:

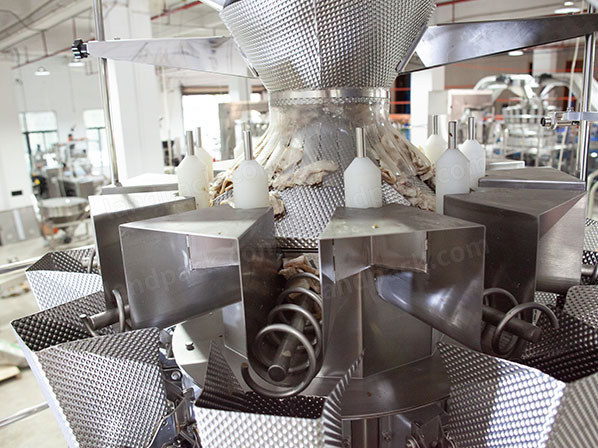

1.Conveys materials to the multi head weigher

2.Inkjet printer prints the information

3.Automatica bag feeding

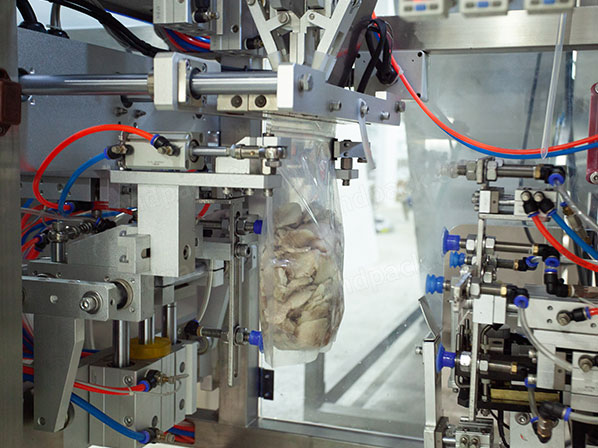

4.Automatica zipper&bag opening

5.Automatica filling

6.Sealing

7.Output

8.Metal detector

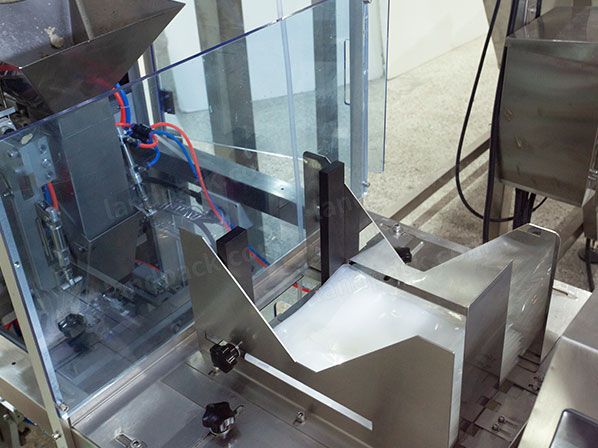

9.Finally collected on the finished product turntable
