Automatic Vertical Frozen Dumpling Meat Food Packing Packaging Machine

Application:

Suitable for packaging many different kinds of products; such as frozen food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.which shape is roll, slice and granule.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

1. PLC control with a color touch screen enables high-precision dual-axis output and completes bag-making, measuring, filling, printing, and cutting in one operation.

2. Separate control boxes for pneumatic and electrical systems reduce noise and enhance circuit stability.

3. Servo motor-driven double-belt film pulling minimizes resistance, ensures neat bag shape, and increases wear resistance.

4. External film release system allows for quicker and easier film installation.

5. Bag deviation can be adjusted directly via the touch screen, making operation simple.

Application:

Suitable for packaging many different kinds of products; such as frozen food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.which shape is roll, slice and granule.

Videos Introduction:

Specification:

Machine Model	LD-620Y	LD-720Y	LD-900Y
Pouch size	W: 130-300mm L: 100-500mm	W: 130-350mm L: 100-600mm	W: 130-380mm L: 100-900mm
Making-bag volume	3000ml	5000ml	7000ml
Filling range	200g-2kg	500g-3kg	1kg-5kg
Power Supply	220V,50/60Hz,3KW	220V,50/60Hz,3KW	220V,50/60Hz,3KW
Packing speed	10-90 bag/min According to the product character
Power	1.5-4.5KW AC220V/380V±10% 3-PHASE 50HZ/60HZ
Film material	BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/AL/PE,PET/PET/ETC.

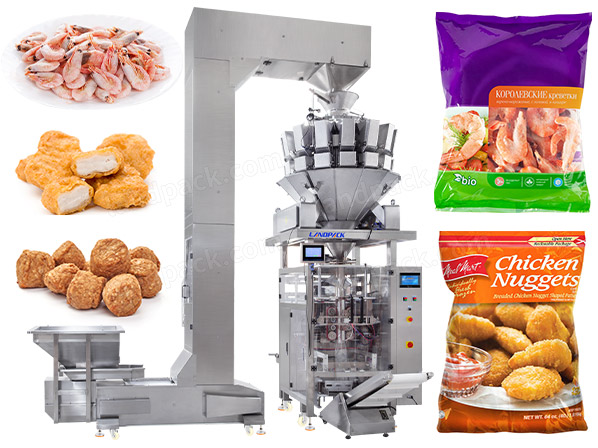

Working Process:

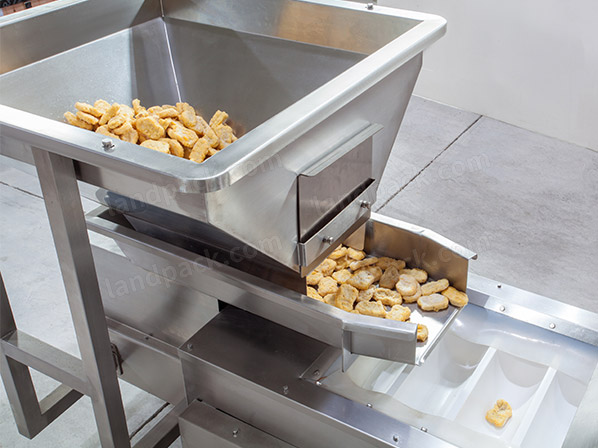

1. Z-type conveyor: transports the frozen chicken nuggets

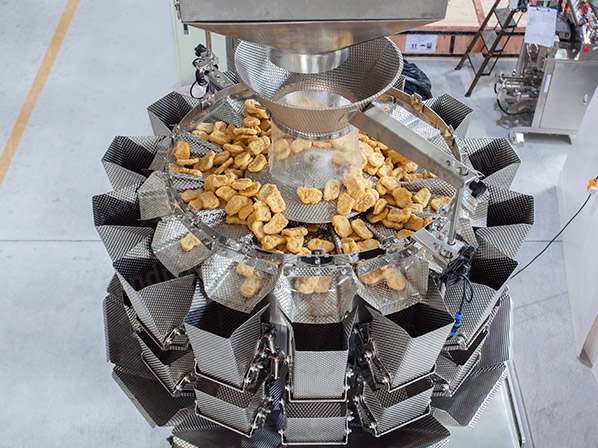

2. Multi-head weigher: Weigh the frozen chicken nuggets

3. Main packer: Pack the frozen chicken nuggets automatically.

4. Finished product conveyor: Collect the finished products from the machine.
