Customized Frozen Food Vertical Packaging Machine

Application:

Suitable for packaging of various sticky products and frozen products, such as chicken nuggets, meat, quick-frozen dumplings, frozen food, various seafood, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Combined Parts:

Features:

1. Automates bagging, filling, sealing, printing, punching and counting to save labor and time.

2. Features computer control with bilingual touchscreen for easy operation without stopping production.

3. Uses intelligent PID temperature control for precise sealing across different laminated films and papers.

4. Supports multiple bag styles including back-seal, side gusset, linked and hole-punched bags.

5. Fully automated process includes bag making, measuring, filling, sealing, counting and printing.

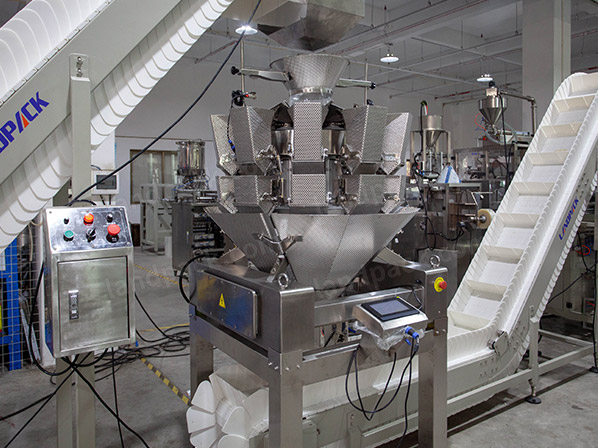

6. Multi-head weighing system ensures filling accuracy for various product types.

7. Secondary feeding system adapts to low ceiling heights in production facilities.

Application:

Suitable for packaging of various sticky products and frozen products, such as chicken nuggets, meat, quick-frozen dumplings, frozen food, various seafood, etc.

Videos Introduction:

Specification:

Model	LD-420	LD-520	LD-720
Film Width	Max.420mm	Max.520mm	Max.720mm
Bag Length	80-300mm	80-350mm	100-500mm
Bag Width	60-200mm	100-250mm	180-350mm
Roll Diameter	Max.320mm	Max.320mm	Max.320mm
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Packing Speed	5-60bag/min	5-60bag/min	5-55bag/min
Power	220V 50/60Hz 2KW	220V 50/60Hz 3KW	220V 50/60Hz 3KW
Machine Size	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1780(W)1350(H)2050mm
Machine Weight	About 650kg	About 680kg	About 750kg
Option Device	Two synchronous belt device, air filling device, angle fold device,automatic rectifying device, hole-punching device, link bag device.

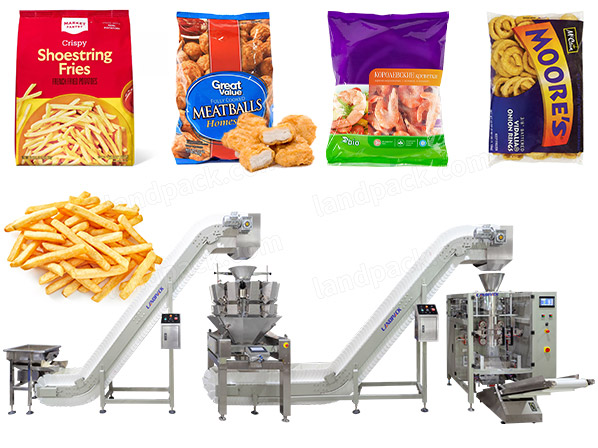

Combined Parts:

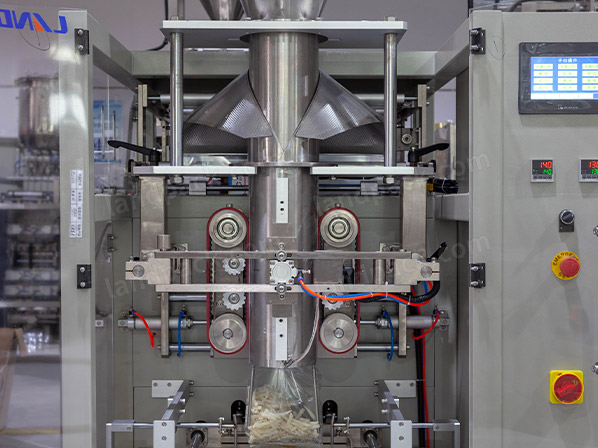

LD series main frame

Screw metering machine

Screw infeed conveyor

Product conveyor
